TANK, SEAT

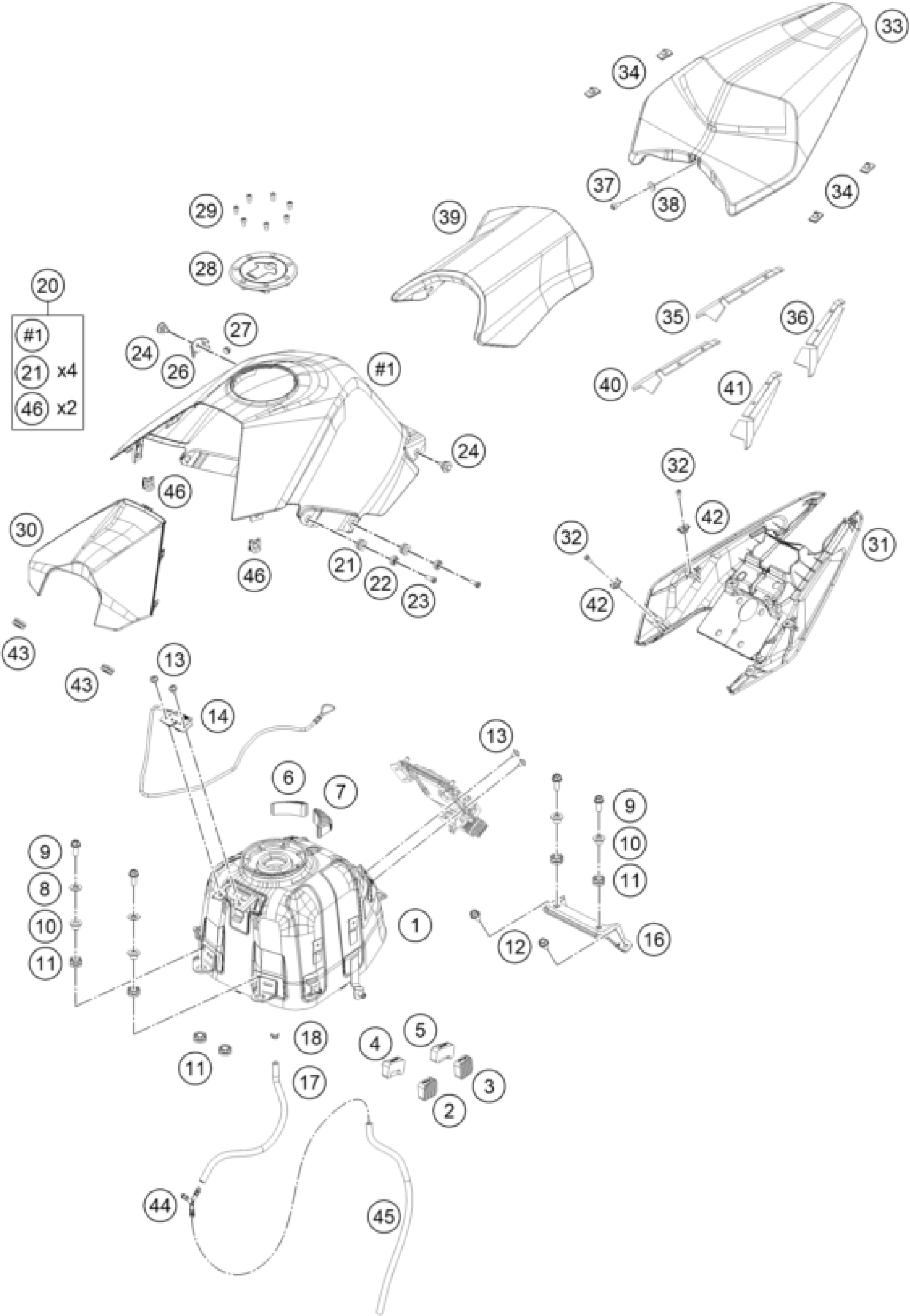

KTM RC 390 WHITE / ABS 2015 TANK, SEAT Diagram
#
4
TANK PAD FRONT R/S
90507011050
$2.05
7
TANK PAD TOP L/S
90507011010
$3.08
9
HH COLLAR SCREW M8X20 SW12
J025080203
$1.49
1
FUEL TANK
90507013100
Unavailable
10
SLEEVE TANK MOUNTING
90507013005
$1.49
11
GROMMET TANK MOUNTING
90507013006
$1.49
12
HH COLLAR SCREW M8X12 SW12
J025080123
$1.49
13
SOCKET HEAD BOLT M6X1X8
90508006004
$1.49
14
LOCK BATTERY CASE CPL.
90508025033
$18.41
16
TANK MOUNTING REAR
90503071000
$7.66
17
HOSE
90507013012
$3.08
18
HOSE CLAMP
90507017000
$1.49
20
TANK COVER BLACK
9050804900033
$105.18
21
RUBBER SLEEVE
90507040001
$1.49
22
WASHER GFN
90508045000
$1.49
23
BOLT SOCKET M6X1XL
90808043001
$1.49
24
SPECIAL SCREW
90107040003
$6.35
26
BRACKET CABLE LID LOCK
90508025070
$1.49
27
GROMMET
90141023003
$1.49
28
TANK CAP
90507008000
Unavailable
29
AH SCREW M5X14 BLACK
J912050151
$1.49
32
SOCKET HEAD BOLT M5X12
90508018001
$1.49
34
SEAT DUMPER SOZIUS SEAT
90507047041
$3.08
30
LID BATTERY BLACK
9050802500033
$12.15
31
UNDER TRAY BOTTOM BLACK
9050801800033
$22.99
33
PILLION SEAT BLACK
90507047000CA
$461.23
2
TANK PAD FRONT L/S
90507011040
$2.05
3
TANK PAD REAR L/S
90507011060
$2.05
43
GROMMET BATTERY BOX
90508024050
$1.49
44
CONNECTOR Y SHAPE
90507015000
$3.08
35
PROTECTION SOZIUSSEAT TOP L/S
90507056000
$1.49
36
PROTECTION SOZIUSSEAT TOP L/S
90507055000
$1.49
37
AH SCREW M6X12
90507047001
$1.49
38
COLLAR UNDER TRAY
90508016060
$1.49
39
SEAT
90507040000
$87.79
40
PROTECTION SOZIUSSEAT DOWN R/S
90507058000
$1.49
41
PROTECTION SOZIUSSEAT DOWN L/S
90507057000
$1.49
42
CLIP NUT M5
90108050001
$2.05
45
TUBE DRAIN 2
90507013013
$3.08
5
TANK PAD REAR R/S
90507011070
$2.05
6
TANK PAD TOP R/S
90507011020
$3.08
8
SLEEVE BATTERY MTG CASE
90511055001
$1.49
