Description

Price

4

THROTTLE GRIP

90802010000

$6.44

5

HAND GRIP L/S

90802039000

$5.70

6

BOLT SOCKET M6X1X14

90511006100

$1.49

7

AH SCREW M8X1.25X30

90501045000

$1.49

8

START-EMERGENCY STOP SWITCH

90511074000

$42.72

9

light switch

90511070000

$50.58

1

UPPER TRIPLE CLAMP w HANDLEBAR

90801034044

$340.80

11

PROTECTION CAP THROTTLE CABLE

90102016000

$2.05

12

CLUTCH CABLE

90802090000

$15.51

15

CLUTCH LEVER CPL.

90502031000

$22.71

16

clutch switch

90511049000

$8.31

10

THROTTLE CABLE

90502091100

$11.59

13

SPECIAL SCREW M5x0,8X13

90511006000

$2.05

14

CLUTCH LEVER

90502042000

$8.31

17

HANDLEBAR WEIGHT

90202004001

$7.28

18

AH SCREW M6X50

J912060503

$2.05

2

HANDLEBAR RC390 RH

90802201100

$28.60

3

HANDLEBAR L/S

90802005000

$28.60

19

Top triple clamp

90501034135

$339.96

20

Screw pan cross M3x0.5

90232014002

$1.49

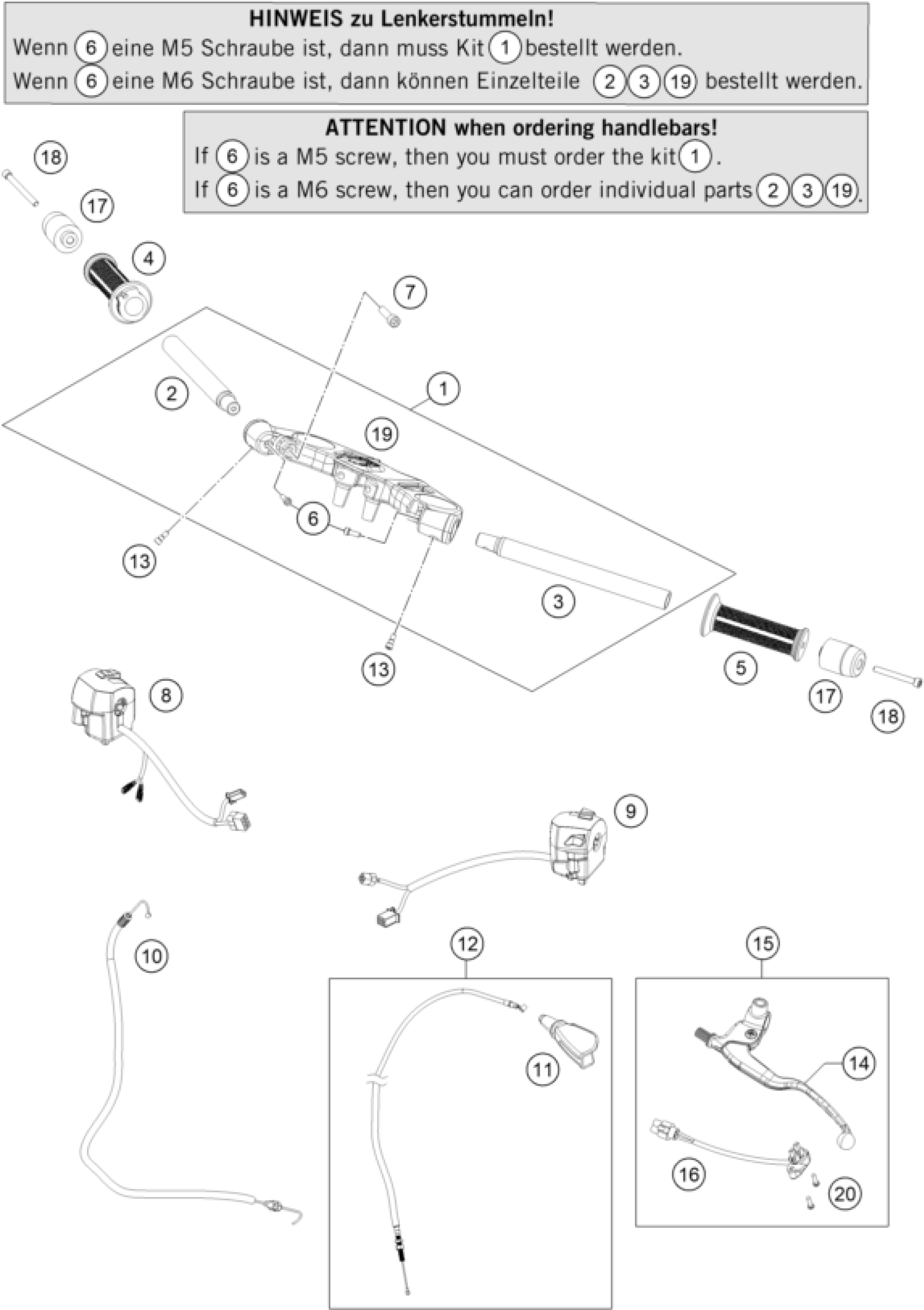

KTM RC 390 WHITE / ABS 2015 HANDLEBAR, CONTROLS Diagram

THROTTLE GRIP

HAND GRIP L/S

BOLT SOCKET M6X1X14

AH SCREW M8X1.25X30

START-EMERGENCY STOP SWITCH

light switch

UPPER TRIPLE CLAMP w HANDLEBAR

PROTECTION CAP THROTTLE CABLE

CLUTCH CABLE

CLUTCH LEVER CPL.

clutch switch

THROTTLE CABLE

SPECIAL SCREW M5x0,8X13

CLUTCH LEVER

HANDLEBAR WEIGHT

AH SCREW M6X50

HANDLEBAR RC390 RH

HANDLEBAR L/S

Top triple clamp

Screw pan cross M3x0.5
