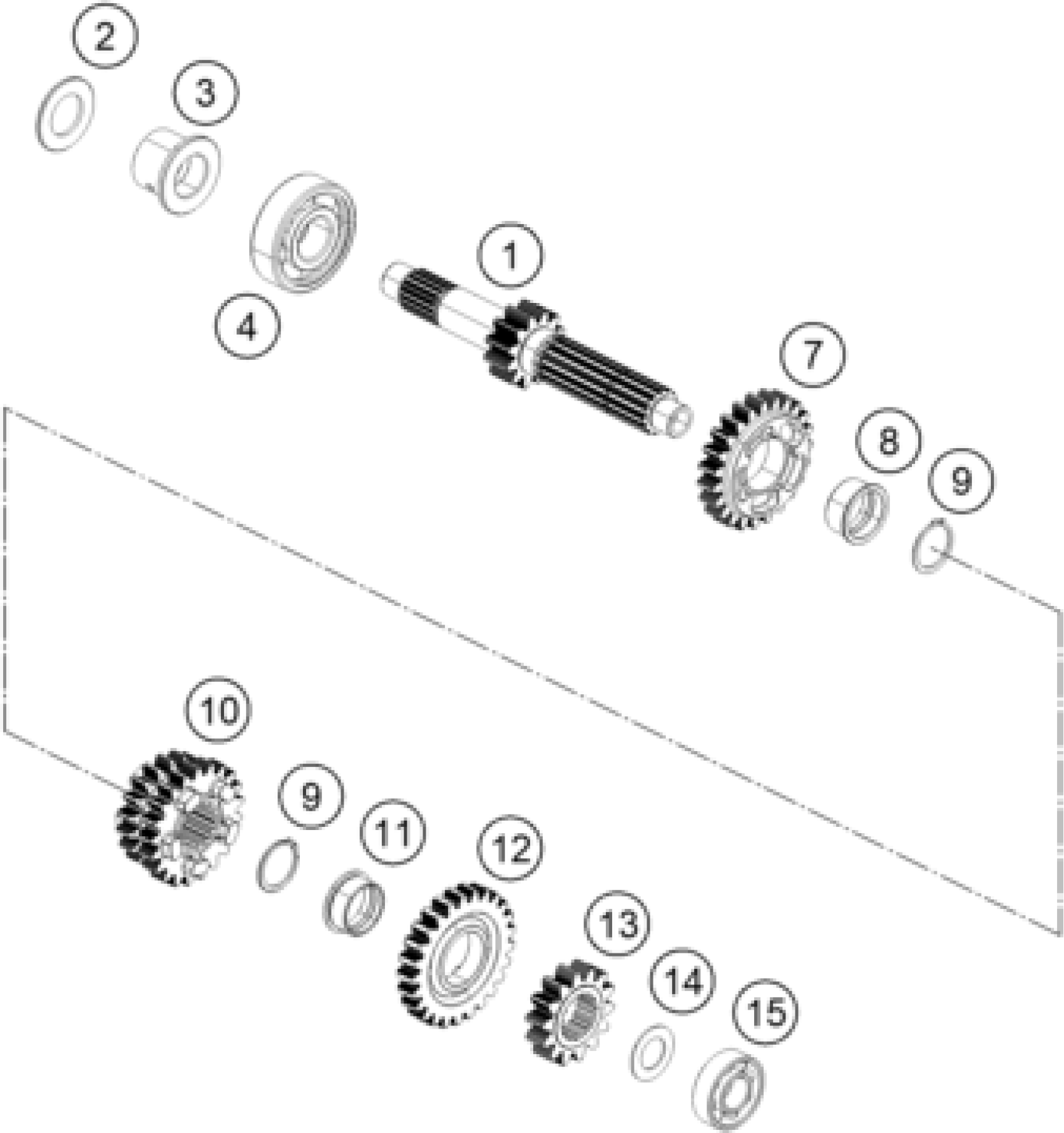

KTM RC 390, white 2020 TRANSMISSION I - MAIN SHAFT Diagram

#

Description
Price

1

MAIN SHAFT

90233001000

$138.28

2

WASHER

90232020000

$1.49

3

COLLAR BUSH

90232016000

$8.59

4

DEEP GROOVE BALL BEARING 6304

J625063040

$13.55

7

GEAR 5TH DRIVE

90233005000

$33.00

8

COLLAR BUSH

90233005001

$5.51

9

CIRCLIP 20,5X1,2

J471020123

$1.49

10

GEAR 3RD/4TH DRIVE

90233003000

$43.28

11

COLLAR BUSH

90233006001

$5.23

12

GEAR 6TH DRIVE

90233006000

$32.81

13

GEAR 2ND DRIVE

90233002000

$18.97

14

WASHER TRUST 2ND DRIVE

90233036000

$1.49

15

BALL BEARING 15X35X11-C3-1

J625062122

$16.35
