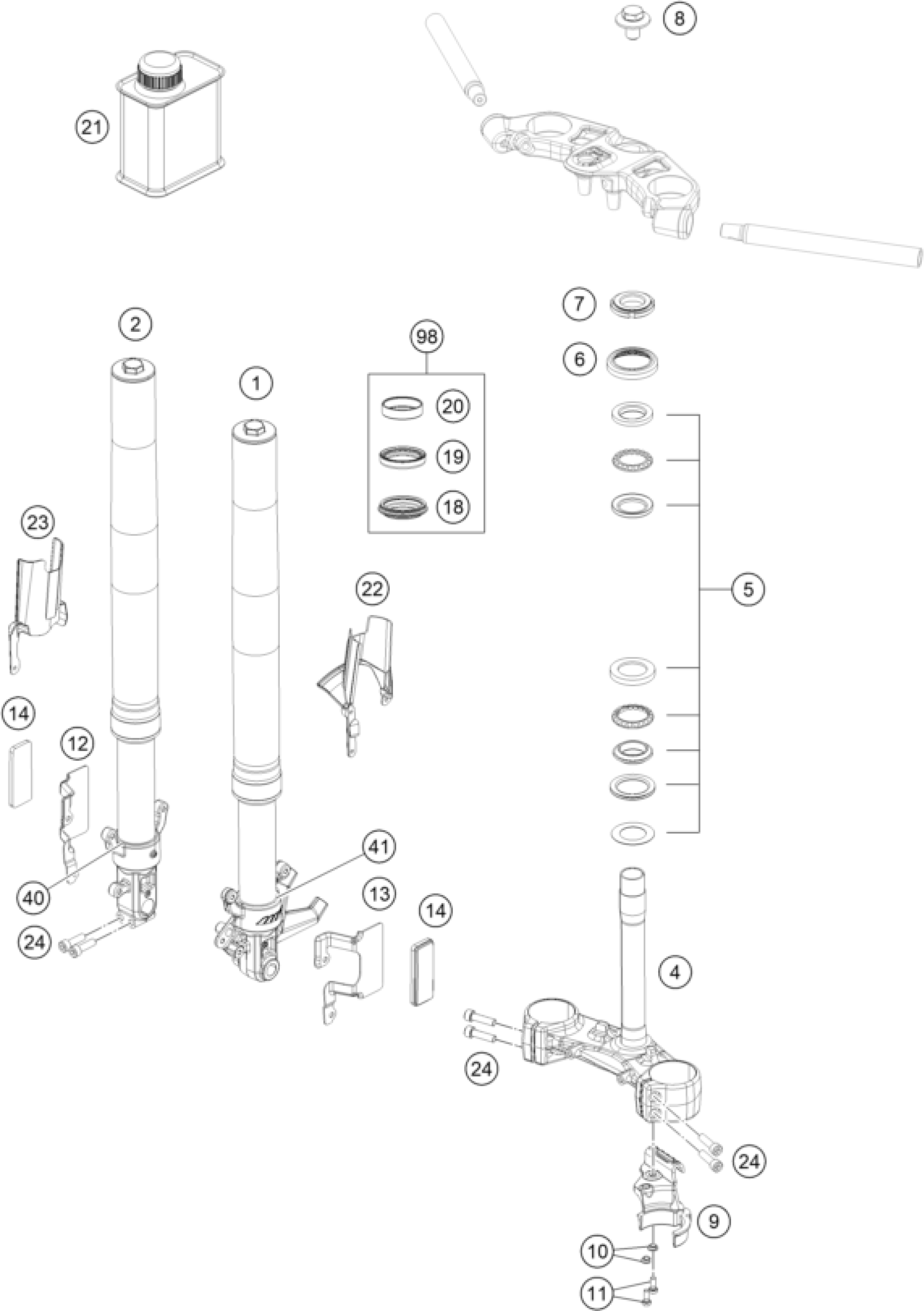

KTM RC 390, white 2020 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

leg assembly left - heavy duty

93801001100

Unavailable

2

Leg assembly right - heavy dut

93801002100

Unavailable

24

AH SCREW M8X1.25X30

90501045000

$1.49

4

Lower triple clamp cpl.

9010103210033

$434.11

5

STEERING HEAD BEARING-KIT

90101080044

Unavailable

6

protection cap

90101086000

$3.08

7

adjusting ring steering head

90101036000

$5.88

8

steering head screw

90501044000

$13.92

9

HOSE CLAMP

90113055000

$7.28

10

sleeve for hose clamp

90113055010

$1.49

11

AH SCREW M6X15 10.9

J021060156

$1.49

12

BRACKET SIDE REFLECTOR FR R/S

90512181000

$4.11

13

BRACKET SIDE REFLECTOR FR L/S

90512081000

$5.23

14

SIDE REFLECTOR FRONT

90512082000

$5.23

18

Dirt scarper SKF 43mm black

43570624

$16.73

19

Shaft seal SKF 43x52,9x11,4 bl

43570623

$16.63

20

Guide bushing 43x47x12

43570618

$11.68

21

Fork Fluid Viscosity 4.0 5L

48601166S1

$149.59

22

Protector fork LH

93601092000

$8.41

23

Protector fork RH

93601093000

$7.94

40

Axle clamp and fork pipe right

93501007000

$237.95

41

Axle clamp and fork pipe left

93501006000

$291.24

98

REP. KIT FORK KPL.

90101000010

Unavailable
