Partiron

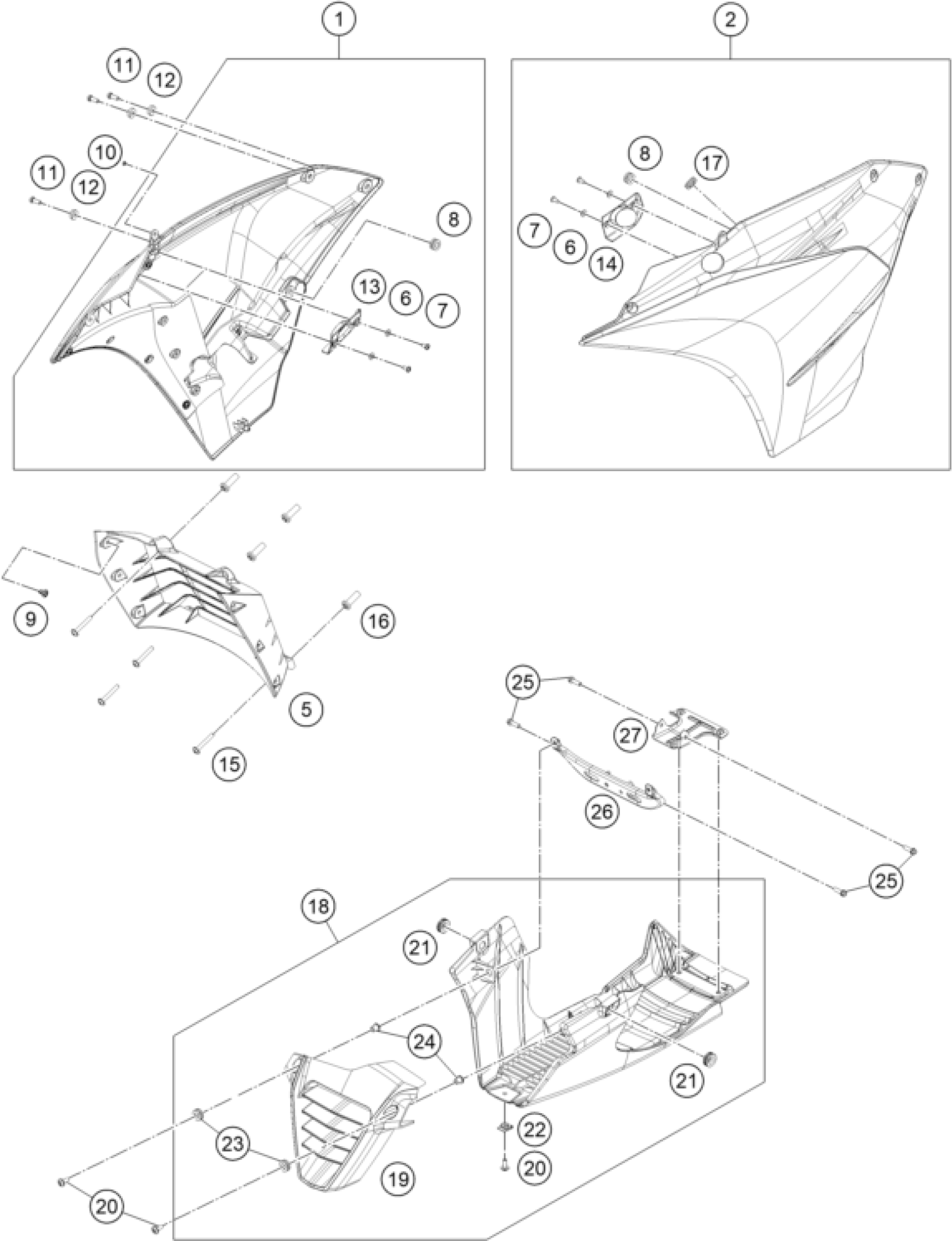

KTM RC 390, white 2020 COVER Diagram

#

Description
Price

1

ASLY SD FAIRING RH RC390 MY20

93808051044AB

Unavailable

2

ASLY SD FAIRING LH RC390 MY20

93808050044AB

Unavailable

5

AIR INTAKE

90508011000

$11.87

6

WASHER D=5,5 BLACK

90514007010

$1.49

7

SCREW K50X12

90508041010

$1.49

8

RUBBER SLEEVE

90507040001

$1.49

9

EXPANDING RIVET

90114062001

$5.98

10

SOCKET HEAD BOLT M6X1X8

90508006004

$1.49

11

BOLT SOCKET M6X1XL

90808043001

$1.49

12

SPECIAL WASHER

90508046000

$4.11

13

FLASHER BLIND COVER R/S

90508054050

Unavailable

14

FLASHER BLIND COVER L/S

90508054000

$2.05

15

AH SCREW M6X42

90508006002

$1.49

16

BUSH RADIATOR MTG

90503007001

$3.08

17

GROMMET

90508010060

$1.49

18

Belly pan assly

9380802003330

$76.01

19

BELLY PAN

93808020100

$17.57

20

SPECIAL SCREW M6X1X16

90808043000

$1.49

21

GROMMET SIDE FAIRING

90508055010

$1.49

22

clip nut

90103097000

$4.11

23

GROMMET BELLY PAN

93808026100

$1.49

24

SLEEVE

93808027000

$2.05

25

HH COLLAR SCREW M6X20 SW10

J025060203

$1.49

26

BRACKET BELLY PAN FRONT

93808026001

$8.50

27

BRACKET BELLY PAN REAR

93808027001

$5.23
