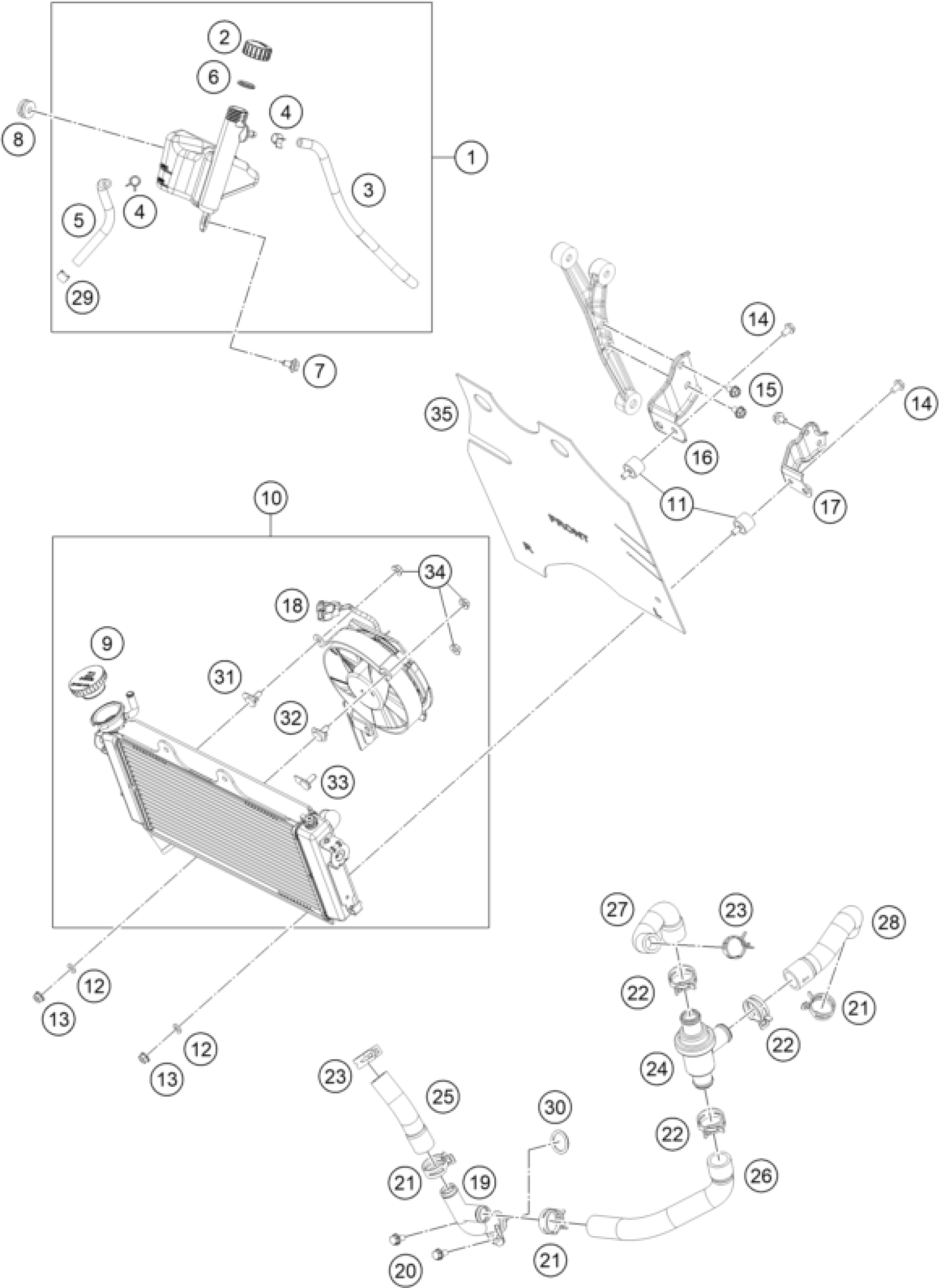

KTM RC 390, white 2020 COOLING SYSTEM Diagram

#

Description
Price

1

TANK ASSEMBLY EXPANSION

93535065033

Unavailable

2

PLUG F. EXPANSION TANK

90135066000

$3.08

3

TUBE DRAIN

90507013008

$2.05

4

CLAMP 10MM

90107018011

$2.05

5

PIPE TANK EXPANSION-RADIATOR

J600000615100

Unavailable

6

COMPENSATING TANK O-RING

90102055000

$1.49

7

SPECIAL SCREW M6X12 FLANGED

90135074000

$2.05

8

GROMMET EXPANSION TANK

90135065050

$1.49

9

RADIATOR CAP

90135016100

$17.20

10

Radiator cmpl.

28135010033

$517.89

11

silentbloc M6

90235001001

$5.23

12

WASHER SPRING B6

J127060003

$1.49

13

FLANGED NUT M6 WS10 SELF LOCK.

J926060000

$2.05

14

HH COLLAR SCREW M6X8 SW10

J026060083

$1.49

15

HH COLLAR SCREW M6X10 SW10

J025060103

$1.49

16

BRACKET RADIATOR L/S

90803001183

$2.05

17

BRACKET RADIATOR R/S

90803001083

$2.05

18

radiator fan assembly

93535141044

$191.76

19

COOLANT PIPE T

90635071033

$31.78

20

Hex collar screw M6X14

J025060141

$1.49

21

hose clamp D26

90135020001

$3.08

22

HOSE CLAMP D28

90135020003

$3.08

23

HOSE CLAMP D23

90135020000

$3.08

24

THERMOSTAT

90135017000

$33.56

25

COOLING HOSE RADIATOR-PIPE ''T

90835024030

$7.56

26

HOSE COOLANT THERM. TO T-PIPE

90235024010

$13.74

27

COOLING HOSE THERMOSTAT

90835024020

$8.31

28

HOSE COOLANT ENGINE - THERM.

90235025000

$10.84

30

O-RING 18,5X3

J770018530

$2.05

31

BRACKET FAN MOUNTING 1

90835041001

$2.05

32

BRACKET FAN MOUNTING 2

90835041002

$2.05

33

BRACKET FAN MOUNTING 3

90835041003

$2.05

34

FLANGED NUT

90835041004

$2.05

35

shield

93505290000

$5.51

29

Spring clip 9.5

J300000801000

$1.49
