Description

Price

4

THROTTLE GRIP

93702010033

$7.28

5

HAND GRIP L/S

90802039000

$5.70

6

Handlebar mount kit right

93801845244

Unavailable

7

Handlebar mount kit left

93801844244

Unavailable

8

START-EMERGENCY STOP SWITCH

93511074000

$220.93

9

light switch

90511070000

$50.58

11

BOOT CLUTCH LEVER

93802016000

$2.05

12

CLUTCH CABLE

90802090000

$15.51

13

HH collar screw M6x25 TX30

0025060256

$3.08

14

FOLDING LEVER CLUTCH

90502931044

$122.39

15

CLUTCH LEVER CPL.

93502031000

$60.11

16

clutch switch

90511049000

$8.31

19

Top triple clamp 35mm

9380183413533

Unavailable

20

HH collar screw M6x30 TX30

0025060306

$3.08

1

HH collar screw M8x25

0025080256

$2.05

3

distance tube

93801834003

Unavailable

10

HH collar screw M6x50 TX30

0025060506

$3.08

17

Ignition key position indicato

93801834004

Unavailable

21

Screw pan cross M3x0.5

90232014002

$1.49

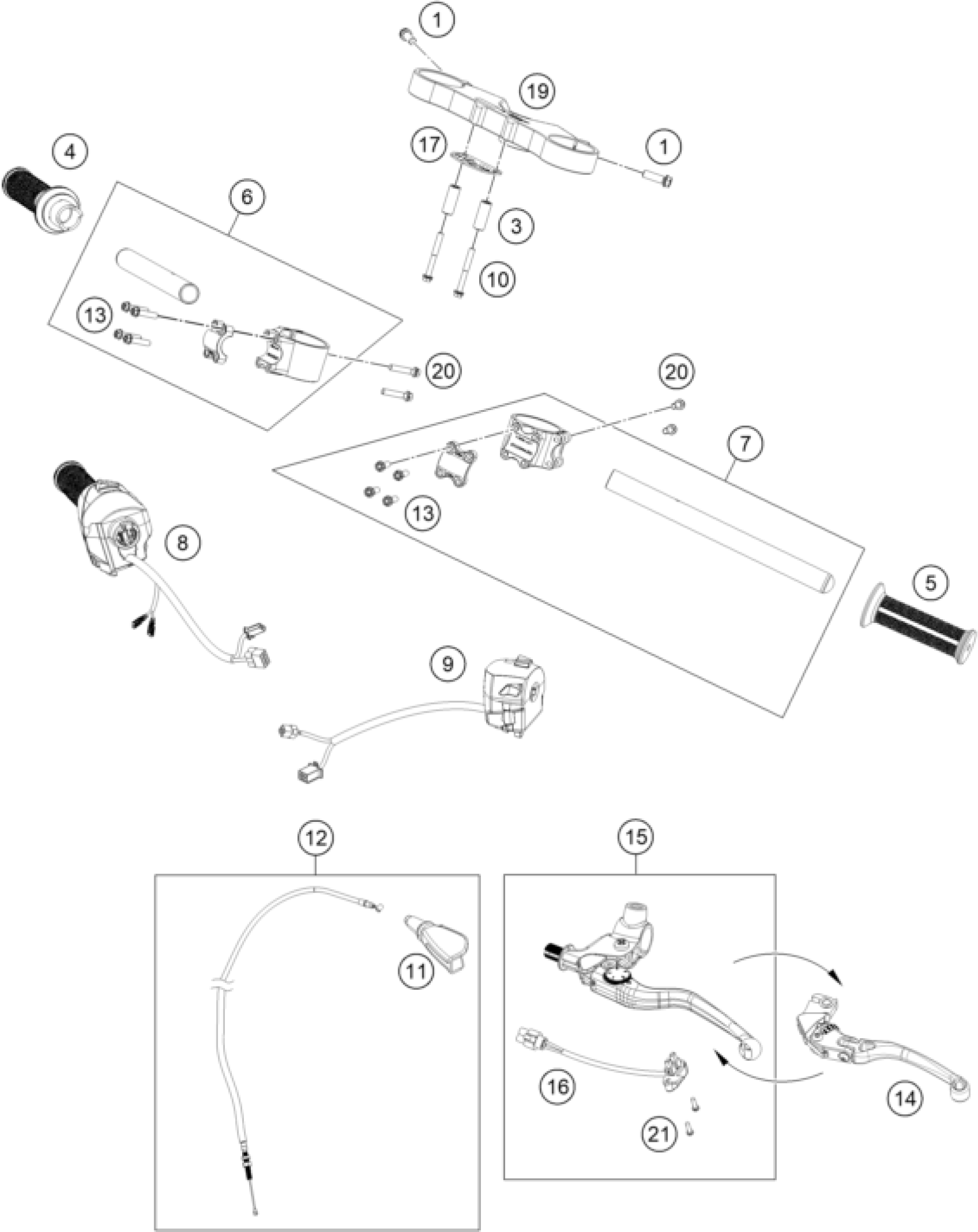

KTM RC 390 R, black 2018 HANDLEBAR, CONTROLS Diagram

THROTTLE GRIP

HAND GRIP L/S

Handlebar mount kit right

Handlebar mount kit left

START-EMERGENCY STOP SWITCH

light switch

BOOT CLUTCH LEVER

CLUTCH CABLE

HH collar screw M6x25 TX30

FOLDING LEVER CLUTCH

CLUTCH LEVER CPL.

clutch switch

Top triple clamp 35mm

HH collar screw M6x30 TX30

HH collar screw M8x25

distance tube

HH collar screw M6x50 TX30

Ignition key position indicato

Screw pan cross M3x0.5
