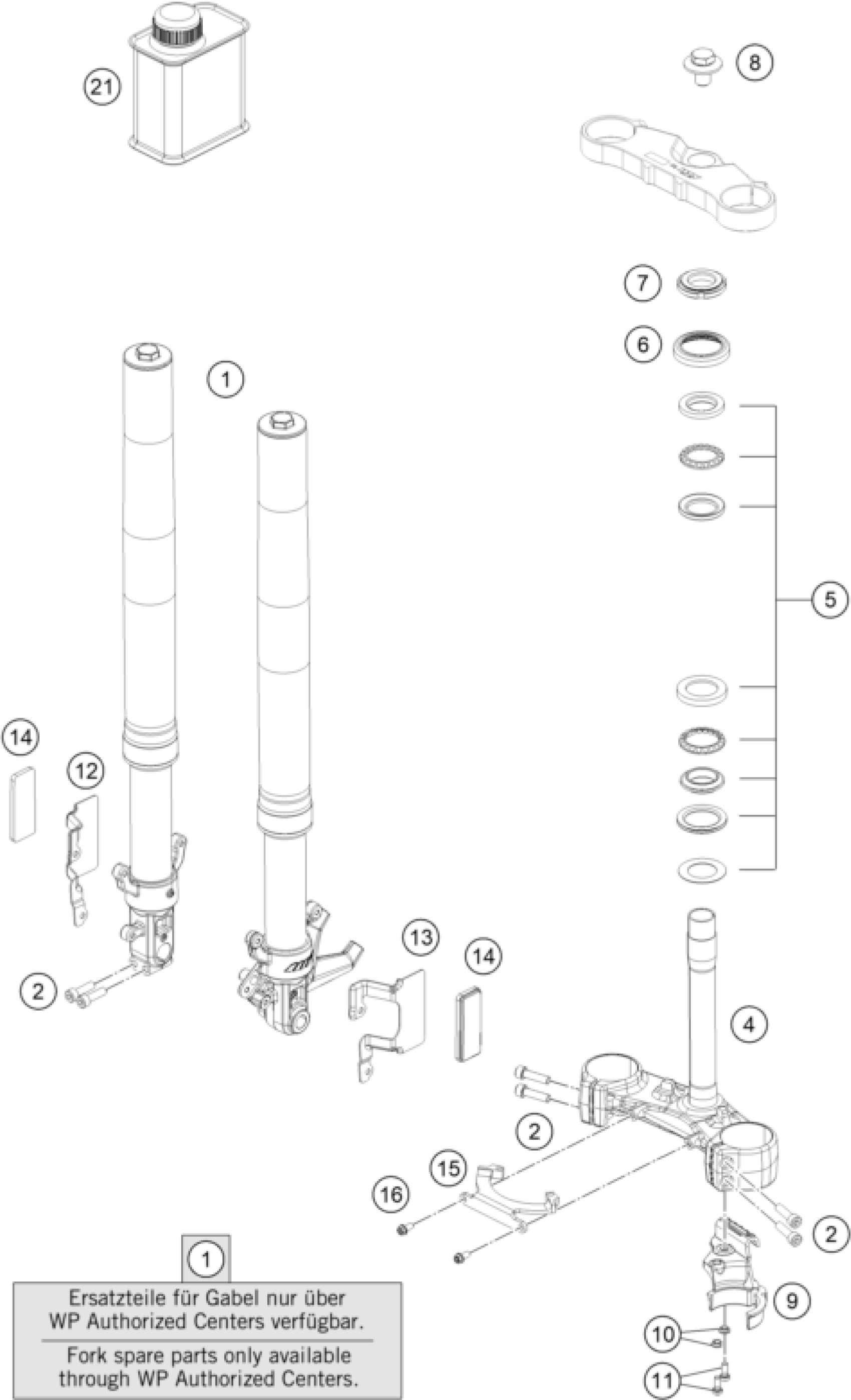

KTM RC 390 R, black 2018 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

Cup Fork KTM RC 390

05182R10SET

Unavailable

2

AH SCREW M8X1.25X30

90501045000

$1.49

4

Lower triple clamp cpl.

9010103210033

$434.11

5

STEERING HEAD BEARING-KIT

90101080044

Unavailable

6

protection cap

90101086000

$3.08

7

adjusting ring steering head

90101036000

$5.88

8

steering head screw

90501044000

$13.92

9

Hose clamp

93013055000

$3.08

10

sleeve for hose clamp

90113055010

$1.49

11

AH SCREW M6X15 10.9

J021060156

$1.49

12

BRACKET SIDE REFLECTOR FR R/S

90512181000

$4.11

13

BRACKET SIDE REFLECTOR FR L/S

90512081000

$5.23

14

SIDE REFLECTOR FRONT

90512082000

$5.23

21

Fork Fluid Viscosity 4.0 5L

48601166S1

$149.59

15

Steering stop

93801846010

Unavailable

16

HH collar screw M6x12 TX30

0025060126

$3.08
