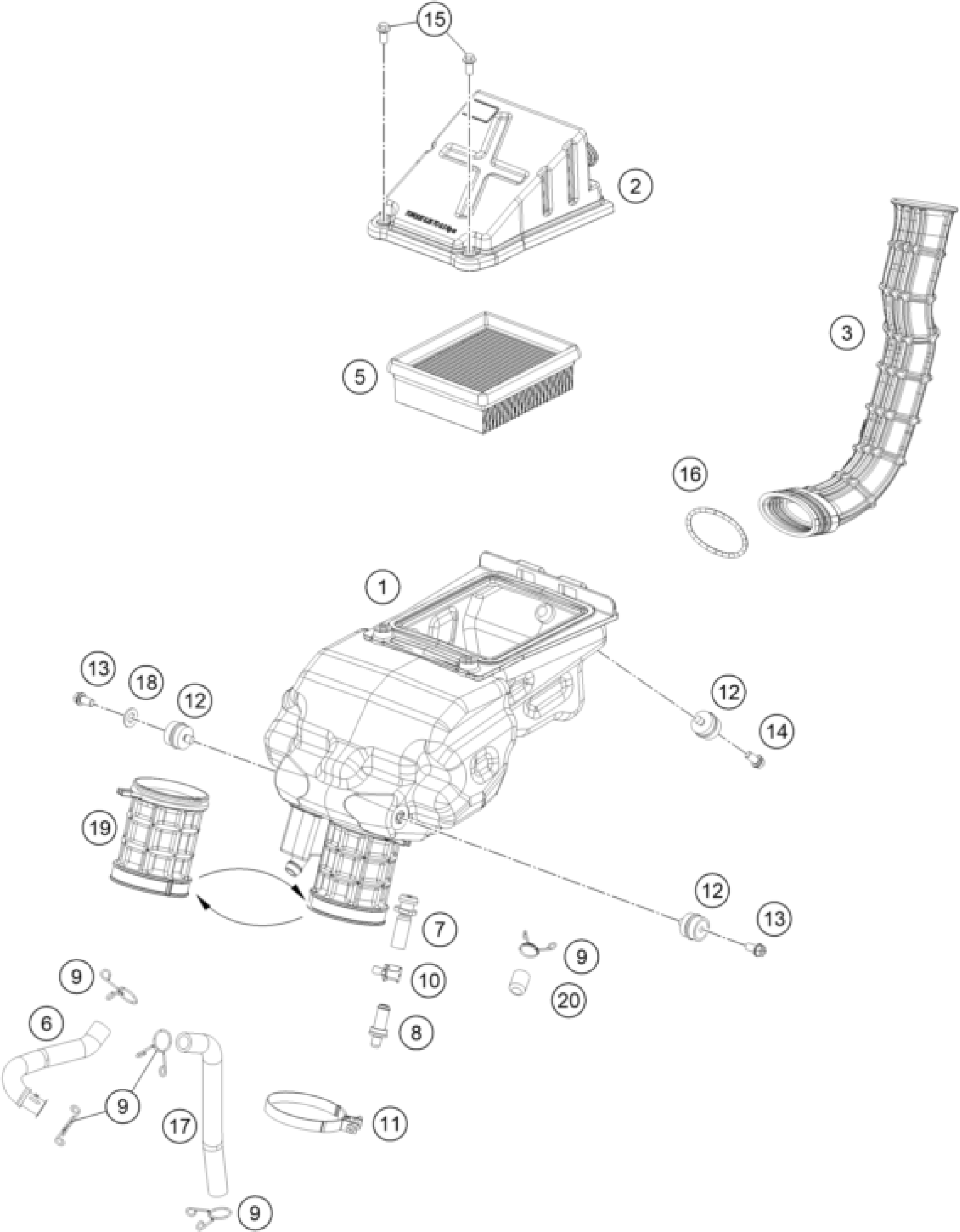

KTM RC 390 R, black 2018 AIR FILTER Diagram

#

Description
Price

1

Air box cpl.

93806015044

$125.66

2

Filter cover top cpl.

93506005033

$11.49

3

AIR INTAKE

90506040000

$16.73

5

AIRFILTER

90106015000

$24.68

6

BREATHER TUBE

93830087000

$2.05

7

DRAIN TUBE

93806020000

$2.05

8

PLUG DRAIN

93806021000

$1.49

9

CLAMP 16MM

90607017000

$5.23

10

HOSE CLAMP

90106000004

$2.05

11

hose clamp

90241002010

$5.23

12

SILENT BLOCK AIRFILTER

90106001007

$5.88

13

HH COLLAR SCREW M6X8 SW10

J025060086

$1.49

14

HH COLLAR SCREW M6X12

J025060129

$1.49

15

Panhead screw M6

93008037000

$1.49

16

GARTER SPRING

90506028000

$5.23

17

OIL RETURN TUBE

93838034100

$23.37

18

WASHER 8,2X16X1,5

J125080003

$1.49

19

connecting tube L90

90206821000

Unavailable

20

Plug

93030089000

Unavailable
