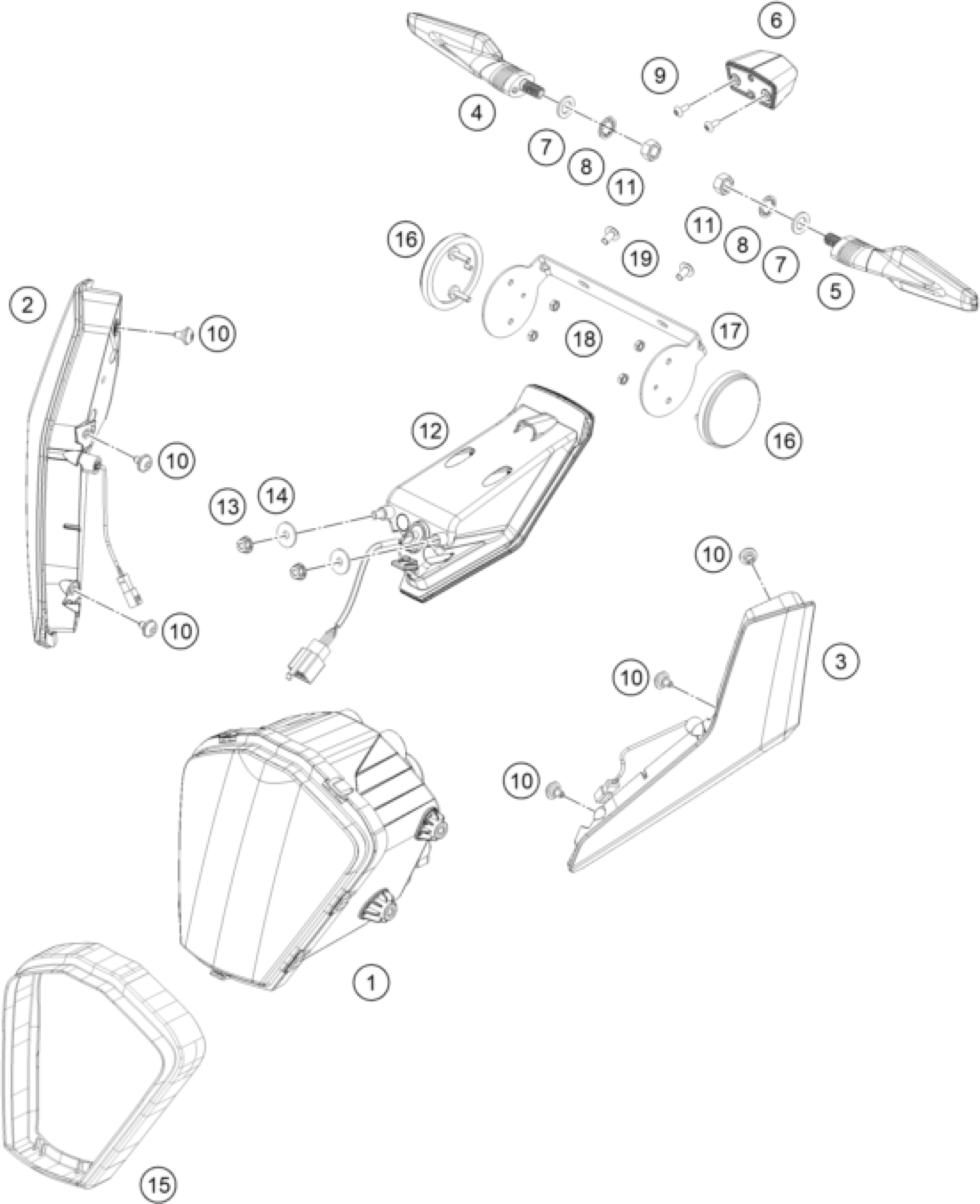

KTM RC 390, blue - B.D. 2024 LIGHTING SYSTEM Diagram

#

Description
Price

1

lamp head

94814001000

$721.34

2

Front right turn signal

94514026000

$135.57

3

Front left turn signal

94514025000

$146.88

4

indicator rear RH

94814525000

$88.16

5

indicator rear LH

94814526000

$88.16

6

LICENSE PLATE ILLUMINATION

90114047000

$26.55

7

Washer M10

J125100009

$1.49

8

Toothed washer, M10

J06797100183

$1.49

9

CROSS PAN SCREW 4X12 PH

J081040121

$1.49

10

Screw button head step M5x6.5

J900000500900

$1.49

11

Hex nut, M10

J934100001

$1.49

12

Tail light

94514040000

$154.64

13

FLANGED NUT M6 WS10 SELF LOCK.

J926060000

$2.05

14

PLAIN WASHER

90814044000

$1.49

15

beading lamp head

94814001050

$5.23

17

BRACKET SIDE REFLECTOR REAR

90212581000

$6.91

16

SIDE REFLECTOR REAR

90212582000

$5.23

18

Hex collar nut, M5

J06923050053

$1.49

19

screw truss-M6X1XL 16Xblack

93014098000

$1.49
