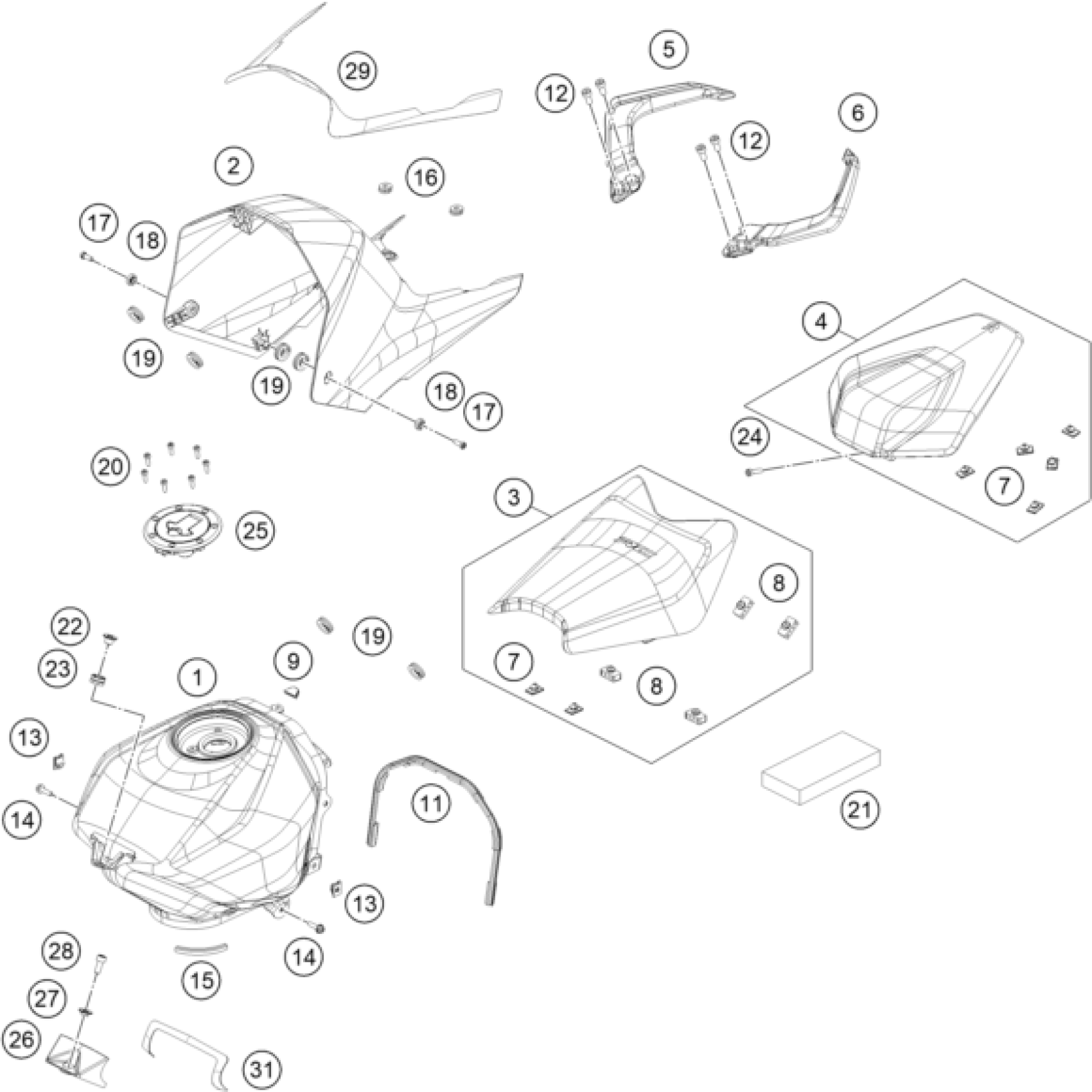

KTM RC 390, blue - B.D. 2024 TANK, SEAT Diagram

#

Description
Price

1

Fuel tank preass.

94507013000HC

Unavailable

2

TANK COVER ATLANTIC BLUE MATT+

94508049000HCA

$147.25

3

SEAT ASSEMBLY FRONT

94807040000

Unavailable

4

SEAT ASSEMBLY PILLION

94807047000

Unavailable

5

GRAB HANDLE RH

94512909000C1

Unavailable

6

GRAB HANDLE LH

94512908000C1

Unavailable

7

SEAT DUMPER SOZIUS SEAT

90507047041

$3.08

8

Seat cowl pad

93007040010

$3.08

9

Plastic caps

94507013030

$1.49

11

Fuel tank, edge protection

94507013010

$4.48

12

Set screw w.hexagon socket M8x

J900000802200

Unavailable

13

CLIP NUT M6

90105017000

$1.49

14

Bolt-Flange-Kad ST-D DIA-06 L-

J025060221

$1.49

15

BEADING TANK LH

90507012000

$1.49

16

Rubber bushing

93008019010

$1.49

17

BOLT SOCKET M6X1XL

90808043001

$1.49

18

BUSHING FRONT FENDER

90808010050

$4.11

19

DAMPING RUBBER I RADIATOR PROT

90108060001

$1.49

20

AH SCREW M5X14 BLACK

J912050151

$1.49

21

Tool set

95829099000

$44.68

22

SLEEVE TANK MOUNTING

90507013005

$1.49

23

GROMMET TANK MOUNTING

90507013006

$1.49

24

Hexagon socket screw, M6X25

J912060256

$1.49

25

CAP TANK FUEL

94507008000

$78.53

26

COVER BRACKET TANK

94508062000

$2.80

27

COLLAR

J800000800400

$1.49

28

hexagon socket screw M8X30

J912080303

$1.49

29

Tape

94507025020

$2.05

31

TAPE

94507025010

$1.49
