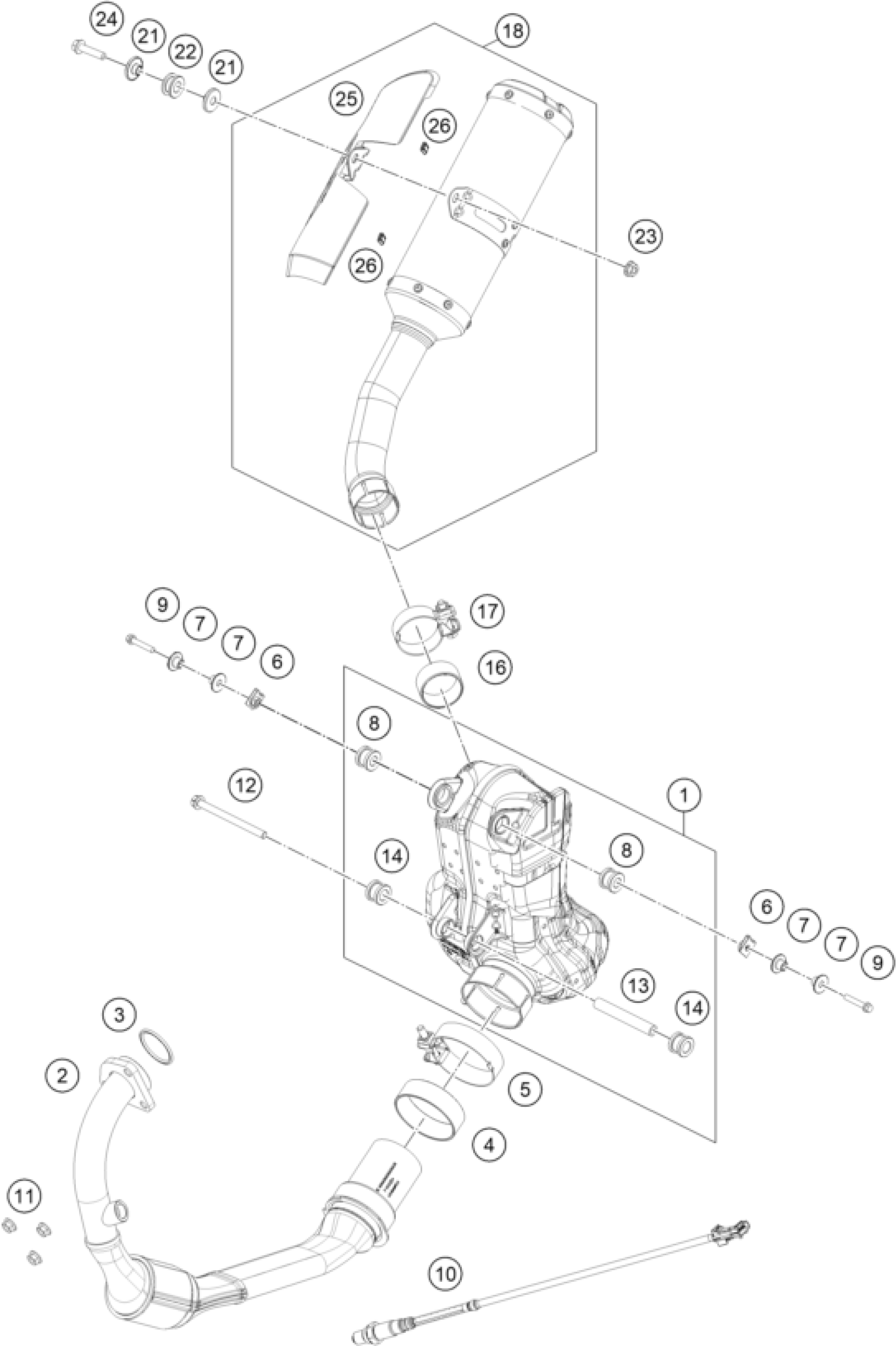

KTM RC 390, blue 2024 EXHAUST SYSTEM Diagram

#

Description
Price

1

ASSEMBLY PREMUFFLER

28105050044

$369.13

2

PIPE ASSEMBLY A

94305007031

$1,039.71

3

GASKET EXHAUST

90105004100

$5.98

4

GASKET EXHAUST

94305050172

$6.82

5

Exhaust clamp

94305051000

$14.30

6

clip nut

90103097000

$4.11

7

muffler mounting spacer bushin

90205086001

$2.05

8

damper, bottom

90205068000

$2.05

9

BOLT SILENCER MTG

90105000002

$1.49

10

Oxygen sensor

94341090000

$100.69

11

Hex collar nut M6

J926080003

$1.49

12

HH COLLAR SCREW M8X105 SW12

J027081053

$2.05

13

muffler mounting tube

90105084000

$4.11

14

damper, bottom

90105068100

$1.49

16

Exhaust flange gasket, muffler

94305050071

$8.31

17

Exhaust pipe clamp

95805051010

$11.87

18

MUFFLER ASSEMBLY SECONDARY

94505083000

Unavailable

21

BUSH MUFFLER

93805095000

$4.11

22

DAMPER MUFFLER

93805096000

$1.49

23

nut hex flange-M8x1.25xcl8xdac

J692080006

$1.49

24

Hex collar screw M8x40

J900000804001

$1.49

25

SHIELD ASSEMBLY MUFFLER

94505011100

Unavailable

26

GROMMET MUFFLER SHIELD

93805011003

$1.49
