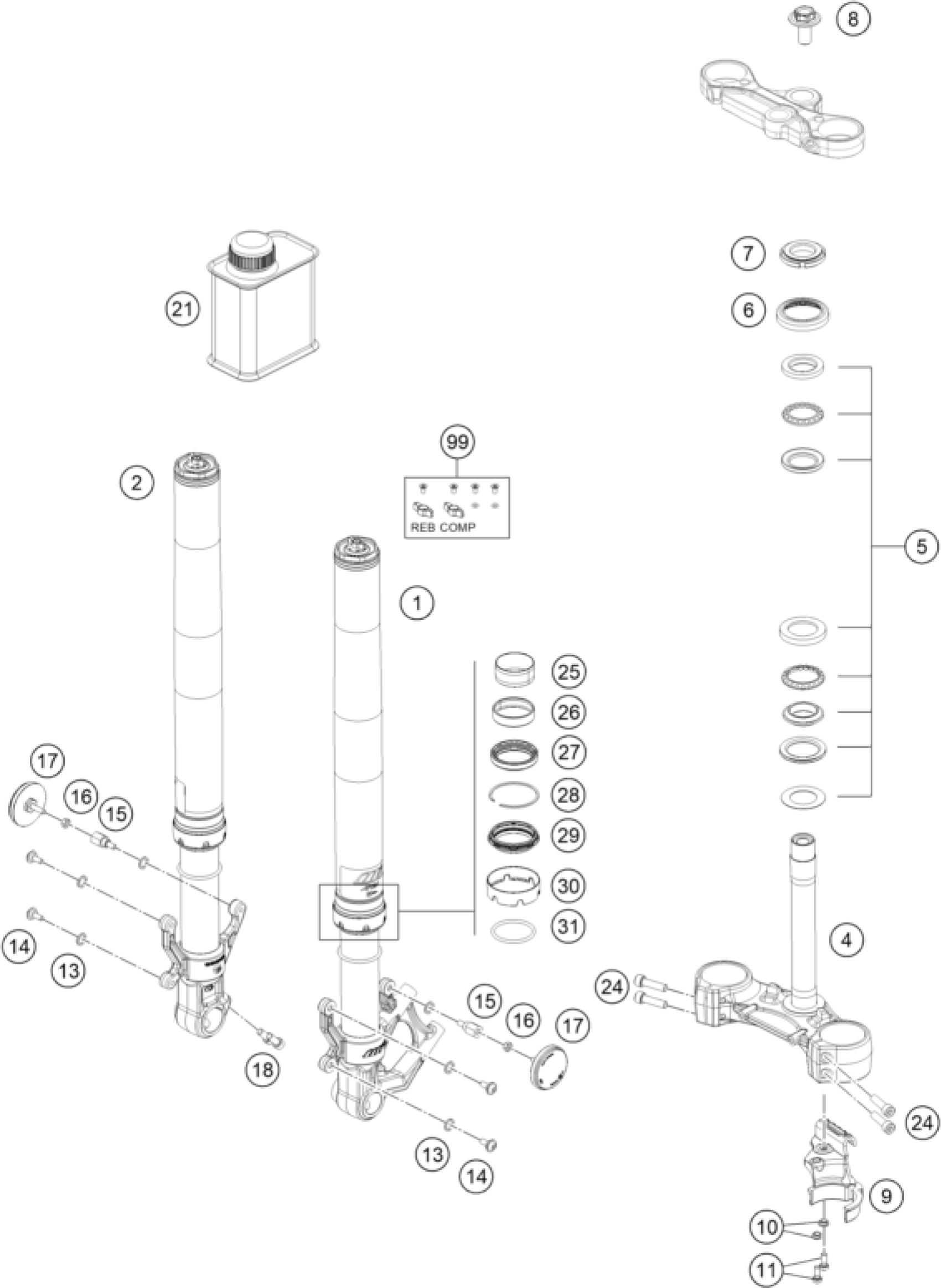

KTM RC 390, blue 2022 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

LEG ASSEMBLY LH

94801001000

$795.96

2

LEG ASSEMBLY RH

94801002000

$795.96

4

Bottom triple clamp

94501032035

$203.92

5

STEERING HEAD BEARING-KIT

90101080044

$33.65

6

protection cap

90101086000

$3.08

7

Adjusting ring steering head

90101036100

$5.23

8

steering head screw

90501044000

$13.92

9

Hose clamp

93013055000

$3.08

10

sleeve for hose clamp

90113055010

$1.49

11

AH SCREW M6X15 10.9

J021060156

$1.49

13

Washer nylon

93009059000

$1.49

14

Panhead screw with shoulder

J031050161

$1.49

15

Reflector holder

94512082010

$2.61

16

NUT HEX THICK

J910000600505

$1.49

17

Side reflector

94512082000

$7.10

21

Fork Fluid Viscosity 4.0 5L

48601166S1

$149.59

24

AH SCREW M8X1.25X30

90501045000

$1.49

25

GUIDE BUSH LOWER

43578014

$16.45

26

GUIDE BUSH UPPER

43578016

$16.35

27

Shaft seal SKF 43x52,9x11,4 bl

43570623

$16.63

28

CIRCLIP

43578044

$4.11

29

Dirt scarper SKF 43mm black

43570624

$16.73

30

Fork protection ring d43

43578206

$2.05

31

O-ring 40x2,5 VMQ70 red ISO 36

43578219

$4.11

99

Adjuster kit screw cap

RP10021

Unavailable

18

SOCKET HEADED BOLT M8X1.25X20

J900000802002

$2.05
