WIRING HARNESS

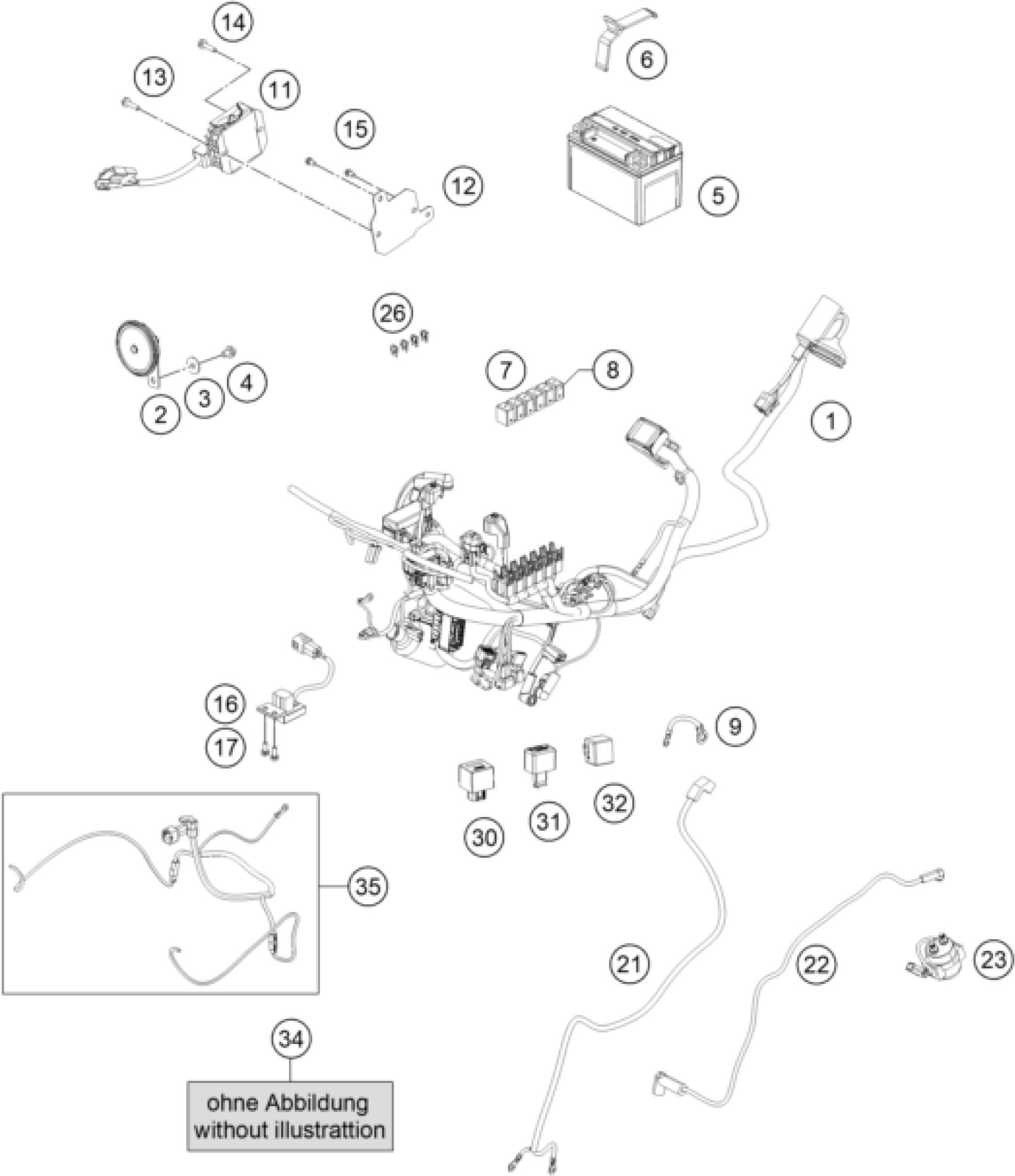

KTM RC 390 BLACK B.D. 17 <2017> WIRING HARNESS Diagram
#
1
WIRING HARNESS
93511075200
Unavailable
2
HORN 82 DIA
90111060100
Unavailable
3
WASHER PLAIN 8,4X25X2
90111060010
Unavailable
4
HH COLLAR SCREW M8X12 SW12
J025080123
Unavailable
5
BATTERY 12V/8AH
90611053000
Unavailable
6
BRACKET RUBBER FOR BATTERY
90511054001
Unavailable
7
relay (interlock)
90611057000
Unavailable
8
RELAY (AUX1DIODE)
90611157000
Unavailable
9
EARTH CABLE
93511097000
Unavailable
11
voltage regulator
90511034000
Unavailable
12
BRACKET VOLTAGE REGULATOR
90511134010
Unavailable
13
FLANGED BOLT M6X30 WS10
J025060303
Unavailable
14
bolt flanged M6X25
J025060253
Unavailable
15
HH-COLLAR SCREW M6X10 SW8
J025060109
Unavailable
16
rollover sensor
93541088000
Unavailable
17
HH-COLLAR SCREW M5X10
J025050103
Unavailable
21
GROUND CABLE
90511097000
Unavailable
22
STARTER CABLE
90811059000
Unavailable
23
STARTER RELAY
90111058000
Unavailable
26
FUSE MINI 5A
75011088005
Unavailable
26
FUSE 10A 07
75011088010
Unavailable
26
FUSE 15A 07
75011088015
Unavailable
26
FUSE 30A
75011088030
Unavailable
30
Start OK control unit
93539010000
Unavailable
31
FLASHER FOR BULB TYPE BLINKER
90511530000
Unavailable
32
resistor
93811043000
Unavailable
34
resistor
93811043000
Unavailable
34
Flasher wiring harness USA
93811580000
Unavailable
34
Pig Tail Stop Lamp USA
93814540000
Unavailable
34
wiring harness temperatur sens
93811099000
Unavailable
34
PIGTAIL PH-3 FUEL PUMP
93511084000
Unavailable
34
Pigtail oil pressure switch
90838091000
Unavailable
34
Cable earth ABS
93042033000
Unavailable
35
Pig tail blinker USA
93811081000
Unavailable
