SWING ARM

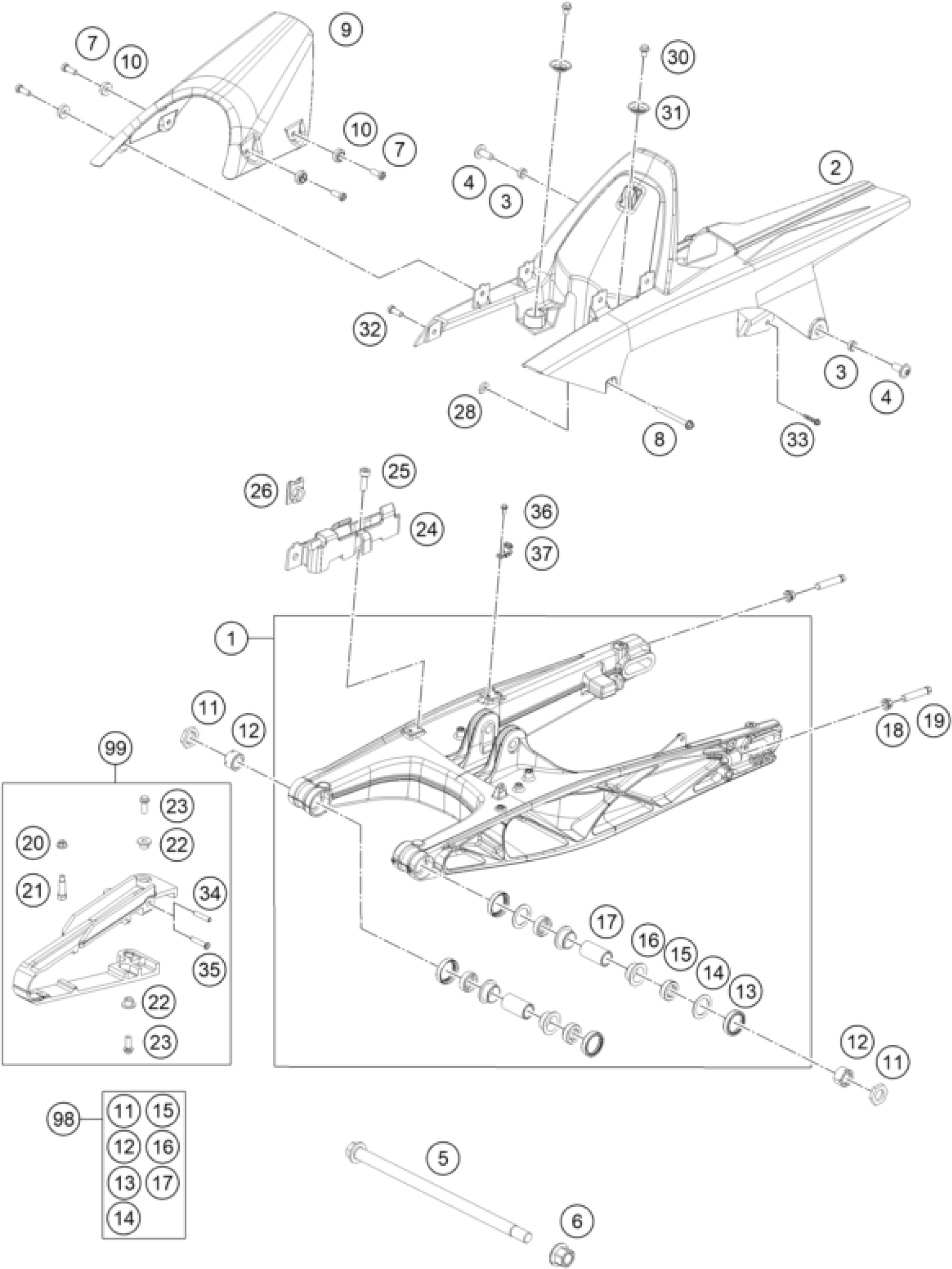

KTM RC 390, black 2018 SWING ARM Diagram
#
Description
Price
1
SWING ARM CPL.
90504030044
$437.20
2
CHAIN COVER BLACK
9050406000033
$30.00
3
SLEEVE FOR CHAIN COVER
90504060050
$2.05
4
AH SCREW M8X20
90508008001
$1.49
5
Shaft swing arm L=299mm
90104037000
$17.76
6
FLANGED NUT M14X1.5
90104038000
$3.08
7
BOLT SOCKET M6X1XL
90808043001
$1.49
8
BOLT FLANGED M5X0.8XL
J025050504
$1.49
9
REAR FENDER HD
90504050100
Unavailable
10
SPECIAL WASHER
90508046000
$4.11
11
hex thrust washer
90104042000
$3.64
12
swingarm adjusting ring
90104046000
$5.88
13
OIL SEAL RING 25X32X7
90104034001
$3.08
14
Thrust washer 22.2x31.7x1
90104036000
$1.49
15
cup for radial shaft seal
90104034000
$4.11
16
Igus plain bearing
90104031000
$5.23
17
sleeve bushing 15.1x20x38
90104032000
$6.63
18
flanged hex nut M10x1.25 WS13
90104010002
$2.05
19
BOLT HEX M10X1.25X50 WS10
90104040000
$5.23
20
HH COLLAR NUT
90204060001
$1.49
21
screw M5x0.8x30
90104040100
$1.49
22
chain slider bushing
90604062000
$1.49
23
HH COLLAR SCREW M6X16 SW8
J025060169
$1.49
24
Clamp brake hose rear
93813147100
$5.23
25
AH SCREW M5X14 BLACK
J912050151
$1.49
26
clip nut
90103097000
$4.11
28
WASHER CHAIN SLIDING GUARD
90504067000
$1.49
30
HH COLLAR SCREW M6X8 SW8
J025060083
$1.49
31
BUCKET
90104067000
$3.08
32
SPECIAL SCREW M6X1X16
90808043000
$1.49
33
SCREW SELF TAP D=6
90504060001
$1.49
34
SLEEVE CHAIN GUARD
90104070020
Unavailable
35
SLEEVE CHAIN GUARD
90904070020
Unavailable
98
SWINGARM REP. KIT 11-17
90104230010
Unavailable
99
CHAIN GUARD KIT 250/390
90104066210
Unavailable
36
HH COLLAR SCREW M5X13 SW8
J011050133
$1.49
37
brake hose guide
90113047000
$1.49
