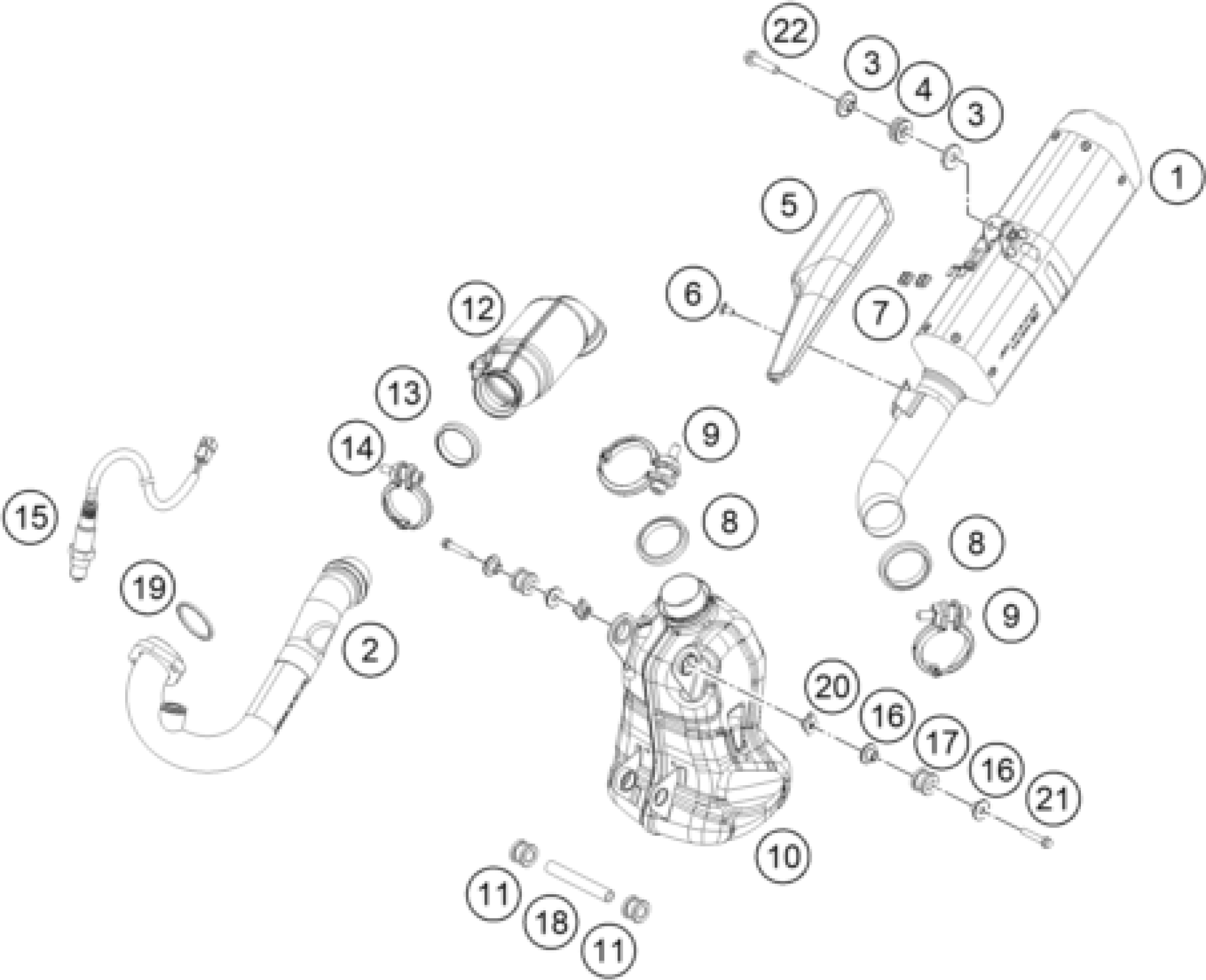

KTM RC 390, black 2018 EXHAUST SYSTEM Diagram

#

Description
Price

1

MUFFLER CPL.

93805083000

Unavailable

2

header cpl.

93805007000

$115.00

3

BUSH MUFFLER

93805095000

$4.11

4

DAMPER MUFFLER

93805096000

$1.49

5

MUFFLER SHIELD

93805011000

$23.18

6

SPECIAL SCREW M6X1X10

90808073000

$1.49

7

GROMMET MUFFLER SHIELD

93805011003

$1.49

8

GASKET PIPE C

93805005100

$6.91

9

CLAMP DIA 60

93805058100

$11.49

10

premuffler

93505050000

$389.70

11

damper, bottom

90105068100

$1.49

12

catalytic converter cpl.

93605008000

$416.63

13

GASKET PIPE B

93805005000

$6.44

14

CLAMP DIA 54

93805058000

$11.02

15

oxygen sensor

90141090000

$188.11

16

muffler mounting spacer bushin

90205086001

$2.05

17

damper, bottom

90205068000

$2.05

18

muffler mounting tube

90105084000

$4.11

19

exhaust flange gasket

90105004000

$5.23

20

clip nut

90103097000

$4.11

21

BOLT SILENCER MTG

90105000002

$1.49

22

BOLT FLANGED M8X35

J025080353

$1.49
