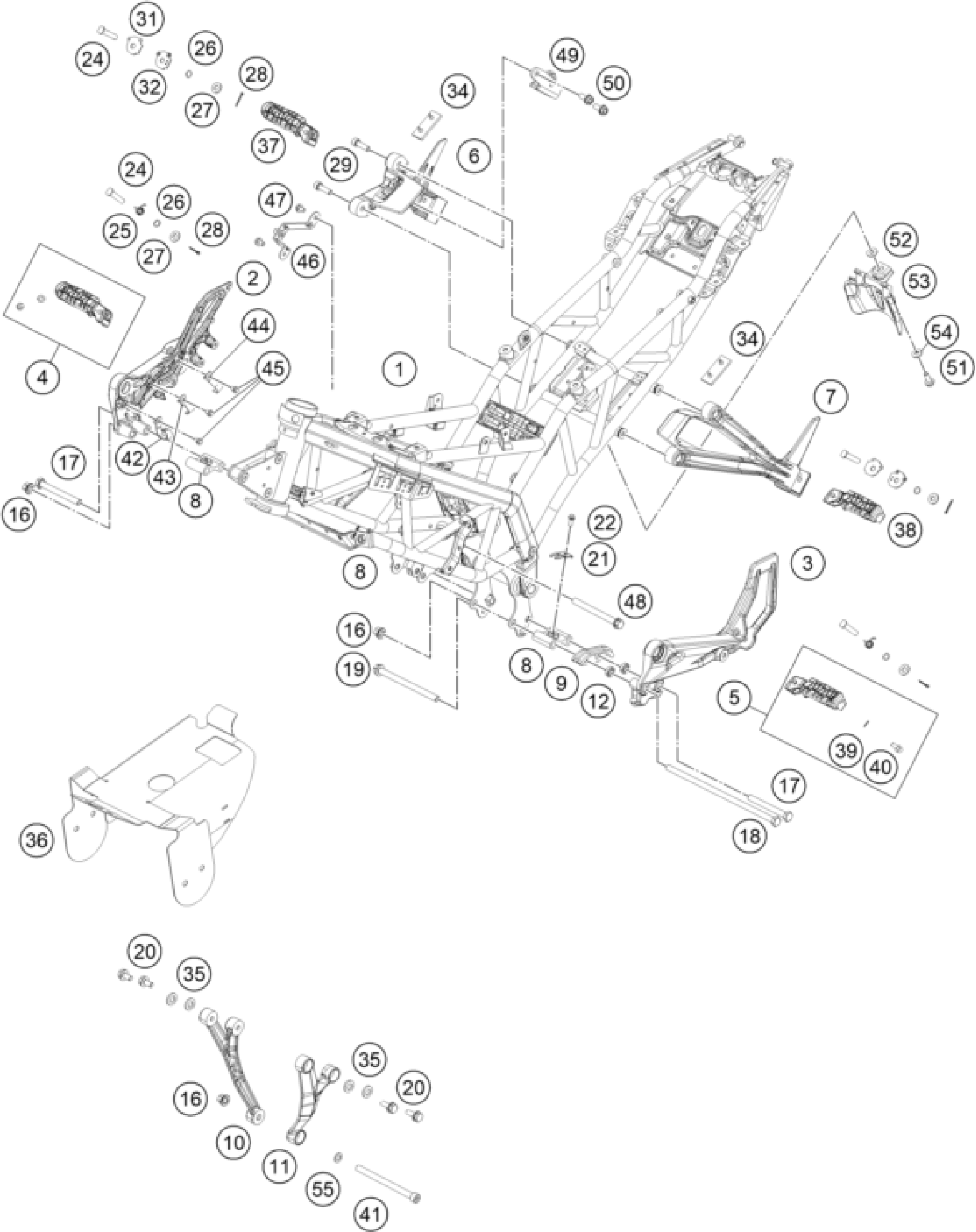

KTM RC 390 BLACK 2017 FRAME Diagram

#

Description
Price

1

Frame RC 17 orange

93503001200EB

Unavailable

2

FOOTREST BRACKET FRONT R/S

90503039000

Unavailable

3

FOOTREST BRACKET FRONT L/S

90503038000

Unavailable

4

footrest front right cpl.

90103041033

Unavailable

5

footrest front left cpl.

90103040033

Unavailable

6

FOOTREST BRACKET REAR R/S

90503049000

Unavailable

7

FOOTREST BRACKET REAR L/S

90503048000

Unavailable

8

footrest support holder, front

90103038001

Unavailable

9

chainguide

90104070000

Unavailable

10

Engine brace right

93303006000

Unavailable

11

Engine brace left250/390

93303005000

Unavailable

12

spacer chainguide

90104066010

Unavailable

16

FLANGED NUT M10X1.25 WS14

90103038002

Unavailable

17

HH COLLAR SCREW M10X1,25X92

J025100926

Unavailable

18

HH COLLAR SCREW M10X1,25X265

J025102656

Unavailable

19

HH COLLAR SCREW M8X105 SW12

J027081053

Unavailable

20

SOCKET HEAD SCREW M8X25 8.8

J912080253

Unavailable

21

CABLE BRACKET

90111045050

Unavailable

22

FLANGED BOLT M6X14

90103032000

Unavailable

24

BOLT FOR FOOTREST

90503045000

Unavailable

25

footrest return spring

90103042000

Unavailable

26

O-RING 9X1,5

J770009015

Unavailable

27

WASHER D=8,5

90503048010

Unavailable

28

PIN 25X1,8MM

J094018250

Unavailable

29

BOLT SOCKET M8X1.25XL

90503098000

Unavailable

31

LOCK PLATE LOWER

90503053000

Unavailable

32

LOCK PLATE UPPER

90503052000

Unavailable

34

RUBBER DAMPER FOR FOOTREST

90503050000

Unavailable

35

WASHER M8

J125080005

Unavailable

36

HEAT SHIELD

90805090000

Unavailable

37

footrest rear right cpl.

90103051033

Unavailable

38

footrest rear left cpl.

90103050033

Unavailable

39

PLAIN WASHER 6,4X12X1

90103040001

Unavailable

40

CAP SCREW M6X10 SS

J029060103S

Unavailable

41

BOLT M10X135

90203008000

Unavailable

42

BRAKE HOSE GUIDE FRONT

90113025000

Unavailable

43

BRACKET HOSE CLAMP 2

90513046000

Unavailable

44

BRACKET HOSE CLAMP 1

90513045000

Unavailable

45

HH COLLAR SCREW M6X8 SW8

J025060083

Unavailable

46

BRACKET SIDECOVER

90503034000

Unavailable

47

HH COLLAR SCREW M6X10 SW10

J025060103

Unavailable

48

HH COLLAR SCREW M10X110 WS14

J025101103

Unavailable

49

BRACKET SILENCER MTG

93505088000

Unavailable

50

BOLT FLANGED M8X18

J025080183

Unavailable

51

Washer M10

J125100009

Unavailable
