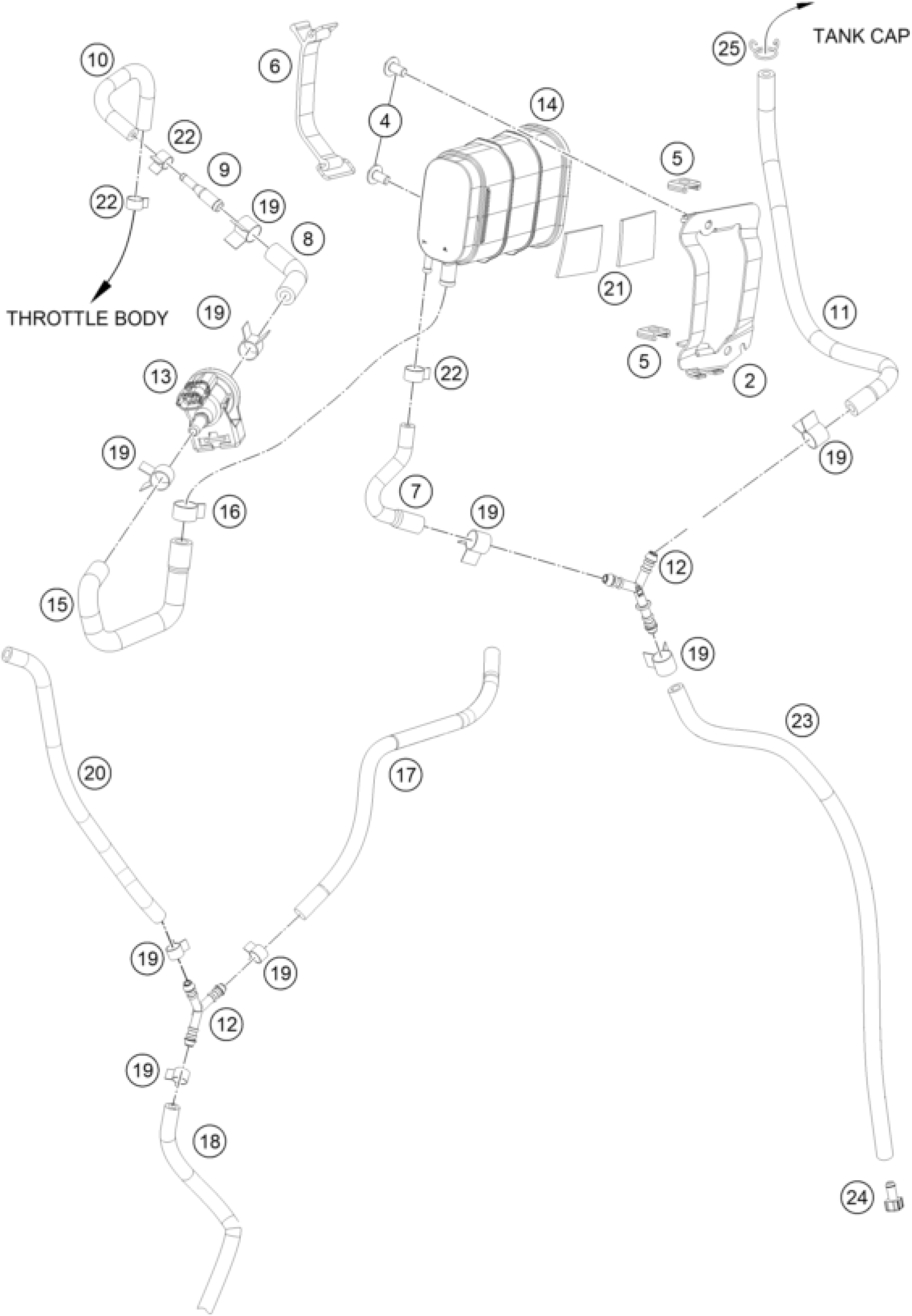

KTM RC 390 BLACK 2017 EVAPORATIVE CANISTER Diagram

#

Description

Price

2

Support

93615003000

Unavailable

4

SOCKET HEAD BOLT M6X12

90508006001

Unavailable

5

Rubber underlay

93615005000

Unavailable

6

Support

93615002000

Unavailable

7

Hose

93615024000

Unavailable

8

Hose

93807016002

Unavailable

9

CONNECTOR TUBE EVAP

90207016004

Unavailable

10

Fuel hose

93807015000

Unavailable

12

CONNECTOR Y SHAPE

90507015000

Unavailable

13

fuel tank vent valve

90607030000

Unavailable

14

Activated carbon filter

93015001000

Unavailable

15

Hose

93615025000

Unavailable

16

SPRING BAND CLAMP 15X10

90607017001

Unavailable

19

CLAMP 10MM

90107018011

Unavailable

21

FOAM PAD

90511038000

Unavailable

11

TUBE TANK TO CANISTER

90515022000

Unavailable

22

CLAMP D9

90607017002

Unavailable

17

HOSE

93807013013

Unavailable

18

TUBE DRAIN 2

90507013013

Unavailable

20

HOSE

93807013013

Unavailable

23

TUBE CONNECTOR TO PLUG

90515023000

Unavailable

24

PLUG FUEL DRAIN

90515011000

Unavailable

25

HOSE CLAMP

90507017000

Unavailable
