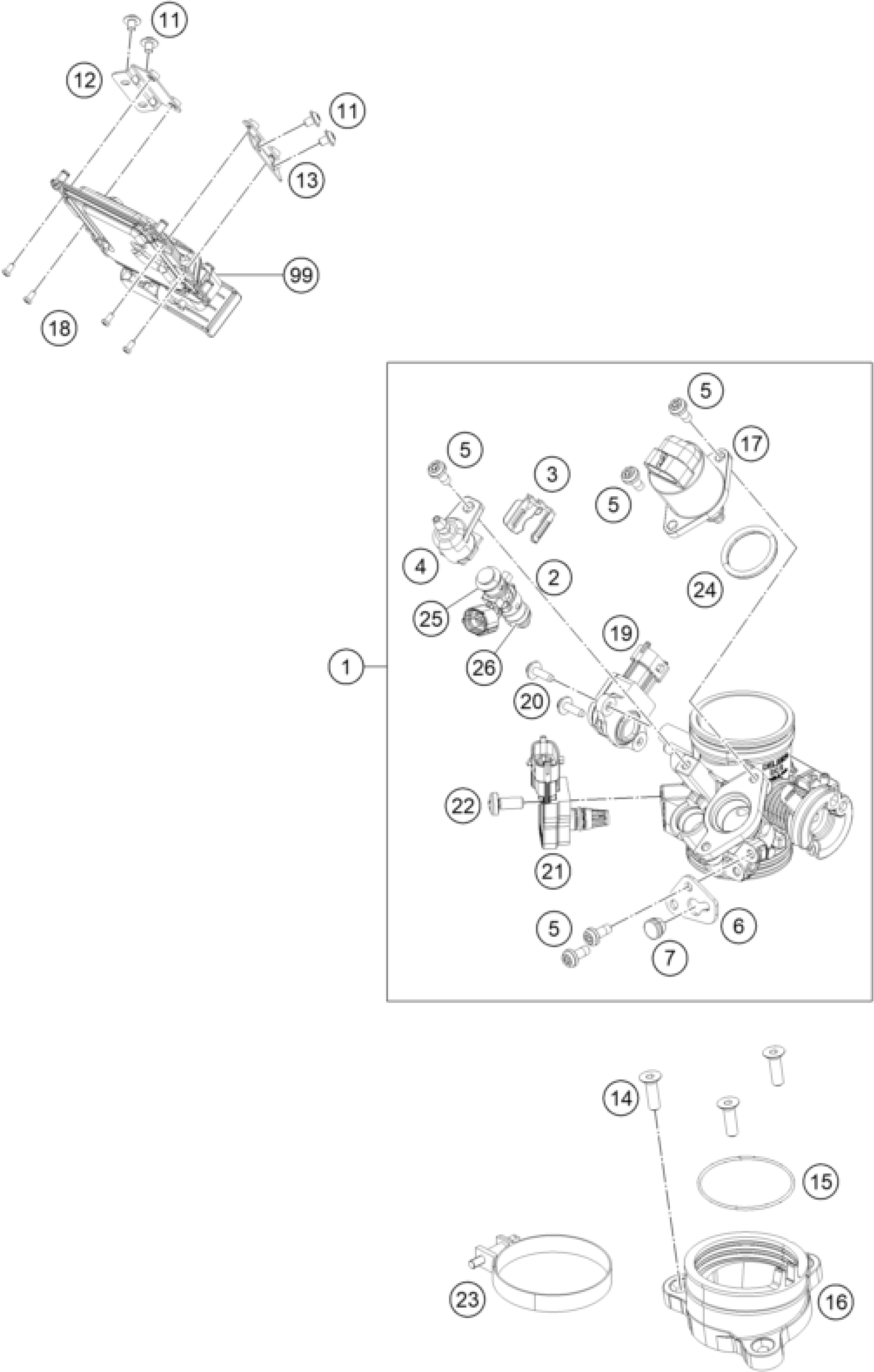

KTM RC 390 ADAC CUP / ABS 2014 THROTTLE BODY Diagram

#

Description
Price

1

THROTTLE BODY CPL.

90241001000

$479.37

2

FUEL INJECTOR

90241023000

$130.52

3

INJECTOR CLIP

90141001001

$3.08

4

CONNECTOR FUEL RAIL

90141023004

$3.08

5

SPECIAL SCREW M5X12

90141023005

$1.49

6

CABLE SUPPORT

90141023002

$3.08

7

GROMMET

90141023003

$1.49

11

SOCKET HEAD BOLT M6X1X8

90508006004

$1.49

12

BRACKET ECU R/S

90514030000

$2.05

13

BRACKET ECU L/S

90514029000

$2.05

14

COUNTERSUNK SCREW M6X20

J991060203S

$1.49

15

O-RING 53X2,4

J770053024

$4.11

16

PIPE INTAKE

90241002000

$29.35

17

IDLE ADJUSTER

90641072000

$80.31

19

THROTTLE POSITION SENSOR

90141070000

$75.17

20

SPECIAL SCREW M4X13

90141070001

$1.49

21

TMAP-SENSOR

90141071000

$79.19

22

SPECIAL SCREW M6X14

90141071001

$5.41

23

hose clamp

90241002010

$5.23

24

O-RING

90141072001

$3.08

18

FLAT HEAD SCREW M4X8 PH

J005040081

$1.49

99

ECU RAW PART

90141031100

$522.94

25

O-ring

55641023020

$10.56

26

O-ring

55641023010

$7.66
