Description

Price

1

FORK LEG L/S CPL.

90801101000

Unavailable

1

FORK LEG R/S CPL.

90801102000

Unavailable

2

AH SCREW M8X1.25X30

90501045000

$1.49

5

STEERING HEAD BEARING-KIT

90101080044

Unavailable

6

protection cap

90101086000

$3.08

4

Lower triple clamp cpl.

9010103210033

$434.11

7

adjusting ring steering head

90101036000

$5.88

8

steering head screw

90501044000

$13.92

21

Fork Fluid Viscosity 4.0 5L

48601166S1

$149.59

98

REP. KIT FORK KPL.

90101000010

Unavailable

9

HOSE CLAMP

90113055000

$7.28

10

sleeve for hose clamp

90113055010

$1.49

11

AH SCREW M6X15 10.9

J021060156

$1.49

20

Guide bushing 43x47x12

43570618

$11.68

19

Shaft seal SKF 43x52,9x11,4 bl

43570623

$16.63

18

Dirt scarper SKF 43mm black

43570624

$16.73

40

WHEEL CLAMP CPL. WITH PIPE R/S

90101007044

$289.00

41

AXLE CLAMP CPL. WITH PIPE L/S

90101006144

$351.18

12

FORK FRONT DUST COVER

90201025000

$4.11

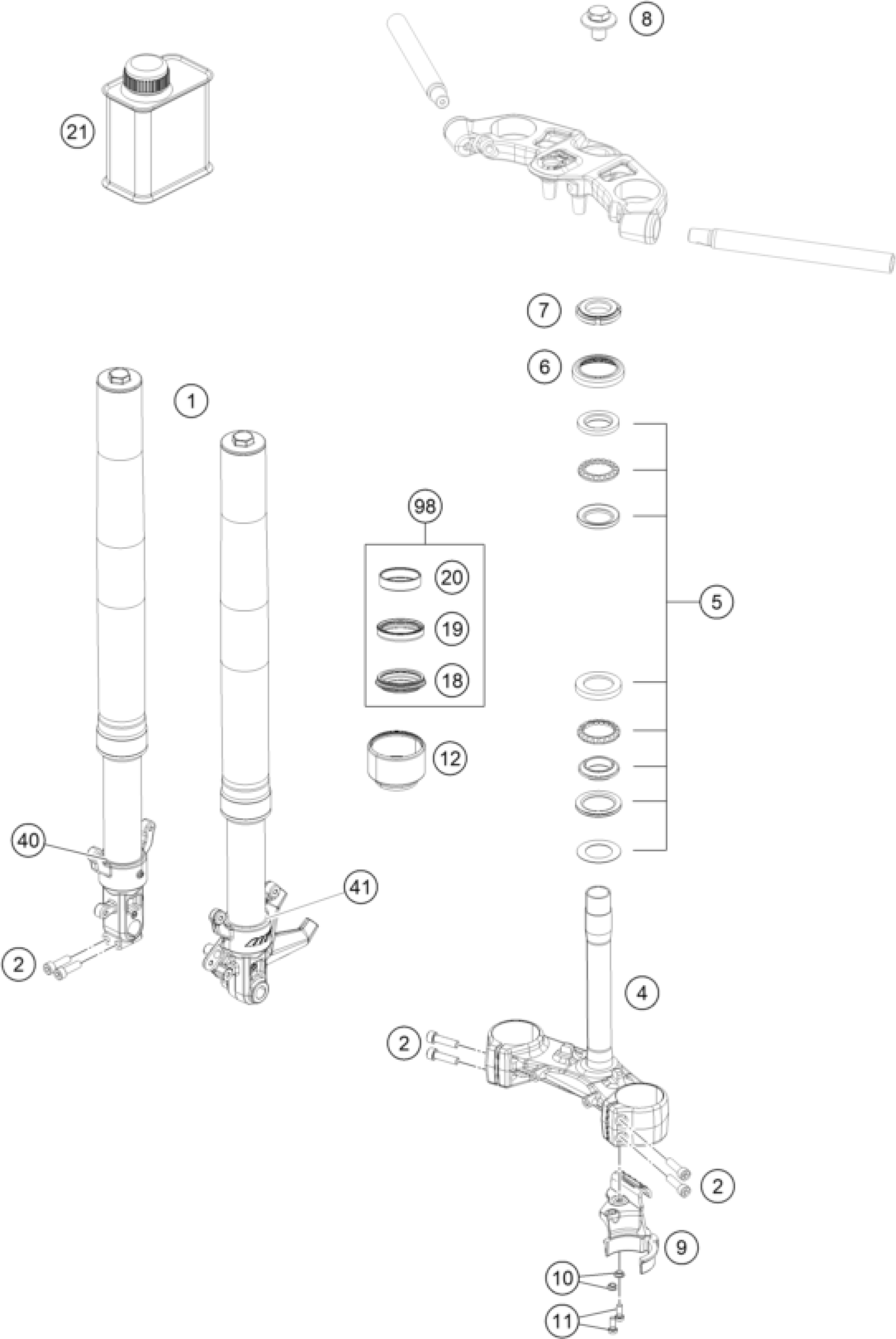

KTM RC 250 WHITE ABS CKD 15 <2015 FRONT FORK, TRIPLE CLAMP Diagram

FORK LEG L/S CPL.

FORK LEG R/S CPL.

AH SCREW M8X1.25X30

STEERING HEAD BEARING-KIT

protection cap

Lower triple clamp cpl.

adjusting ring steering head

steering head screw

Fork Fluid Viscosity 4.0 5L

REP. KIT FORK KPL.

HOSE CLAMP

sleeve for hose clamp

AH SCREW M6X15 10.9

Guide bushing 43x47x12

Shaft seal SKF 43x52,9x11,4 bl

Dirt scarper SKF 43mm black

WHEEL CLAMP CPL. WITH PIPE R/S

AXLE CLAMP CPL. WITH PIPE L/S

FORK FRONT DUST COVER
