COOLING SYSTEM

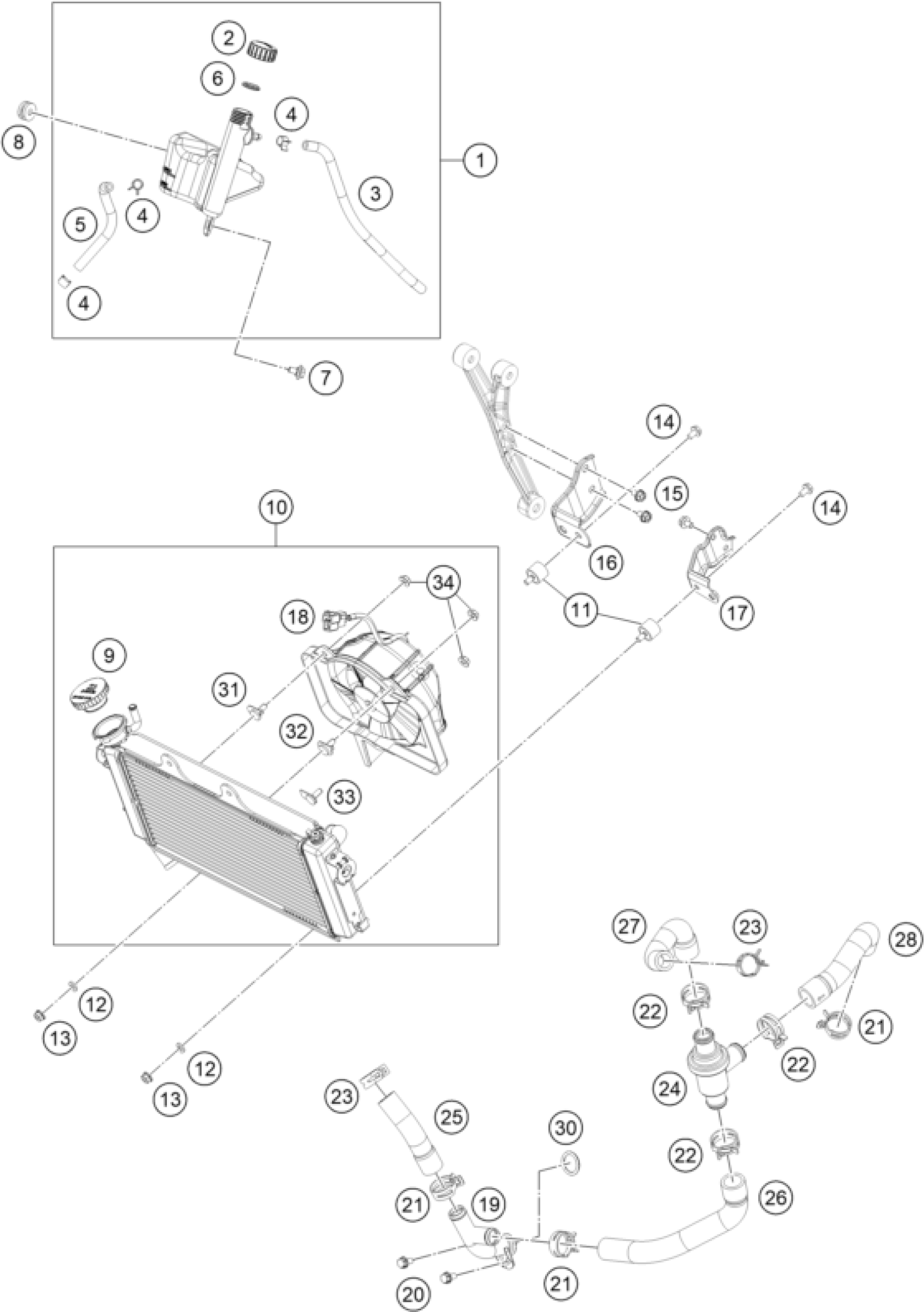

KTM RC 250 WHITE ABS B.D. 16 <2016 COOLING SYSTEM Diagram
#
Description
Price
1
EXPANSION TANK CPL.
90535065033
$21.03
2
PLUG F. EXPANSION TANK
90135066000
$3.08
3
TUBE DRAIN
90507013008
$2.05
4
CLAMP 10MM
90107018011
$2.05
5
HOSE 6X10X154 MM
90135067050
$2.05
6
COMPENSATING TANK O-RING
90102055000
$1.49
7
SPECIAL SCREW M6X12 FLANGED
90135074000
$2.05
8
GROMMET EXPANSION TANK
90135065050
$1.49
9
RADIATOR CAP
90135016100
$17.20
10
RADIATOR CPL. WITH FAN
90835010133
$362.30
11
silentbloc M6
90235001001
$5.23
12
WASHER SPRING B6
J127060003
$1.49
13
FLANGED NUT M6 WS10 SELF LOCK.
J926060000
$2.05
14
HH COLLAR SCREW M6X8 SW10
J026060083
$1.49
15
HH COLLAR SCREW M6X10 SW10
J025060103
$1.49
16
BRACKET RADIATOR L/S
90803001183
$2.05
17
BRACKET RADIATOR R/S
90803001083
$2.05
18
FAN CPL.
90835041033
$168.85
19
COOLANT PIPE T
90635071033
$31.78
20
BOLT FLANGED M6X14
J028060143
$1.49
21
hose clamp D26
90135020001
$3.08
22
HOSE CLAMP D28
90135020003
$3.08
23
hose clamp D24
90135020002
$3.08
24
THERMOSTAT
90135017000
$33.56
25
COOLING HOSE RADIATOR-PIPE ''T
90835024030
$7.56
26
HOSE COOLANT THERM. TO T-PIPE
90235024010
$13.74
27
COOLING HOSE THERMOSTAT
90835024020
$8.31
28
HOSE COOLANT ENGINE - THERM.
90235025000
$10.84
30
O-RING 18,5X3
J770018530
$2.05
31
BRACKET FAN MOUNTING 1
90835041001
$2.05
32
BRACKET FAN MOUNTING 2
90835041002
$2.05
33
BRACKET FAN MOUNTING 3
90835041003
$2.05
34
FLANGED NUT
90835041004
$2.05
