ENGINE CASE

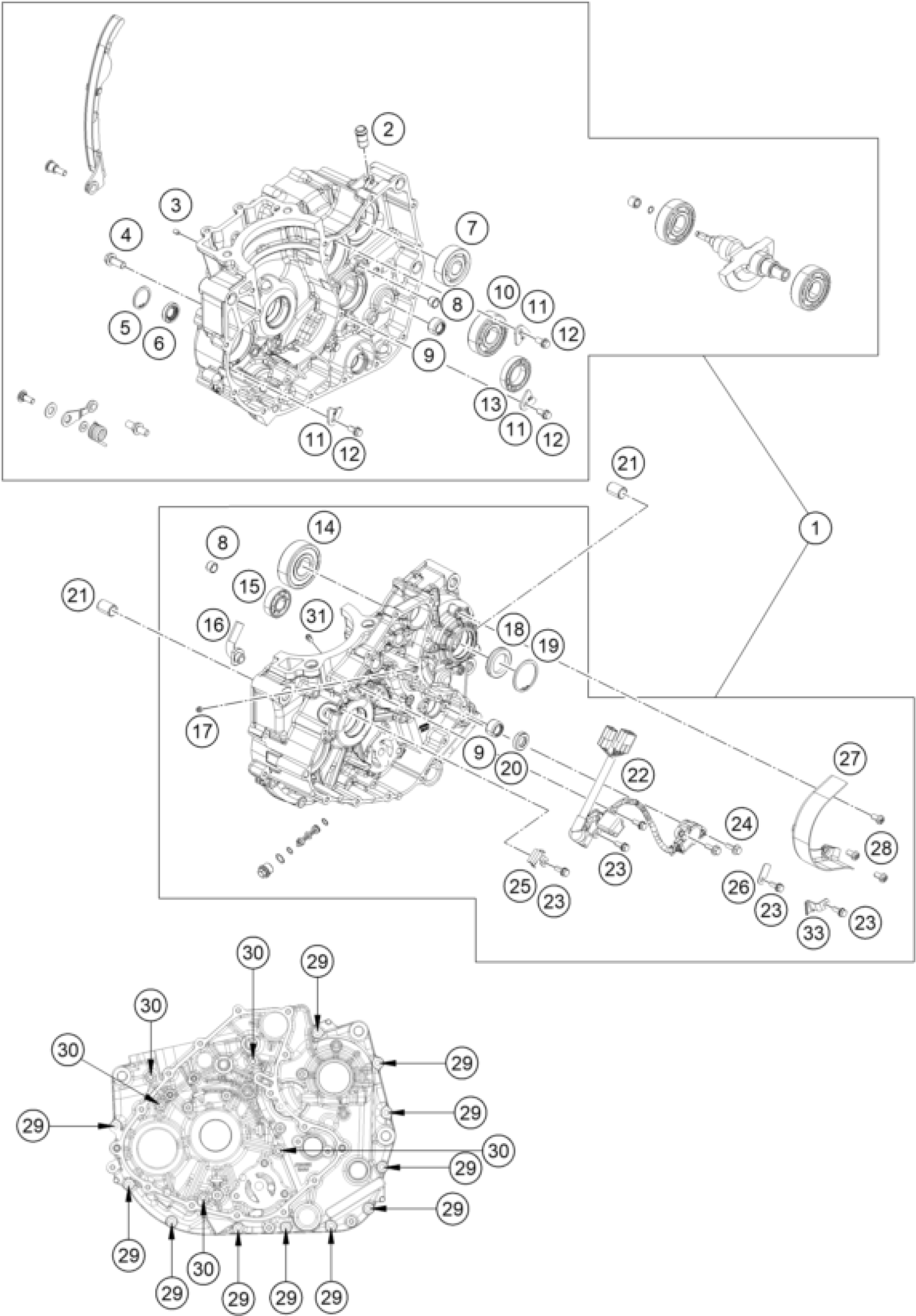

KTM RC 250 WHITE ABS B.D. 15 <2015> ENGINE CASE Diagram
#
1
ENGINE CASE CPL.
90230000144
Unavailable
2
VENTILATION CONNECTOR
90130022000
Unavailable
4
FLANGED BOLT M8X20
J011080203S
Unavailable
5
CIRCLIP 25X1,2
J472025120
Unavailable
6
SHAFT SEALING RING 12X24X5,5
J760122455
Unavailable
7
DEEP GROOVE BALL BEARING
90233010001
Unavailable
8
BUSH SHIFT RAIL
90234030000
Unavailable
9
NEEDLE ROLLER BEARING HK1312
J618131912
Unavailable
10
DEEP GROOVE BALL BEARING 6304
J625063040
Unavailable
11
STOPPER BALANCER SHAFT BEARING
90230079000
Unavailable
12
FLANGED BOLT 6X12
90130078001
Unavailable
13
Bearing ball
90130004004
Unavailable
14
BALL BEARING 22X56X16-C3L-
J625063320
Unavailable
15
BALL BEARING 15X35X11-C3-1
J625062122
Unavailable
16
OIL PIPE
90238014000
Unavailable
17
OIL NOZZLE
90230066100
Unavailable
18
OIL SEAL OUTPUT SHAFT
90230077000
Unavailable
19
CIRCLIP 37X1,5
J472037150
Unavailable
20
Seal - oil
90130003004
Unavailable
24
FLANGED BOLT M5X16
J025050163S
Unavailable
25
BRACKET
90230060000
Unavailable
26
BRACKET
90230042000
Unavailable
27
CHAIN GUARD
90230047000
Unavailable
28
FLAT HEAD SCREW M6X12 PH
J005060123
Unavailable
29
FLANGED BOLT M6X35 WS8
J025060350
Unavailable
30
FLANGED BOLT M6X75
J028060753S
Unavailable
31
OIL NOZZLE
90230066000
Unavailable
33
BRACKET GEAR-POSITION SENSOR
90230142000
Unavailable
3
JET EVAC
90238029005
Unavailable
21
DOWEL D14
90130003007
Unavailable
22
GEAR-POS.SENSOR INC.PULS. COIL
90211023000
Unavailable
23
HH COLLAR SCREW M5X13 SW8
J011050133
Unavailable
