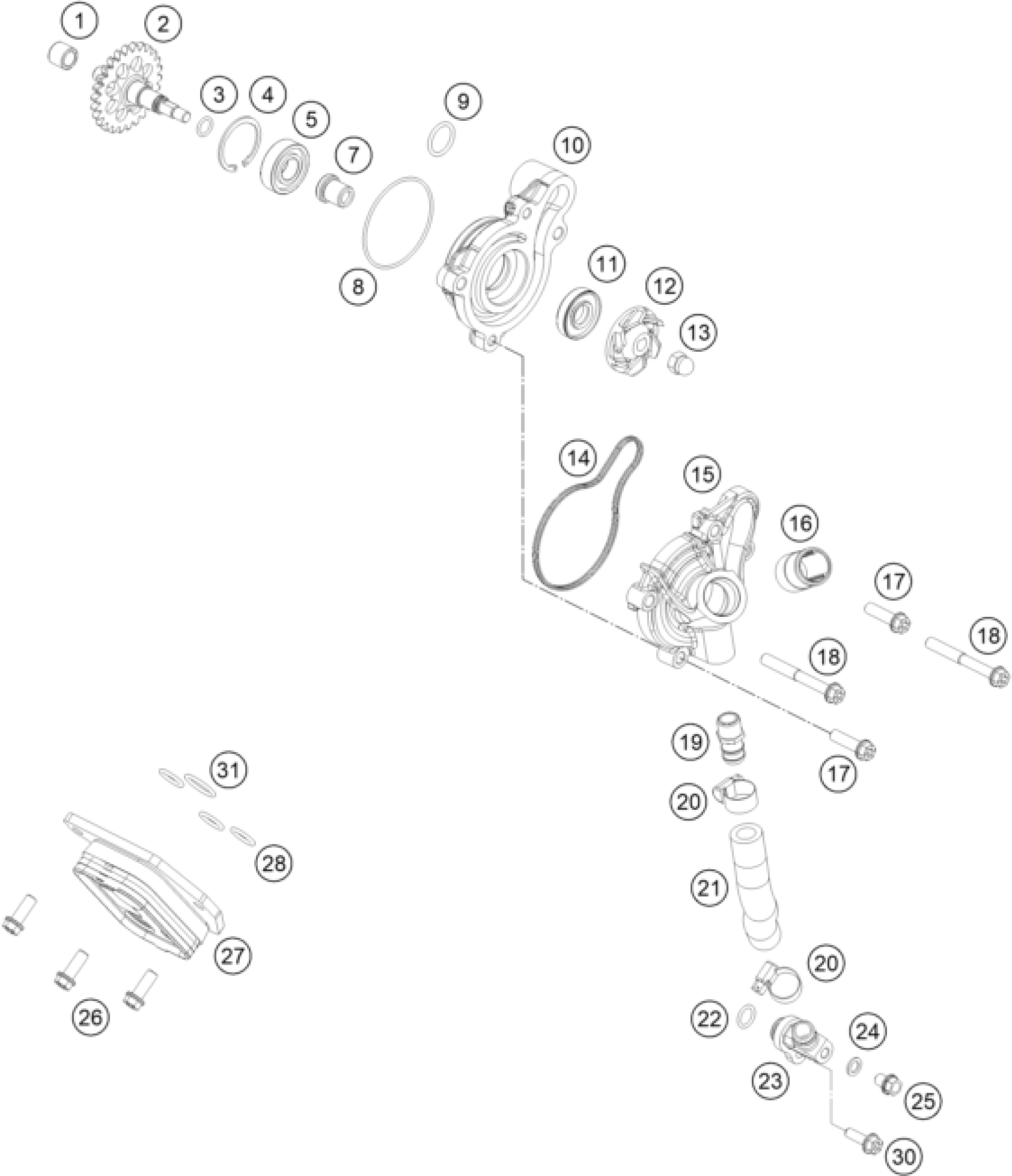

KTM RC 250 R 2014 WATER PUMP Diagram

#

Description
Price

1

NEEDLE BUSH HK 0810 DIN 618

0618081210

Unavailable

2

WATER PUMP SHAFT T26

M3235053000V01

Unavailable

3

O-ring 6,00x1,50 NBR 70

0770060015

Unavailable

5

deep groove ball bearing 6001.

0625060016

Unavailable

7

WEAR BUSHING

M3235052000V11

Unavailable

8

O-RING 48,00X1,50

0770048015

Unavailable

9

O-RING 16X2 NBR

0770016020

Unavailable

10

WATER PUMP CASE

M3235051000

Unavailable

11

SHAFT SEAL RING 11,7X25X7 PTFE

0760122573

Unavailable

12

WATER PUMP WHEEL

B3335055000

Unavailable

13

CAP NUT M6 STAINLESS STEEL

61230045000

Unavailable

14

GASKET WATER PUMP

M3235004000

Unavailable

15

WAPU COVER

B3335058000

Unavailable

16

SCREW IN NOZZLE M20X1,5

58030010200

Unavailable

17

HH collar screw M6x20 TX30

0025060206

Unavailable

18

HH COLLAR SCREW M6X45 TX30

0025060456

Unavailable

19

BLEEDER FLANGE M12X1,5 WS=13

59030022100

Unavailable

20

HOSE CLAMP GEMI 10-16

58335099000

Unavailable

21

RADIATOR HOSE

M3234038053

Unavailable

22

O-ring 11x1.5 VITON

0770110015

Unavailable

23

WATER CONNECTOR

M3235019000V01

Unavailable

24

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable

25

HH COLLAR SCREW M 6X8 WS=8

0015060083

Unavailable

26

HH collar screw M6x12 TX30

0025060126

Unavailable

27

HEAT EXCHANGER

B3334038060

Unavailable

28

O-RING 11X2 VITON

0770110021

Unavailable

30

HH collar screw M5x16 TX30

0025050166

Unavailable

31

O-RING 15,00X2,00

0770015020

Unavailable

4

CIRCLIP J28 DIN472

M3235053001

Unavailable
