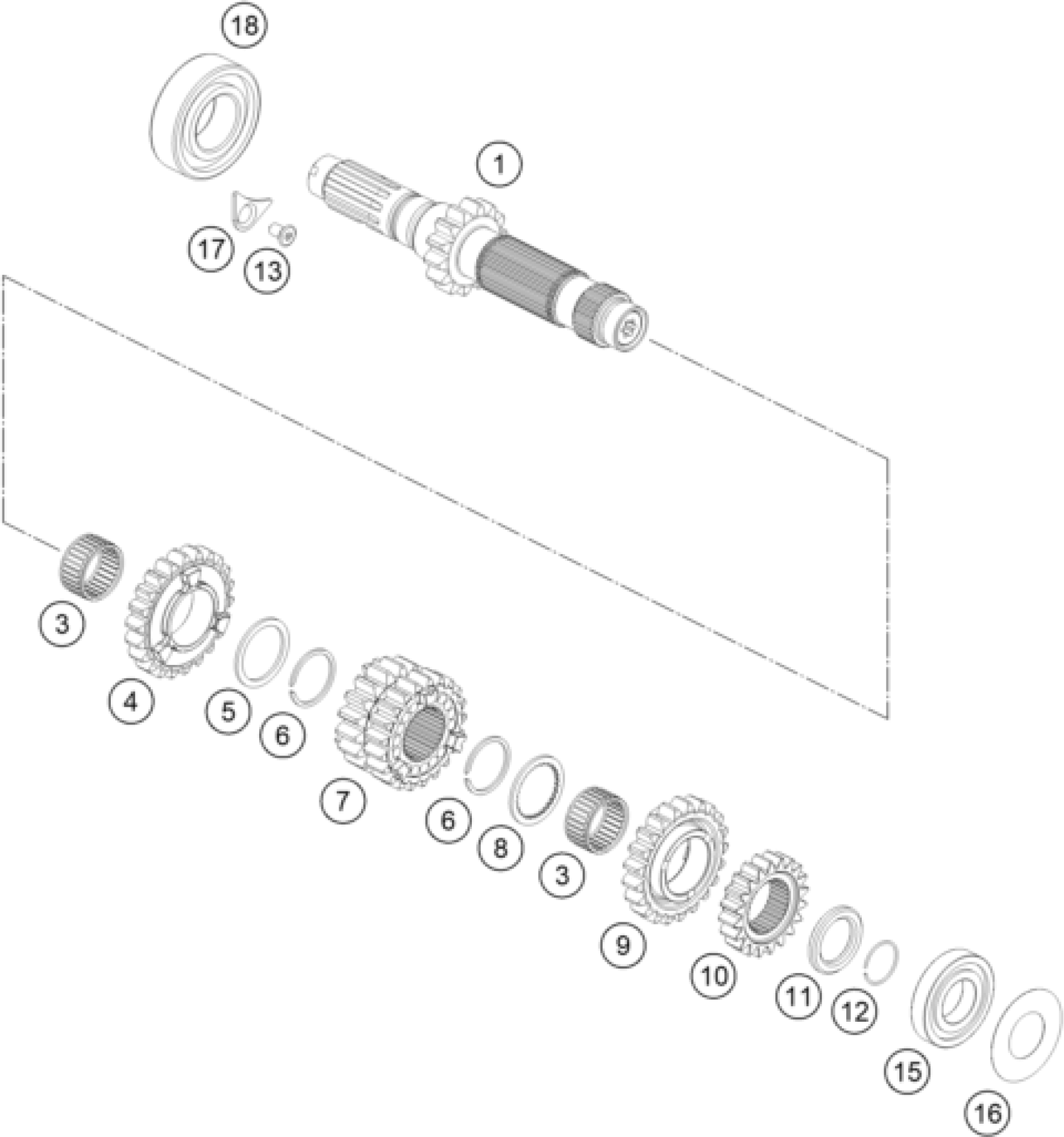

KTM RC 250 R 2014 TRANSMISSION I - MAIN SHAFT Diagram

#

Description
Price

1

DRIVE SHAFT VERSION ''E'' V01

M3233001008V01

Unavailable

2

BUSHING

78033001110

Unavailable

3

NEEDLE BEAR. K 22X26X13 TN

0405222613

Unavailable

4

IDLE GEAR 6G VERSION ''E''

M3233006168

Unavailable

5

STOP DISC 25X31X1,5

54833044000

Unavailable

6

CIRCLIP WS24

0417024000

Unavailable

7

SLIDING GEAR 3EF-4DE

M3233003538

Unavailable

8

STOP DISC 25X0,8X30X30X7H

54833043000

Unavailable

9

IDLE GEAR 5.G VERSION ''E''

M3233005058

Unavailable

10

SOLID GEAR 2.G VERSION ''E''

M3233002028

Unavailable

11

THRUST WASHER SOLID GEAR 2.G

M3233002001

Unavailable

12

RETAINING RING W20

M3233002002

Unavailable

13

hex lobe countersunc screw M5x

0019050106S

Unavailable

15

GROOVED BALL BEAR. TM 16004 C3

0625160040

Unavailable

16

SPACER SHIM 21X42X0.2

77233088000

Unavailable

17

RETAINING PLATE F. CS BEARING

75030085000

Unavailable

18

BALL BEARING 6205 C3 NTN

0625062054

Unavailable
