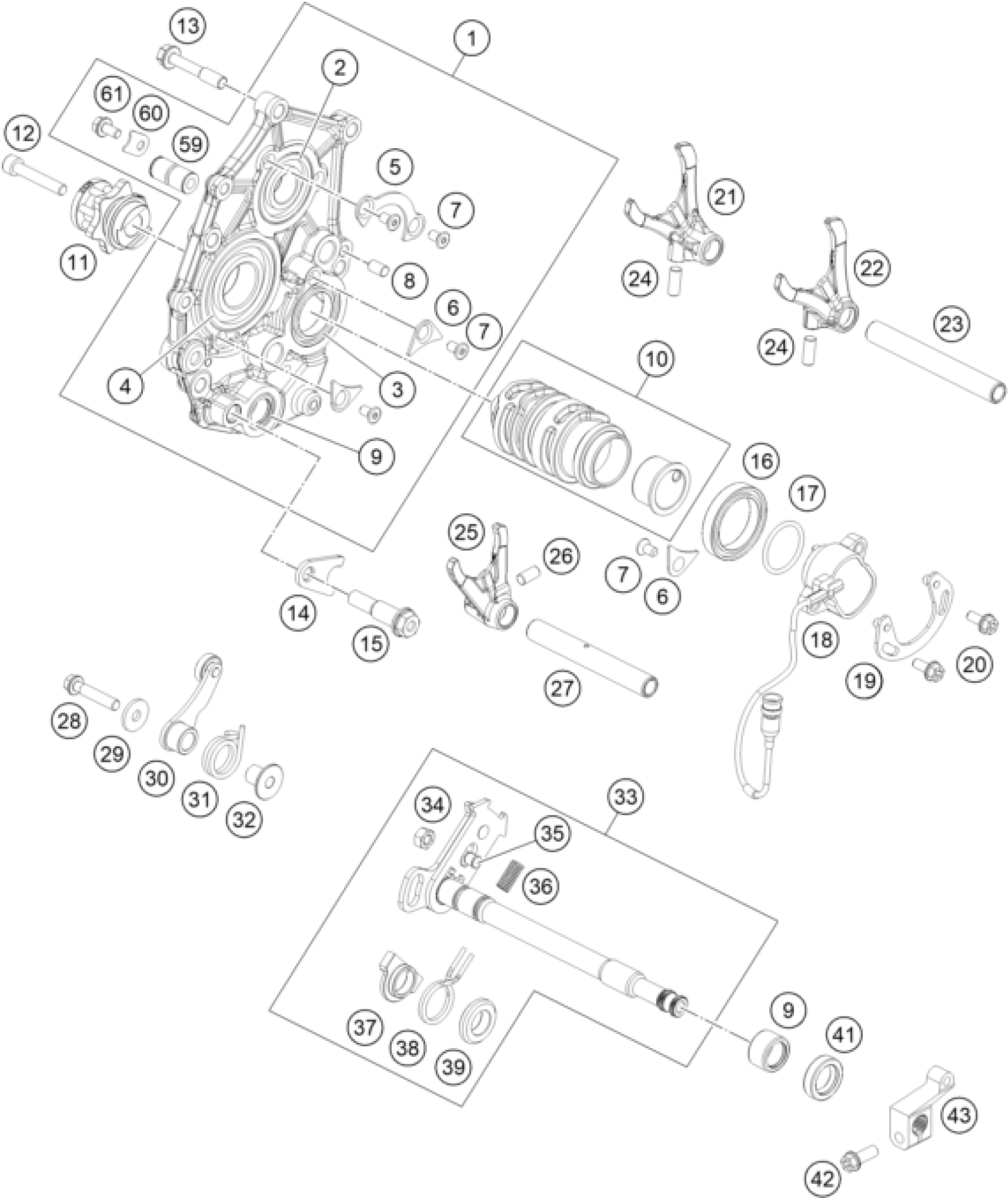

KTM RC 250 R 2014 SHIFTING MECHANISM Diagram

#

Description
Price

1

BEARING SHIEL CPL.

M3233080144

Unavailable

2

BALL BEARING 6203 JR2 C3

0625062035

Unavailable

3

BALL BEARING 61805 C3

0625618050

Unavailable

4

BALL BEARING 6205 C3 NTN

0625062054

Unavailable

5

TAB WASHER BEARING COUNT.SHAFT

78033132000

Unavailable

6

RETAINING PLATE F. CS BEARING

75030085000

Unavailable

7

hex lobe countersunc screw M5x

0019050106S

Unavailable

8

NEEDLE ROLLER ZRB 6X10

0402061000

Unavailable

9

needle sleeve HK 1412 14x20x12

54632095000

Unavailable

10

SELECTOR DRUM CPL.

M3234012233

Unavailable

11

SHIFTING ADJUSTMENT ASSY

M3234013000

Unavailable

12

AH SCREW DIN0912-M 6X35

0912060353

Unavailable

13

SCRW M7-1,0X38

77330067138

Unavailable

14

BRACKET

M3234016200

Unavailable

15

THRUST BOLT

M3234017200

Unavailable

16

BALL BEARING 61806

0625061806

Unavailable

17

o-ring 24.00x2.50 Viton

07700240251

Unavailable

18

GEAR-POSITION SENSOR

60211023100

Unavailable

19

BRACKET

M3434012102

Unavailable

20

HH collar screw M5x12 TX30

0025050126

Unavailable

21

SELECTOR FORK 1G/3G

M3234001000

Unavailable

22

SELECTOR FORK 2G/4G

M3234002000

Unavailable

23

SHIFT RAIL 1G/4G/2G/3G

M3234021000

Unavailable

24

NEEDLE ROLLER DIN5402 6X14,8

0402061480

Unavailable

25

SELECTOR FORK 5G/6G

M3234003000V01

Unavailable

26

CYLINDER ROLLER 6X12

0402060120

Unavailable

27

SHIFT RAIL 5G/6G

M3234020000

Unavailable

28

HH collar screw M6x30 TX30

0025060306

Unavailable

29

WASHER 6,2X18X2

50232050000

Unavailable

30

STOP LEVER ASSY

M3234024000V01

Unavailable

31

STOP LEVER SPRING

M3234023000V02

Unavailable

32

BUSH STOP LEVER

M3234022000V01

Unavailable

33

SHIFT SHAFT CPL.

M3234005033

Unavailable

34

Hex. nut DIN 934 M6

0934060003

Unavailable

35

ADJUSTING SCREW M6

M3234007002

Unavailable

36

PRESSURE SPRING

M3234005054V01

Unavailable

37

OUTER SPRING GUIDE

M3234014000V10

Unavailable

38

LEG SPRING

M3234015000V01

Unavailable

39

INNER SPRING GUIDE

M3234014000V12

Unavailable

41

SHAFT SEAL RING 14X24X6B VITON

0760142461

Unavailable

42

HH collar screw M6x20 TX30

0025060206

Unavailable

43

SHIFT SHAFT LEVER M6

B3334030000

Unavailable

59

BUSHING PIN

77038013100

Unavailable

60

AXIAL-CIRCLIP

77238061050

Unavailable

61

HH collar screw M5x10 TX30

0025050106

Unavailable
