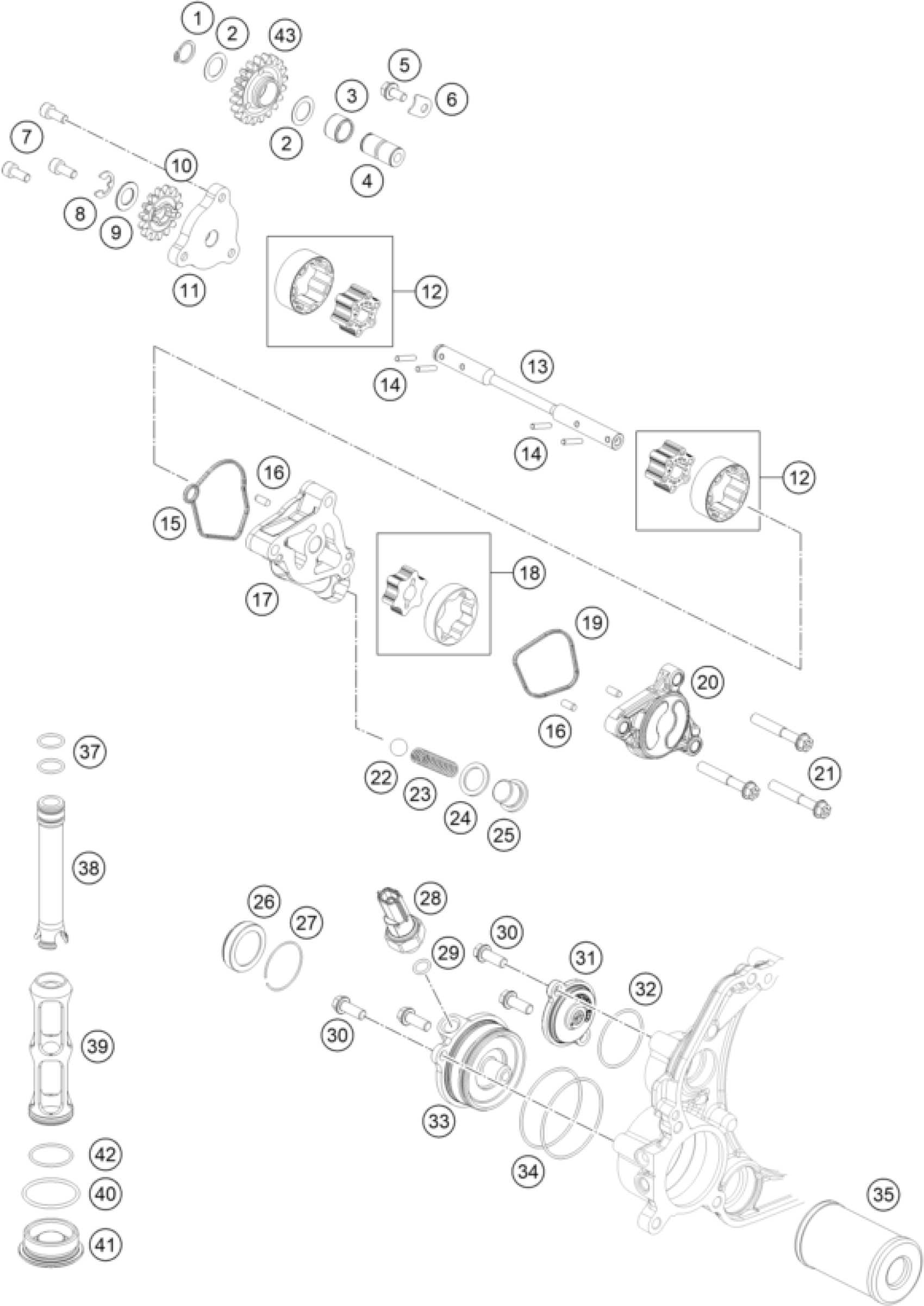

KTM RC 250 R 2014 LUBRICATING SYSTEM Diagram

#

Description
Price

8

retaining washer DIN 6799 - 8

0799080000

Unavailable

9

WASHER 10,2X18X1

77338023000

Unavailable

1

retaining ring DIN 471 12x1

0471120010

Unavailable

2

SHIM WASHER DIN0988-12X18X0,50

0988121805

Unavailable

3

NEEDLE ROLLER K12X15X10

0405121510

Unavailable

4

BUSHING PIN

77038013100

Unavailable

5

HH collar screw M5x10 TX30

0025050106

Unavailable

6

AXIAL-CIRCLIP

77238061050

Unavailable

7

AH SCREW DIN0912-M 5X12

0912050123

Unavailable

10

DRIVE WHEEL OIL PUMP T15

M3238001000

Unavailable

11

COVER SUCTION PUMP

M3238008000

Unavailable

12

SUCTION PUMP CPL.

77338107100

Unavailable

13

OIL PUMP SHAFT

M3238002000

Unavailable

14

NEEDLE ROLLER DIN5402 3X15,8

0402031580

Unavailable

15

GASKET PRESSURE PUMP CASE

77338012000

Unavailable

16

CYLINDER PIN DIN6325- 4X10

0325040100

Unavailable

17

PRESSURE PUMP CASE

77338010100

Unavailable

18

PRESSURE PUMP PEEK D=9MM

77338207100M01

Unavailable

19

GASKET PRESSURE PUMP COVER

77338112000

Unavailable

20

PRESSURE PUMP COVER

77338013100

Unavailable

21

HH collar screw M6x40 TX30

0025060406

Unavailable

22

BALL D=10 DIN 5401

0401100000

Unavailable

23

COIL SPRING

77338026100

Unavailable

24

CU-SEAL RING 14X20X1,5 LC8 02

0603142016

Unavailable

25

PLUG SCREW M14X1,5 ALU AH

60038033050

Unavailable

26

OIL LEVEL GLASS VITON

78030095100

Unavailable

27

CIRCLIP OIL LEVEL GLASS 03

61030019050

Unavailable

28

oil pressure switch ''BITRON''

61238091000

Unavailable

29

O-RING 8,00X1,5 NBR 70

0770080015

Unavailable

30

HH collar screw M6x16 TX30

0025060166

Unavailable

31

OIL FILTER COVER 08

77338041200

Unavailable

32

O-RING 33,05X1,78

07703305178

Unavailable

33

OIL FILTER COVER

M3238041000V01

Unavailable

34

O-RING 48,00X1,50

0770048015

Unavailable

35

OIL FILTER WITH GASKET 06

77038005044

Unavailable

37

O-RING 13X1,5

0770013015

Unavailable

38

OIL SUCTION SPOUT

M3238014000

Unavailable

39

OIL SUCTION SCREEN

M3238016000

Unavailable

40

O-RING 29X2 VITON

0770290020

Unavailable

41

PLUG OIL STRAINER

M3238019000

Unavailable

42

O-RING 23,00X1,50 NBR 70

0770023015

Unavailable

43

INTERMEDIATE GEAR OILPUMP T20

M3238003000

Unavailable
