Description

Price

1

DASHBOARD CPL.

B3314069000

Unavailable

4

FOAM PLATE

B3314003000

Unavailable

5

DASH SUPPORT

B3314002001

Unavailable

7

WASHER DIN9021-A 4,3

0021040003

$1.49

8

EJOT Delta PT K40x12

0081040121

$3.08

9

CONSOLE

B3314001001

Unavailable

10

CABLE TIE CLAMP

B3311090000

Unavailable

11

HH COLLAR SCREW M 5X12 WS=6

0014050123

$2.05

12

HH COLLAR SCREW M 5X50 WS=8

0015050503

$2.05

13

SWITCH ON/OFF RALLYE 03

58511069100

Unavailable

14

FLASHER INDICAT.LIGHT GREEN'98

58011024300

$6.72

15

INDICATOR LIGHT EFI

81214085000

Unavailable

16

OIL INDICATOR LIGHT RED

58011025000

$6.44

17

BULB 12V 2,3W (W2X4,6D)

49111425200

$2.05

18

CABLE INDICATOR LIGHT

72014096000

$13.36

19

SPEEDOMETER SENSOR

90114068000

Unavailable

20

SOCKET HEAD SCREW M4X8 DIN0912

0912040083

Unavailable

21

PRESS NUT M5

54603055052

Unavailable

21

KEY

90111067000

$130.05

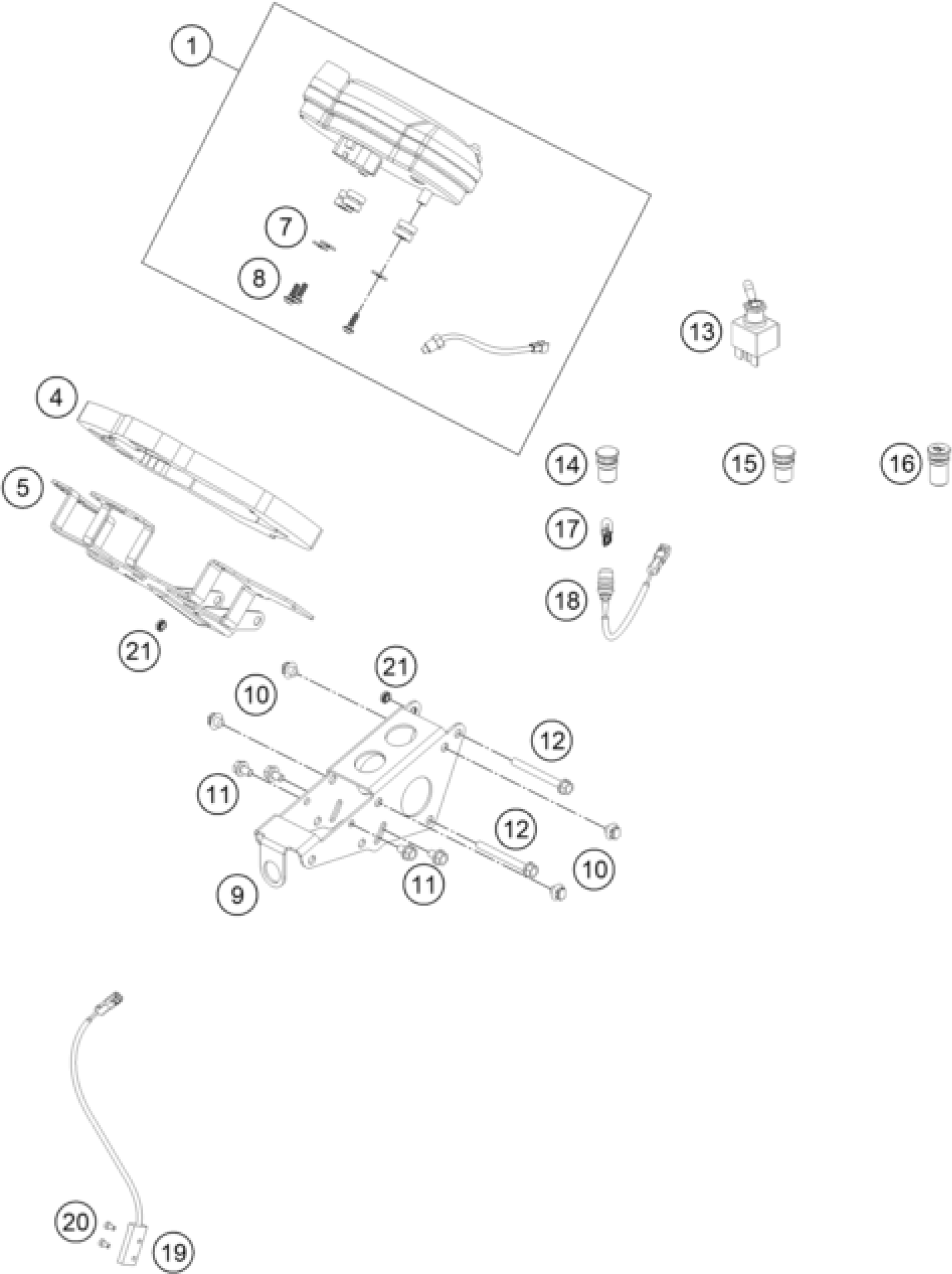

KTM RC 250 R 2014 INSTRUMENTS / LOCK SYSTEM Diagram

DASHBOARD CPL.

FOAM PLATE

DASH SUPPORT

WASHER DIN9021-A 4,3

EJOT Delta PT K40x12

CONSOLE

CABLE TIE CLAMP

HH COLLAR SCREW M 5X12 WS=6

HH COLLAR SCREW M 5X50 WS=8

SWITCH ON/OFF RALLYE 03

FLASHER INDICAT.LIGHT GREEN'98

INDICATOR LIGHT EFI

OIL INDICATOR LIGHT RED

BULB 12V 2,3W (W2X4,6D)

CABLE INDICATOR LIGHT

SPEEDOMETER SENSOR

SOCKET HEAD SCREW M4X8 DIN0912

PRESS NUT M5

KEY
