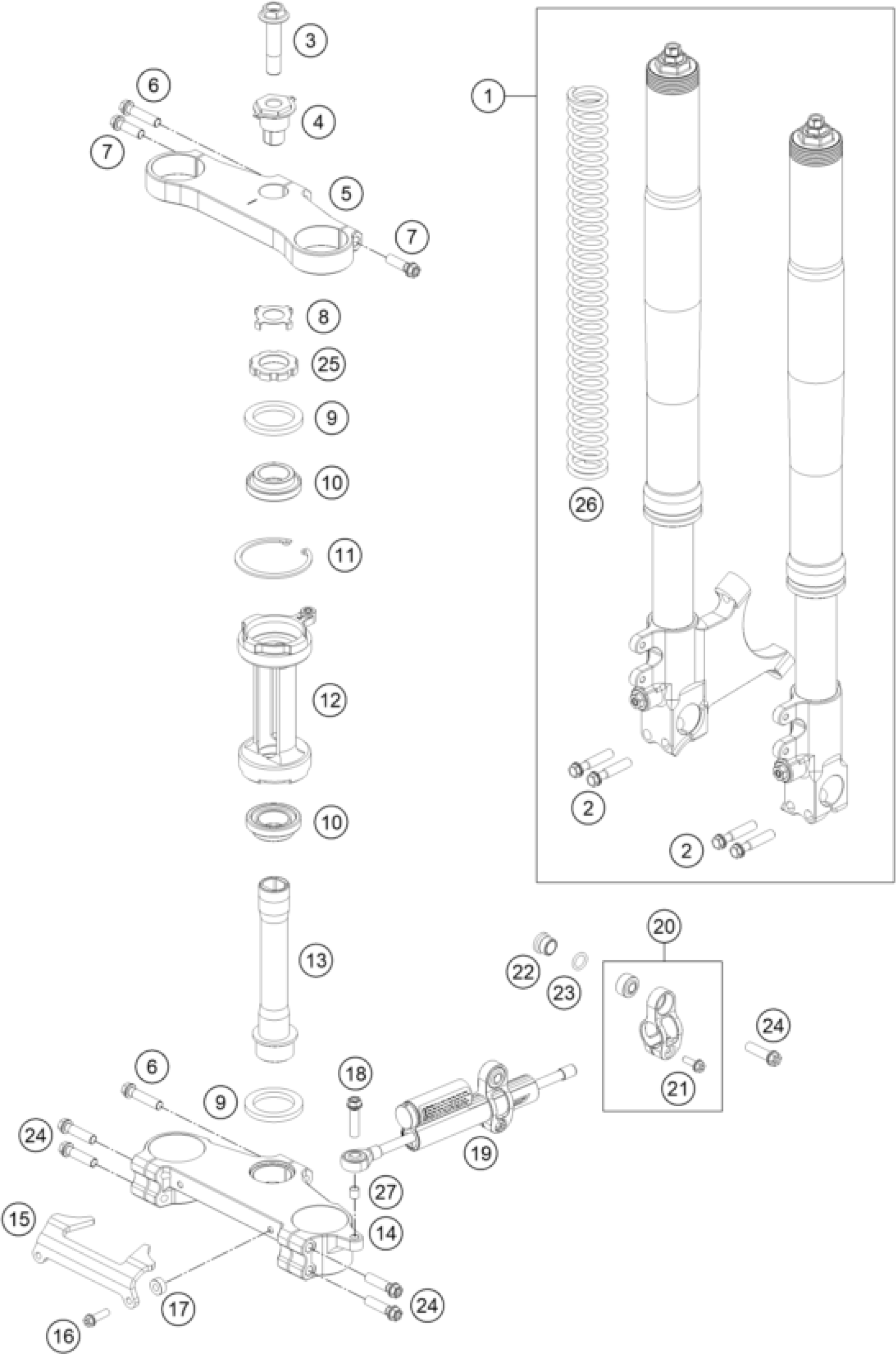

KTM RC 250 R 2014 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

FORK LEG SET WP RCMA 3548

07182M01

Unavailable

2

HH COLLAR SCREW M8X40 TX40

0025080406

Unavailable

3

STEERING STEEM BOLT

B3301030000

Unavailable

4

STEERING STEEM INSERT

B3301002000

Unavailable

5

TRIPLE CLAMP TOP OFFSET 29

B3301017029

Unavailable

6

HH collar screw M8x35 TX40

0025080356

Unavailable

7

HH collar screw M8x25

0025080256

Unavailable

8

STOPPER STEERING NUT

GP301036000

Unavailable

9

STEERING DUST SEAL

M3301024000

Unavailable

10

BEARING SF05A26PX1 NTN

GP3010320200

Unavailable

11

Steering Insert Circlip

0472062200

Unavailable

12

STEERING HEAD INSERT 0MM/0°

M3203020100

Unavailable

12

STEERING HEAD INSERT 0MM/0,5°

M3203020050

Unavailable

12

STEERING HEAD INSERT 0MM/1°

M3203020110

Unavailable

13

STEERING STEEM

B3301001100

Unavailable

14

TRIPLE CLAMP BOTTOM 29MM

B3301023029

Unavailable

15

STEERING STOP

B3301025000

Unavailable

16

HH collar screw M6x20 TX30

0025060206

Unavailable

17

STEERING STOP SPACER

B3301026000

Unavailable

18

SPECIAL SCREW M8X35 ISA45

69004030010

Unavailable

19

STEERING DAMPER CPL.

16181M50S

Unavailable

20

CLAMP CPL. + SCREW 08

15080120S

Unavailable

21

HH collar screw M5x16 TX30

0025050166

Unavailable

22

STEERING DAMPER BUSH

B3301061000

Unavailable

23

O-RING 11,3 X2,4 SILICON

0770116241

Unavailable

24

HH collar screw M8x30

0025080306

Unavailable

25

CASTELLATED NUT

GP301035000

Unavailable

26

FORK SPRING STIFFNESS K=5,0

70409001

Unavailable

26

FORK SPRING STIFFNESS K=5,5

70409002

Unavailable

26

FORK SPRING STIFFNESS K=6

70409003

Unavailable

26

FORK SPRING STIFFNESS K=6,5

70409004

Unavailable

26

FORK SPRING STIFFNESS K=7

70409005

Unavailable

27

BUSHING 8,2 X 12 X 10

57103225000

Unavailable
