Partiron

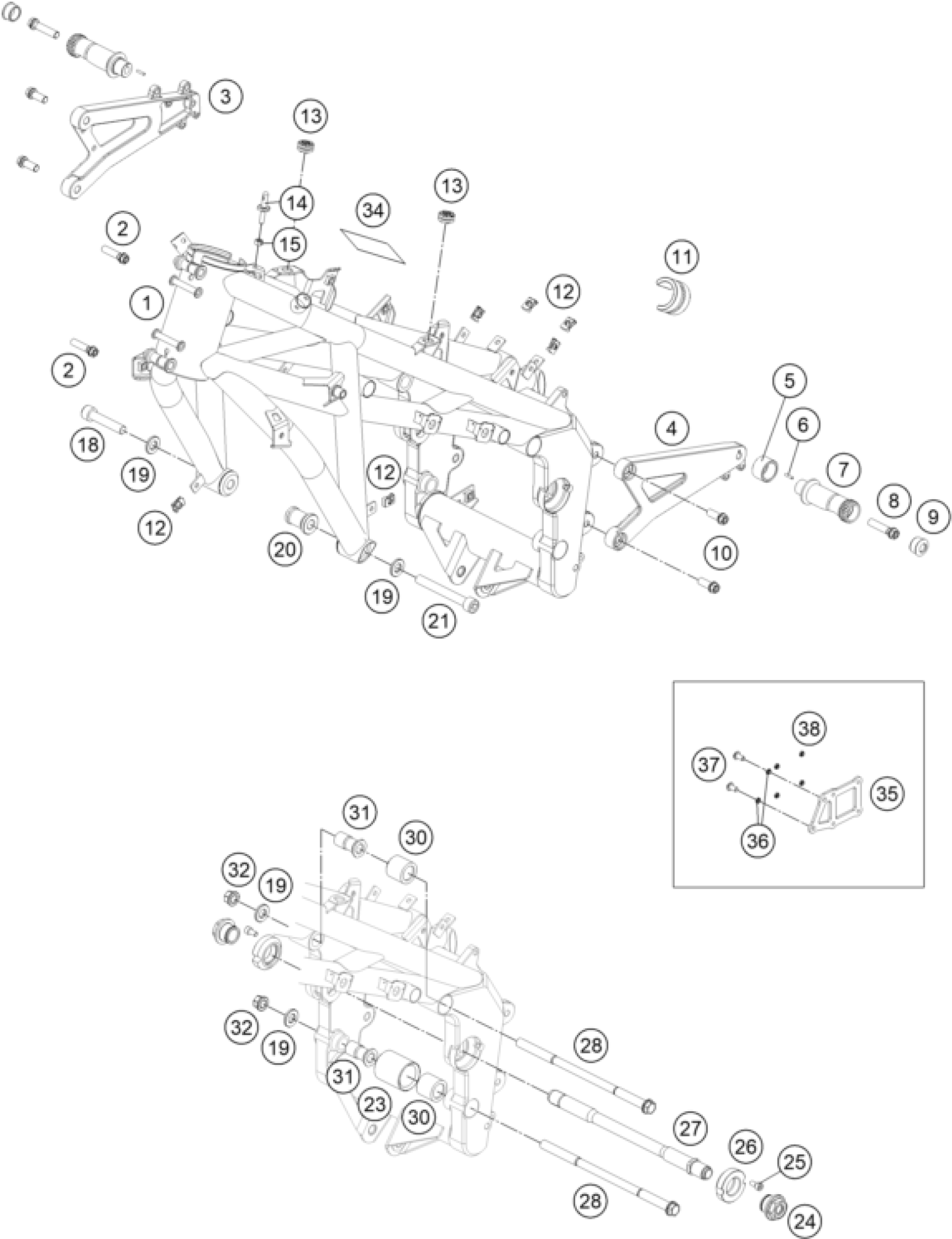

KTM RC 250 R 2014 FRAME Diagram

#

Description
Price

26

PIVOT ADJUSTMENT +/- 3MM

B3303093000

Unavailable

1

FRAME ORANGE

B330300100004

Unavailable

3

FOOTREST PLATE R/S

B3303039000

Unavailable

4

FOOTREST PLAT L/S

B3303038000

Unavailable

5

Bushing

B3303042000

Unavailable

7

FOOTREST

B3303041000

Unavailable

8

HH collar screw M8x35 TX40

0025080356

$4.11

9

FOOTPEG CAP

M3203040201

Unavailable

10

HH collar screw M8x20 TX40 SL

0025080206S

$2.05

12

clip nut M5

69008021080

$3.08

13

DAMP. COMPONENT ABS MODUL

62142041000

$4.11

14

AIRBOX PIN

M3303070000

Unavailable

15

HEXAGON NUT DIN0934-M 5

0934050003

$2.05

26

PIVOT ADJUSTMENT +/- 0MM

B3303090000

Unavailable

26

PIVOT ADJUSTMENT +/- 1MM

B3303091000

Unavailable

26

PIVOT ADJUSTMENT +/- 2MM

B3303092000

Unavailable

26

PIVOT ADJUSTMENT +/- 4MM

B3303094000

Unavailable

28

ENGINE BRAC. SCREW M10X206 03

60003014000

$17.76

30

REAR ENGINE SPACER BOTTOM

M3303010000

Unavailable

31

ENGINE SPANNER R/S

B3303012000

Unavailable

32

hex collar nut M10 WS13

60036078200

$3.08

33

PRESS NUT M5

54603055052

Unavailable

34

ADH. FOIL TRANSP. 80X80 MM 04

50307012000

$2.05

35

BRACKET FOR LAP TRIGGER

B3303400001

Unavailable

36

PRESS NUT M5

54603055052

Unavailable

37

BUTT. HEAD SCREW ISO7380 M5X10

0738050101

Unavailable

38

PRESS NUT M3

M3211000042

Unavailable

11

SPACER FUEL TANK 05

61007014000

$6.63

2

HH COLLAR SCREW M8X40 TX40

0025080406

$4.11

18

AH SCREW DIN0912-M10X45

0912100453

$3.08

24

NUT FOR SWING ARM PIVOT

B3303083000

Unavailable

19

WASHER

B3303013000

Unavailable

20

FRONT ENGINE SPACER L/S

B3303016000

Unavailable

21

SOCKET HEAD SCREW M10X80

0912100803

Unavailable

23

CHAIN ROLLER

M3303011000

Unavailable

25

AH SCREW DIN0912-M 5X10

0912050103

$1.49

6

PIN 2,5X11,8 G2

GP3032170000

Unavailable

27

SWING ARM AXLE

M3203081100

Unavailable
