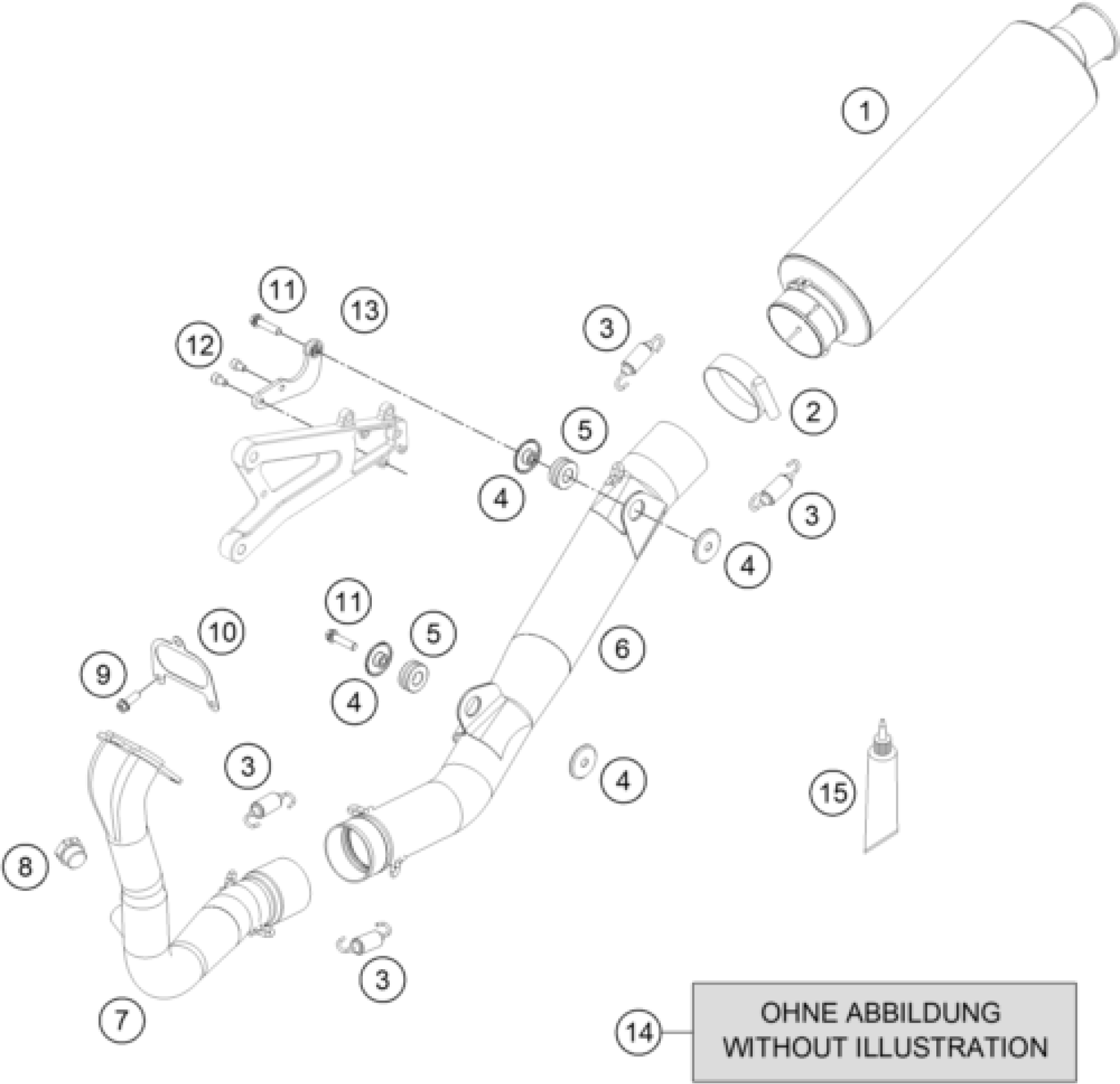

KTM RC 250 R 2014 EXHAUST SYSTEM Diagram

#

Description
Price

9

HH collar screw M6x16 TX30

0025060166

Unavailable

1

MUFFLER EVO4 PF 105+2dB

B3305079000

Unavailable

2

CLAMP

B3305078050

Unavailable

3

EXHAUST-SPRING SMALL W. RUBBER

57305016100

Unavailable

4

Exhaust bush

B3305069050

Unavailable

5

RUBBER MOUNTING EXHAUST

B3305069000

Unavailable

6

LINK PIPE EVO4 PR

B3305078000

Unavailable

7

HEADER TUBE EVO4

M3205008100

Unavailable

8

LAMBDA PLUG INCL. SEAL RING

B3305080000

Unavailable

10

GASKET EXHAUST FLANGE

M3236041000

Unavailable

11

HH collar screw M6x20 TX30

0025060206

Unavailable

12

SHCS DIN 912 M5x8

0912050083

Unavailable

13

EXHAUST SUPPORT R/S

B3303040000

Unavailable

14

MUFFLER REPACK KIT

B3305079050

Unavailable

14

MUFFLER SLEEVE REPAIR KIT

B3305079060

Unavailable

14

dB INSERT VL28

B3305079028

Unavailable

14

dB INSERT VL32KR

B3305079032

Unavailable

15

CERAMIC MOUNTING GREASE

SB905099060

Unavailable
