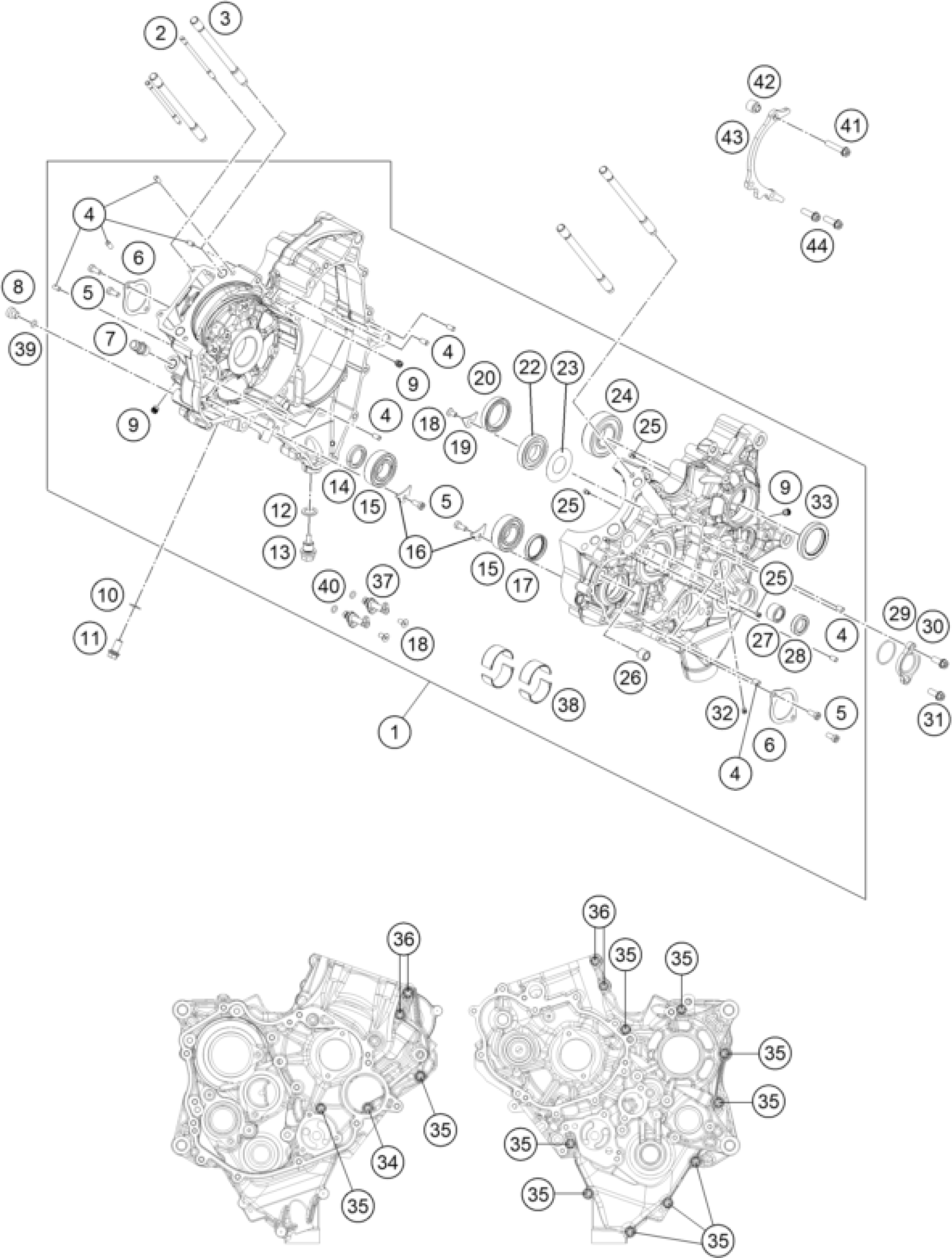

KTM RC 250 R 2014 ENGINE CASE Diagram

#

Description
Price

41

HH collar screw M6x35 TX30

0025060356

Unavailable

42

DISTANCE SLEEVE

M3236018050

Unavailable

43

CHAIN FAIL. PROTECTION

M3436018100

Unavailable

1

ENGINE CASE CPL.

M3330000233

Unavailable

2

STUD M5

M3230044000

Unavailable

3

STUD SCREW M10X1,25

77230044000

Unavailable

4

needle roller DIN 5402 5x9.8

0402050980

Unavailable

5

CYLIND. SCR. DIN6912 M5X12 8.8

0984050123S

Unavailable

6

BRACKET CRANKSHAFT BEARING

M3230084000

Unavailable

7

BLEEDER FLANGE M12X1,5 WS=13

59030022100

Unavailable

8

PLUG M8X1 DIN 908

0908080013

Unavailable

9

SCREW PLUG

59030296000

Unavailable

10

COPPER Gask.DIN7603- 8.2X13X1

0603082131

Unavailable

11

HH COLLAR SCREW M8X16 TX40

0025080166

Unavailable

12

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

13

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

Unavailable

14

SHAFT SEAL RING 20X28X5 HN2390

M3230060000

Unavailable

15

BALL BEARING 6004 TN9 C4

0625060042

Unavailable

16

BRACKET BALANCER SHAFT BEARING

M3230087000

Unavailable

44

HH collar screw M6x16 TX30

0025060166

Unavailable

17

SHAFT SEAL RING 25X32X5 HN2390

M3230059000

Unavailable

18

hex lobe countersunc screw M5x

0019050106S

Unavailable

19

RETAINING PLATE F. CS BEARING

75030085000

Unavailable

20

BALL BEARING 61806

0625061806

Unavailable

22

GROOVED BALL BEAR. TM 16004 C3

0625160040

Unavailable

23

SPACER SHIM 21X42X0.2

77233088000

Unavailable

24

cylindrical roller bearing NJ2

49030023000

Unavailable

25

OIL JET ''60'' M4

80030058060

Unavailable

26

NEEDLE BUSH HK 0810 DIN 618

0618081210

Unavailable

27

needle sleeve HK 1412 14x20x12

54632095000

Unavailable

28

SHAFT SEAL RING 14X24X6B VITON

0760142461

Unavailable

29

O-ring 27x1,5 Viton70 green IS

50180217

Unavailable

30

COVER OIL DISTRIBUTOR

M3238042000

Unavailable

31

HH collar screw M6x12 TX30

0025060126

Unavailable

32

JET 125

75030058000

Unavailable

33

SHAFT SEAL RING 32X45X7 BSLNBR

0760324571

Unavailable

34

HH collar screw M6x50 TX30

0025060506

Unavailable

35

HH collar screw M6x55 TX30

0025060556

Unavailable

36

HH COLLAR SCREW M6X65 TX30

0025060656

Unavailable

37

PISTON NOZZLE 0,7

M3430063070

Unavailable

38

MAIN BEARING SHELL YELLOW

M3230082004

Unavailable

38

MAIN BEARING SHELL GREEN

M3230082005

Unavailable

38

MAIN BEARING SHELL BROWN

M3230082006

Unavailable

39

O-ring 6,00x1,50 NBR 70

0770060015

Unavailable

40

O-RING 5,0X1,5

0770050015

Unavailable
