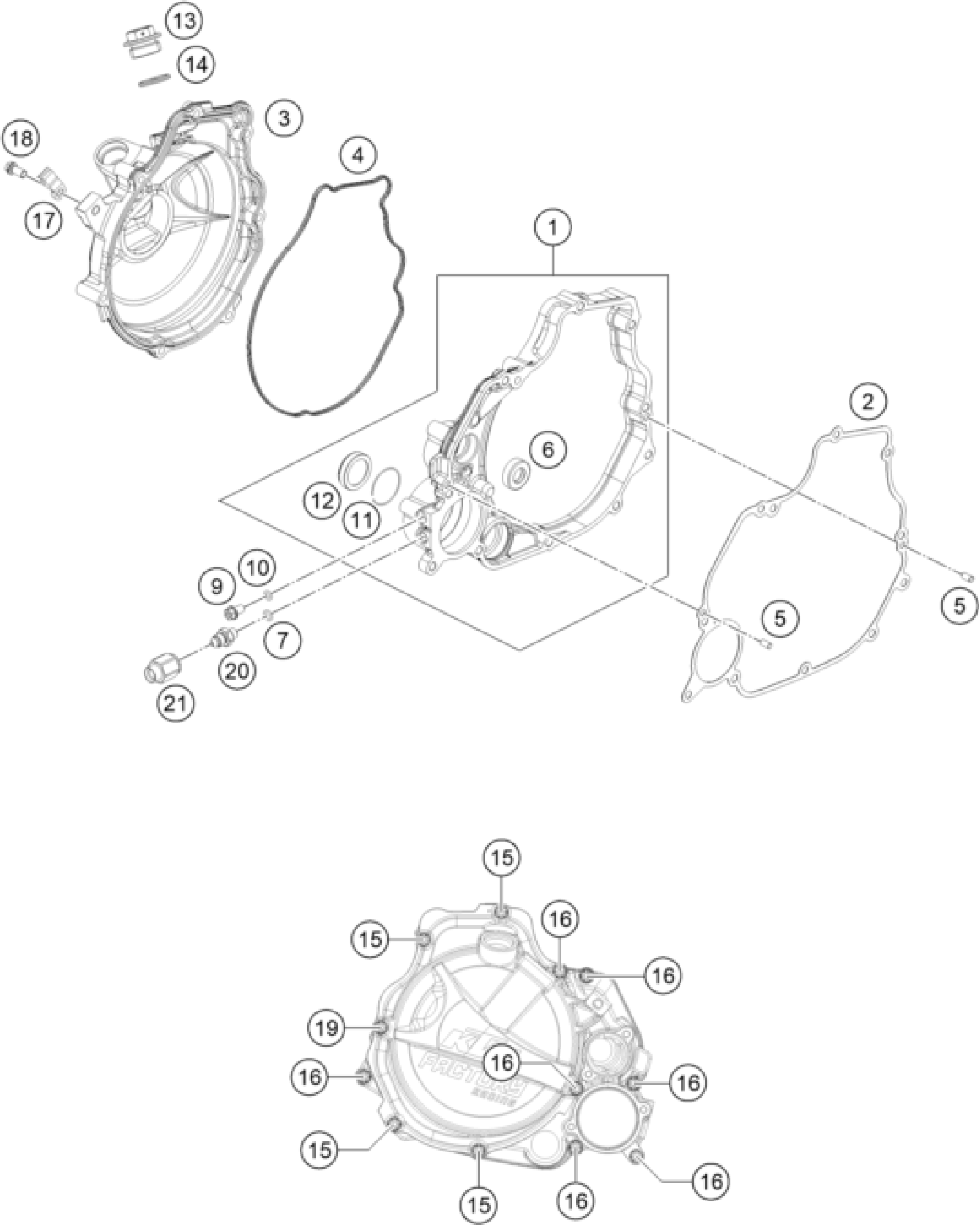

KTM RC 250 R 2014 CLUTCH COVER Diagram

#

Description
Price

19

HH collar screw M6x60 TX30

0025060606

Unavailable

1

CLUTCH COVER CPL.

M3230001044

Unavailable

2

CLUTCH COVER GASKET

M3230025000V01

Unavailable

3

OUTER CLUTCH COVER FT

M3430085000

Unavailable

4

OUTER CLUTCH COVER GASKET

M3230085001

Unavailable

5

needle roller DIN 5402 5x9.8

0402050980

Unavailable

6

SHAFT SEAL RING 12X24X7 PTFE

0760122407

Unavailable

7

O-ring 6,00x1,50 NBR 70

0770060015

Unavailable

9

HH collar screw M6x10 TX30

0025060106

Unavailable

10

O-RING 5,0X1,5

0770050015

Unavailable

11

CIRCLIP OIL LEVEL GLASS 03

61030019050

Unavailable

12

OIL LEVEL GLASS VITON

78030095100

Unavailable

13

OILPLUG

SB806450200

Unavailable

14

O-RING 19,00X3,00 NBR

0770191015

Unavailable

15

HH collar screw M6x50 TX30

0025060506

Unavailable

16

HH collar screw M6x35 TX30

0025060356

Unavailable

17

SUPPORT CLUTCH CABLE

M3432045000V01

Unavailable

18

HH COLLAR SCREW M8X16 TX40

0025080166

Unavailable

20

ADAPTER SS M8X1

M3438006000

Unavailable

21

CLOSURE CAP D03

M3438007000

Unavailable
