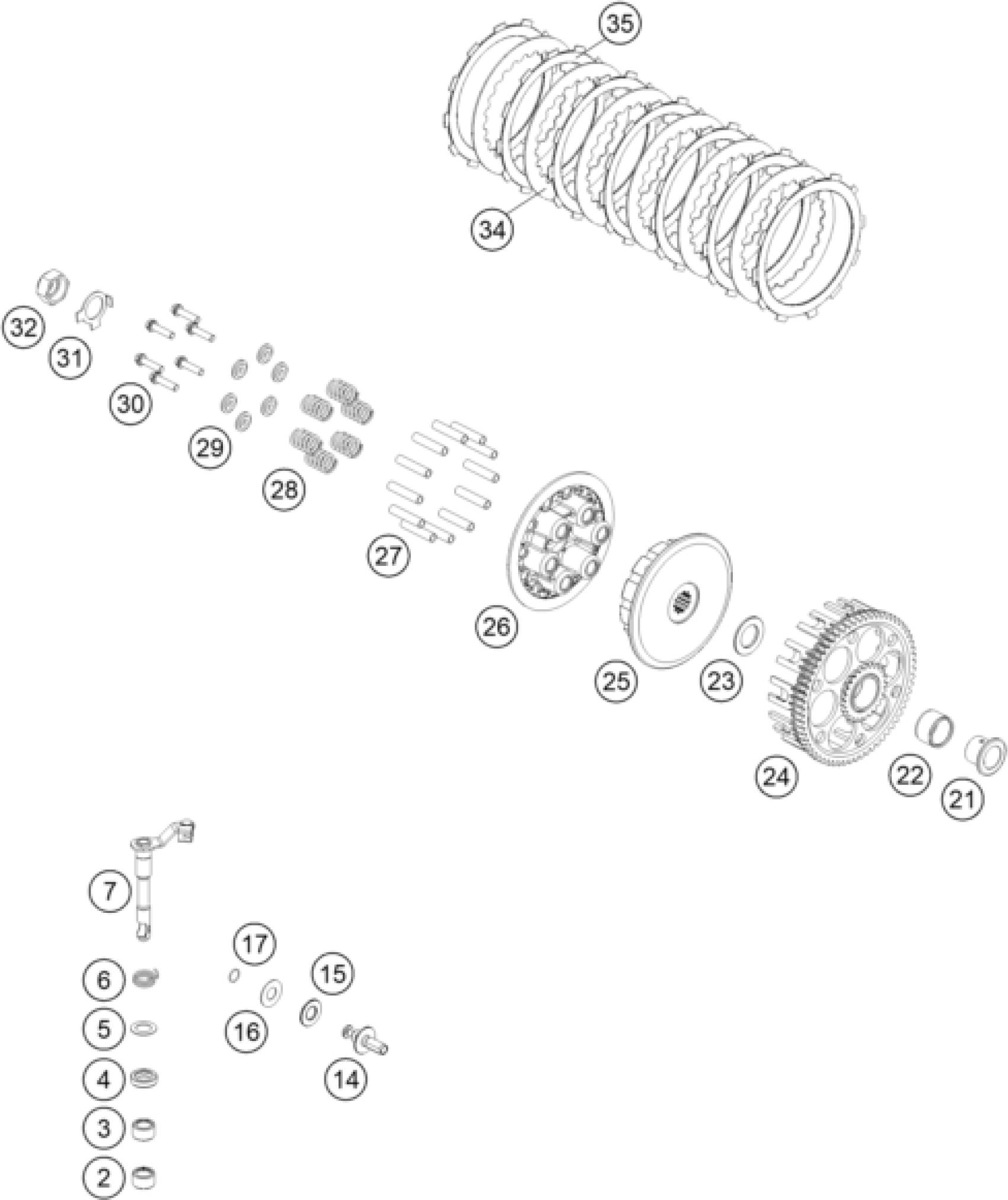

KTM RC 250 R 2014 CLUTCH Diagram

#

Description
Price

2

NEEDLE BEARING HK 1210

50232095000

$5.64

4

SHAFT SEAL RING 14X24X6B VITON

0760142461

$6.63

5

SHIM

M3432047000

Unavailable

6

RETURN SPRING

M3432046000V01

Unavailable

7

CLUTCH RELEASE SHAFT

M3432044033

Unavailable

14

PRESSURE PIECE

M3432057000

Unavailable

15

AXIAL NEEDLE BEARING AXK 1226

54637097200

$10.18

16

AXIAL WASHER AS1226 12X26X1

54637098200

$5.23

17

CIRCLIP DIN7993-RW12

0993012000

$3.08

21

BEARING SLEEVE

M3232096000

Unavailable

22

NEEDLE BEARING

50032095000

Unavailable

23

WASHER PRIMARY DRIVE

M3232097000

Unavailable

24

CLUTCH HUB W. PRIM.WHEEL T64

M3232001001

Unavailable

25

INNER CLUTCH HUB

77232002000

$104.15

26

PRESSURE PLATE

77232003000

$46.65

27

DRIVING SLEEVE D=7,95 L=38

77232004000

$3.08

28

CLUTCH SPRING 2,4X40 200'98

52332005000

$3.08

29

SPRING RETAINER 6,2X12X18X3,6

59032006000

$2.05

30

HH collar screw M6x25 TX30

0025060256

$3.08

31

SHEET METAL LOCK

77232018000

$6.54

32

hex nut M18x1 Std Clutch 2013

M3232019500

Unavailable

34

INTERMEDIATE DISC 1,4MM

M3232010300

Unavailable

35

LINING DISK 2,8MM 03

60032011000

$28.14

3

needle sleeve HK 1412 14x20x12

54632095000

$7.00
