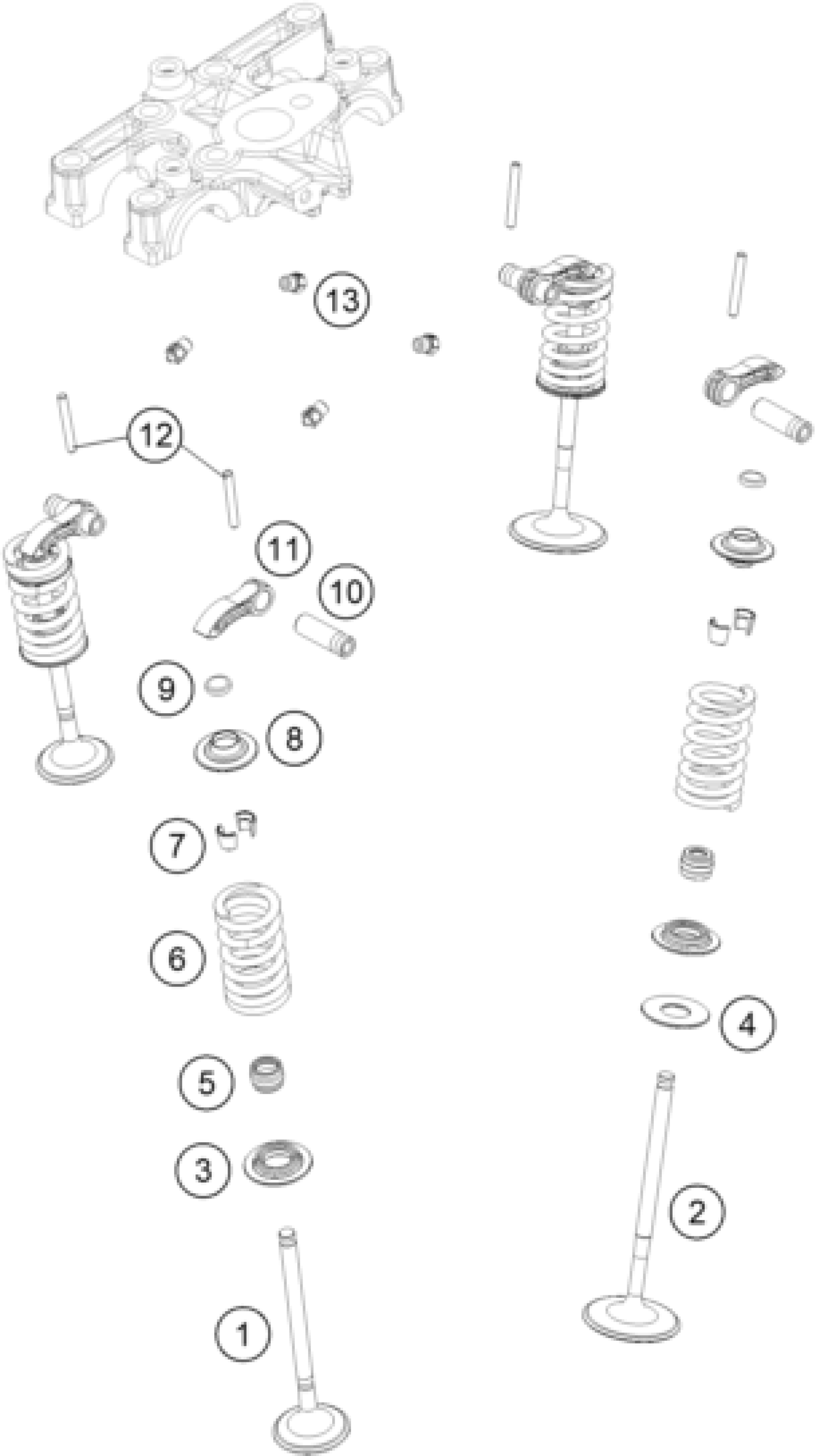

KTM RC 250 R 2013 VALVE DRIVE Diagram

#

Description

Price

1

EXHAUST VALVE

M3236031000

Unavailable

2

INTAKE VALVE

M3236030000V20

Unavailable

3

VALVE SPRING SUPPORT

M3236036000V01

Unavailable

4

WASHER VALVE SPRING SUPPORT

M3236036001

Unavailable

5

VALVE-STEM SEALING

77236027000

$6.82

6

VALVE SPRING EXHAUST NHK T007A

M3236028200

Unavailable

7

VALVE COLLET

77236033000

$3.08

8

VALVE SPRING RETAINER

M3236032000V02

Unavailable

9

SHIM D=8,9/1,72

77036035172

Unavailable

9

SHIM D=8,9/1,76

77036035176

Unavailable

9

SHIM D=8,9/1,80

77036035180

Unavailable

9

SHIM D=8,9/1,84

77036035184

Unavailable

9

SHIM D=8,9/1,88

77036035188

Unavailable

9

SHIM D=8,9/1,92

77036035192

Unavailable

9

SHIM D=8,9/1,96

77036035196

Unavailable

9

SHIM D=8,9/2,00

77036035200

Unavailable

9

SHIM D=8,9/2,04

77036035204

Unavailable

9

SHIM D=8,9/2,08

77036035208

Unavailable

9

SHIM D=8,9/2,12

77036035212

Unavailable

9

SHIM D=8,9/2,16

77036035216

Unavailable

9

SHIM D=8,9/2,20

77036035220

Unavailable

9

SHIM D=8,9/2,24

77036035224

Unavailable

9

SHIM D=8,9/2,28

77036035228

Unavailable

9

SHIM D=8,9/2,32

77036035232

Unavailable

9

SHIM D=8,9/2,36

77036035236

Unavailable

9

SHIM D=8,9/2,40

77036035240

Unavailable

9

SHIM D=8,9/2,44

77036035244

Unavailable

9

SHIM D=8,9/2,48

77036035248

Unavailable

9

SHIM D=8,9/2,52

77036035252

Unavailable

9

SHIM D=8,9/2,56

77036035256

Unavailable

9

SHIM D=8,9/2,60

77036035260

Unavailable

10

CAM FOLLOWER SHAFT

M3236056000

Unavailable

11

CAM FOLLOWER

M3236060000V10

Unavailable

12

NEEDLE BEARING INA NRB 3X23,8

0402032380

Unavailable

13

oil jet 50 M5

60030063050

$9.44
