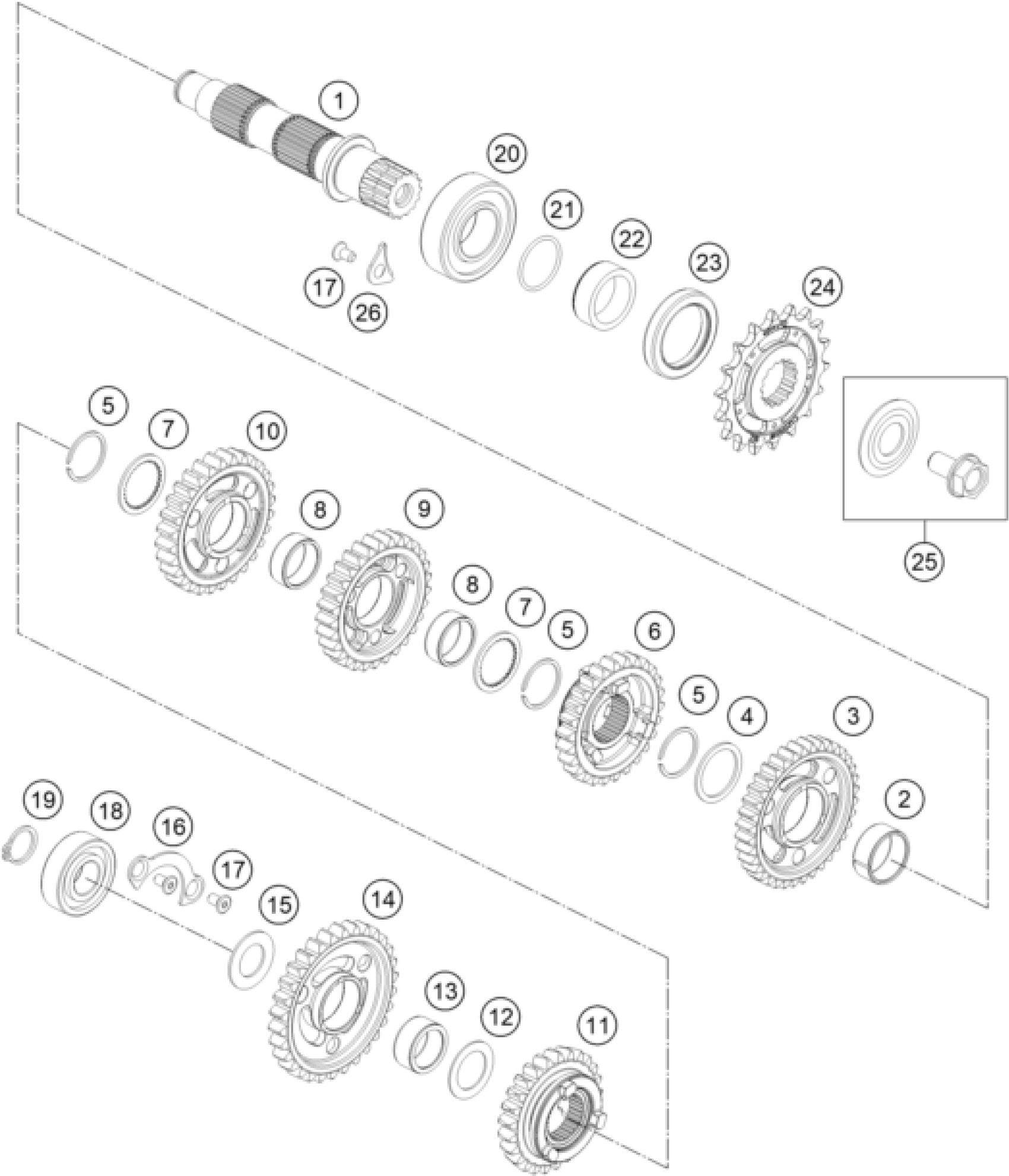

KTM RC 250 R 2013 TRANSMISSION II - COUNTERSHAFT Diagram

#

Description
Price

1

COUNTERSHAFT

77233110000

$134.44

2

NEDDLE BEAR. K24X28X11,9 DIV.

0405242812

$7.28

3

IDLE GEAR 2.G VERSION ''E''

M3233012028

Unavailable

4

STOP DISC 25X31X1,5

54833044000

$5.23

5

CIRCLIP WS24

0417024000

$2.05

6

SLIDING GEAR 5.G VERSION ''E''

M3233015058

Unavailable

7

STOP DISC 25X0,8X30X30X7H

54833043000

$5.23

8

NEEDLE BEAR.K 22X26X10 DIVIDED

0405222611

$11.68

9

IDLE GEAR 4.G VERSION ''E''

M3233014148

Unavailable

10

IDLE GEAR 3.G VERSION ''E''

M3233013138

Unavailable

11

SLIDING GEAR 6.G VERSION ''E''

M3233016068

Unavailable

12

STOP DISC 20,2X30X1

54833080000

$3.08

13

NEEDLE BEARING K 20X26X12

0405202612

$10.93

14

IDLE GEAR 1.G VERSION ''E''

M3233011018

Unavailable

15

STOP DISK 17,2X30X1,3

77233020000

$4.11

16

TAB WASHER BEARING COUNT.SHAFT

78033132000

$5.23

17

hex lobe countersunc screw M5x

0019050106S

$2.05

18

BALL BEARING 6203 JR2 C3

0625062035

$14.48

19

CIRCLIP DIN 0471-17X1, 5

0471170015

$1.49

20

cylindrical roller bearing NJ2

49030023000

$74.42

21

O-RING 25,12X1,78 NBR70

0770020220

$3.08

22

SPACER BUSHING 12MM

54633014100

$20.94

23

SHAFT SEAL RING 32X45X7 BSLNBR

0760324571

$5.23

24

SPROCKET 16T, 415GP

M3233129016

Unavailable

25

SCREW 10.9+SPRING WASHER

59033034044

$7.85

24

SPROCKET 17T, 415GP

M3233129017

Unavailable

24

SPROCKET 18T, 415GP

M3233129018

Unavailable
