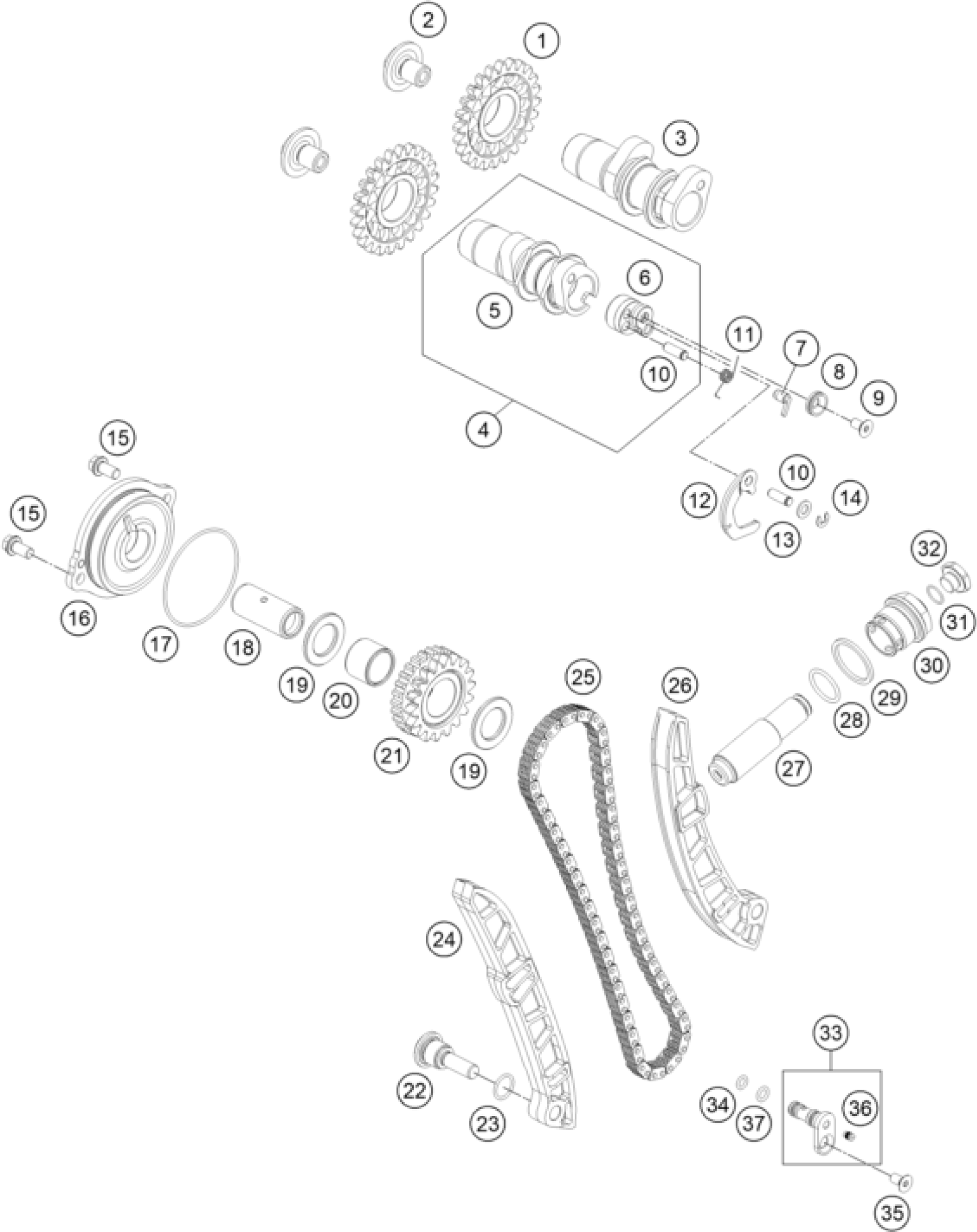

KTM RC 250 R 2013 TIMING DRIVE Diagram

#

Description
Price

30

HOLDING BOLT M24X1,5

77336008000

$20.56

1

CAMSHAFT WHEEL T24

M3236011000V01

Unavailable

3

CAM SHAFT INTAKE

M3236009100

Unavailable

2

FLANGED BOLT M12X1

M3236076000

Unavailable

4

CAM SHAFT EXHAUST CPL.

M3236010144

Unavailable

5

CAM SHAFT EXHAUST TB

M3236010100

Unavailable

6

HOLDER DECO

M3236010102V60

Unavailable

7

CAM DECO

M3236010107V60

Unavailable

8

SPRING SLEEVE DECO

M3236010106V60

Unavailable

9

COUNTERSUNK SCREW ISA25 M5X20

0019050201

$2.05

10

PIN DECO

M3236010103

Unavailable

11

LEG SPRING DECO

M3236010105V60

Unavailable

12

WEIGHT DECO

M3236010104V65

Unavailable

13

WASHER DIN0125-A 5,3

0125050003

$1.49

14

CIRCLIP RA4,0 DIN6799

M3236010109

Unavailable

15

HH collar screw M6x12 TX30

0025060126

$3.08

16

COVER DOUBLE WHEEL

M3236083000V01

Unavailable

17

O-RING 54X1,5

0770054015

Unavailable

18

BEARING PIN

M3236081000V01

Unavailable

19

STOP DISC

M3236082000

Unavailable

20

NEEDLE BEARING K18X22X17

0617182217

Unavailable

21

DOUBLE WHEEL TIMING DRIVE T18

M3236080000V01

Unavailable

22

AXLE CHAIN GUIDE

M3236091000

Unavailable

23

O-RING 12,00X1,50 NBR

0770012015

$1.49

24

CHAIN GUIDE

B3336001000

Unavailable

25

TIMING CHAIN 98XRH2015 92LINKS

M3236013000

Unavailable

26

TENSIONING RAIL

M3236002000V03

Unavailable

27

CHAIN TENSIONER INA F88

M3236078100

Unavailable

28

o-ring 18.00x2.00 NBR70

0770180020

$2.05

29

CU SEAL-RING DIN7603 A24X29X2

0603242920

$3.08

31

o-ring 10.00x1.00 NBR70

0770010010

$2.05

32

HOLDING BOLT

77336008010

$8.31

33

OIL NOZZLE CPL.

M3236013044

Unavailable

34

O-RING 5,0X1,5

0770050015

Unavailable

35

hex lobe countersunc screw M5x

0019050106S

$2.05

36

PLUG KVTLK950040

M3241070000

Unavailable

37

O-ring 6,00x1,50 NBR 70

0770060015

$5.23
