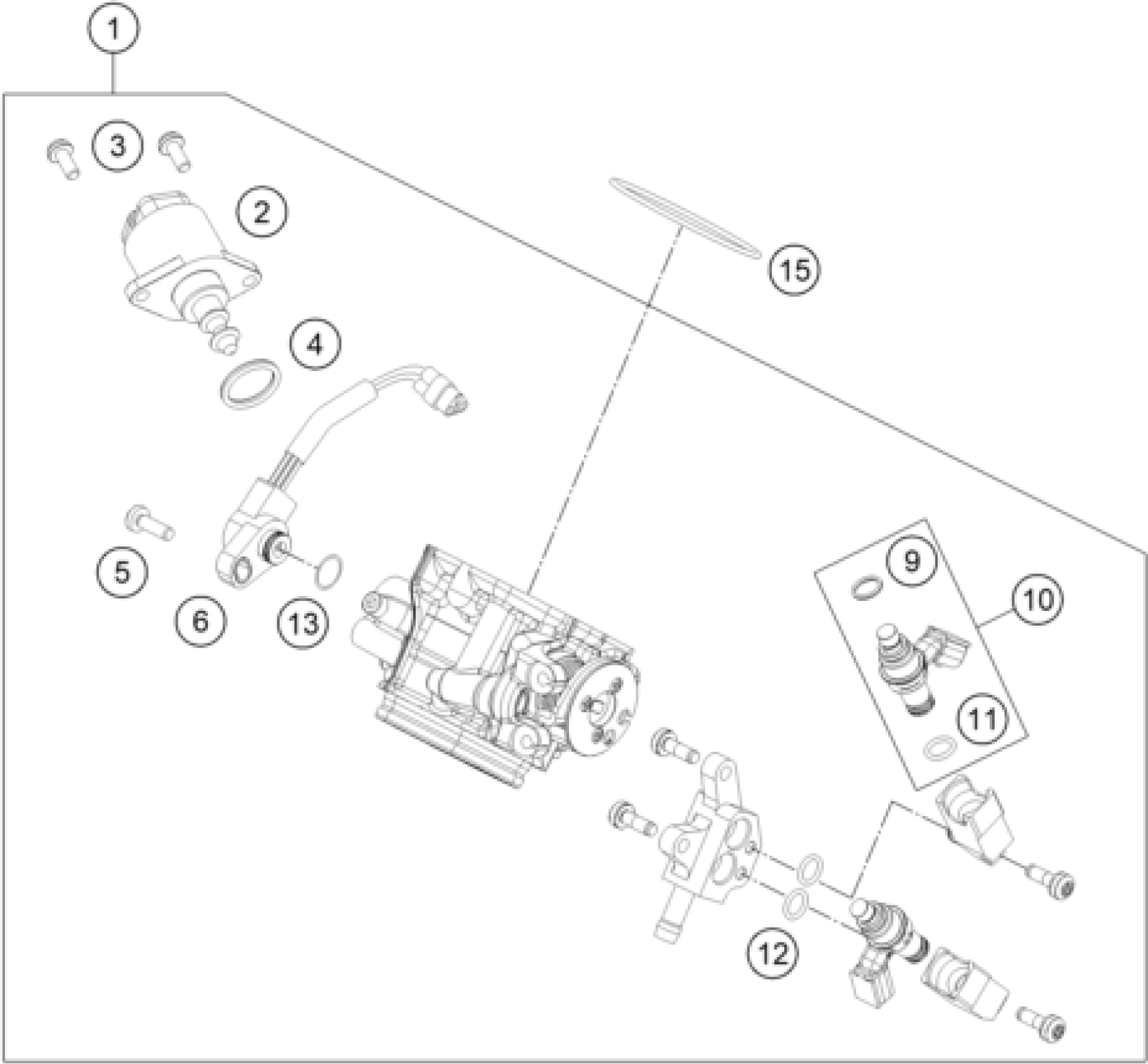

KTM RC 250 R 2013 THROTTLE BODY Diagram

#

Description

Price

15

O-RING 62,00X2,00 VITON

0770062020

Unavailable

5

HH collar screw M5x16 TX30

0025050166

Unavailable

9

SEAL RING

75041023010

Unavailable

13

o-ring 10.00x1.00 NBR70

0770010010

Unavailable

4

O-RING 19X2,5 NBR 70

0770019250

Unavailable

6

THROTTLE POS. SENSOR CPL.

61041077000

Unavailable

10

INJECTOR KIT CPL.

75041023144

Unavailable

11

O-RING 7,2x2,2

75041023020

Unavailable

12

O-RING 7,66X1,78 SILICON

07700766178

Unavailable

2

IDLE ADJUSTER

90141072000

Unavailable

3

CYL. HEAD SCREW DIN6912 M5X15

0012050153

Unavailable

1

THROTTLE BODY CPL.

B3341001044

Unavailable
