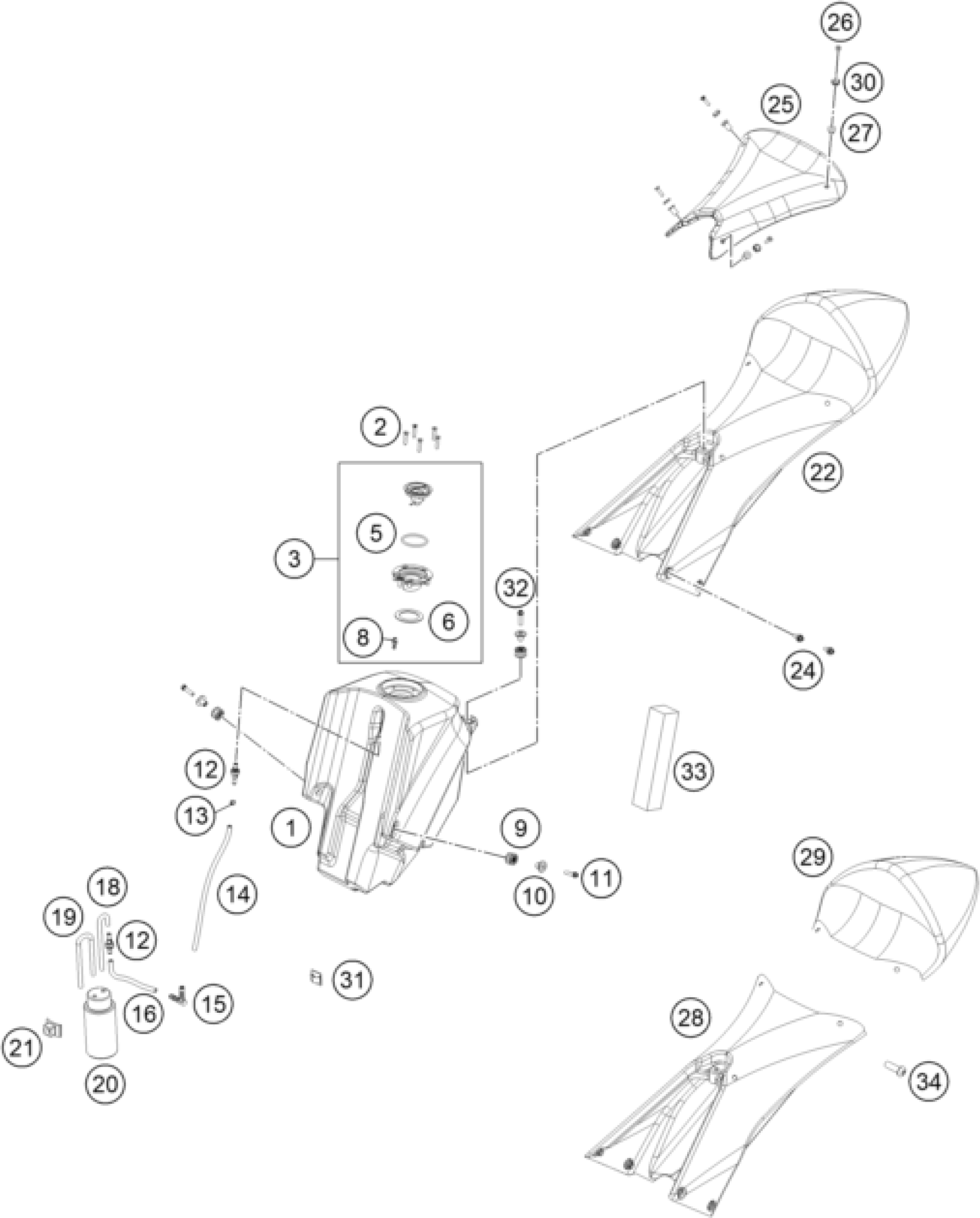

KTM RC 250 R 2013 TANK, SEAT Diagram

#

Description
Price

30

FAIRING WASHER

B3308005000

Unavailable

31

PLASTIC SOCKET SELF-ADHESIVE

B3307099000

Unavailable

24

HH collar screw M6x16 TX30

0025060166

$3.08

1

FUEL TANK PRIMED

R3307013000

Unavailable

2

COUNTERSUNK SCREW ISA25 M5X20

0019050201

$2.05

3

FUEL CAP CPL.

B3307908044

Unavailable

12

VALVE F. TANK BREATHING 09

78007019000

Unavailable

13

CLAMP OETIKER 8.6MM

76007013090

$1.49

14

VENTILATION HOSE 415MM

B3307090050

Unavailable

15

ANGLE PIECE

76307029000

Unavailable

16

VENTILATION HOSE 160MM

B3335090050

Unavailable

19

VENTILATION HOSE 220MM

B3335090070

Unavailable

18

VENTILATION HOSE 280MM

B3307090060

Unavailable

20

EXPANSION TANK 250CC

B3307090000

Unavailable

21

MOUNTING BASE

B3307090010

Unavailable

22

TAIL FACTORY SPEC. 700GR.

B3307001000

Unavailable

25

SEAT

B3307003000

Unavailable

26

COUNTERSUNK SCREW ISA25 M5X20

0019050201

$2.05

27

blind plug nut M5 WN16A

60008008050

$3.73

5

O-RING 44,45X3,53 VITON

M3207009000

Unavailable

6

FUEL CAP GASKET

B3307014002

Unavailable

8

VACUUM CONECTION M6/3MM '97

58336020190

$5.23

9

TANK MOUNT RUBBER

B3307027000

Unavailable

10

TANK MOUNT COLLAR BUSH

B3307014000

Unavailable

11

HH collar screw M6x25 TX30

0025060256

$3.08

28

TAIL FRONT PART

R3307001000

Unavailable

29

TAIL REAR PART 300 GR.

R3307001050

Unavailable

32

HH collar screw M6x30 TX30

0025060306

$3.08

33

FUEL TANK FOAM

SB907013050

Unavailable

34

FLAT HEAD SCREW ISO7380 M6X20

0738060201

$1.49
