SWING ARM

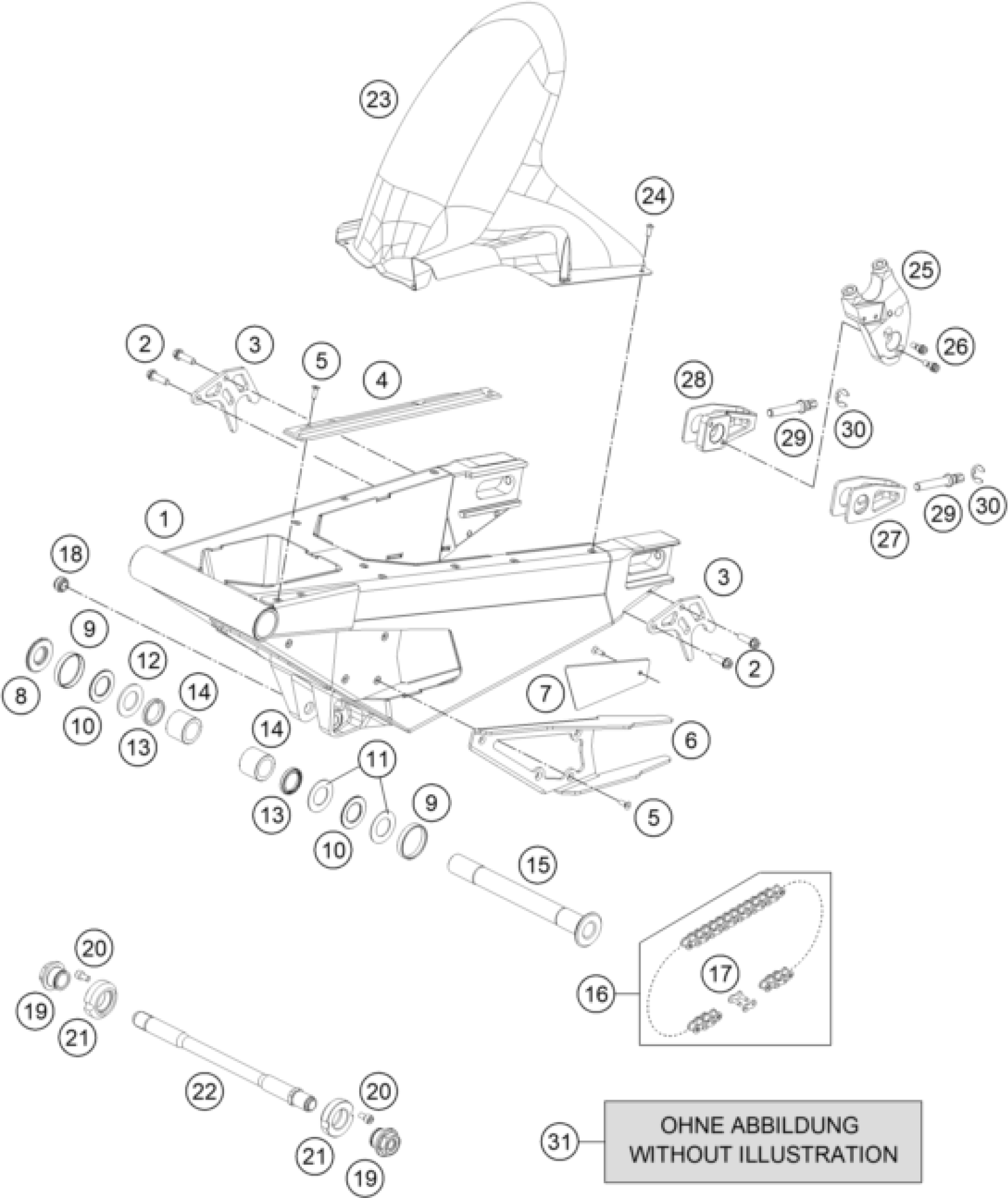

KTM RC 250 R 2013 SWING ARM Diagram
#
11
BEARING AS 2035
GP2040430000
Unavailable
3
REAR STAND SUPPORT
B3304040000
Unavailable
12
BEARING WASHER 1,6 MM
B3304039016
Unavailable
1
SWING ARM AL BRUSHED
B330400110001
Unavailable
4
TOP CHAIN GUIDE
M3204411000
Unavailable
5
FLAT HEAD SCREW DIN7991 M4X12
0991040123
Unavailable
6
BOTTOM CHAIN GUIDE
M3204412000
Unavailable
7
INNER FLAT CHAIN GUIDE
M3204413000
Unavailable
8
COLLAR FLANGE BUSH
B3304038000
Unavailable
9
DUST SEAL SWING ARM BEARINGS
M3204033000
Unavailable
10
BEARING AXK 2035
GP2040420000
Unavailable
12
BEARING WASHER 1,8 MM
B3304039018
Unavailable
12
BEARING WASHER 2,0 MM
B3304039020
Unavailable
12
BEARING WASHER 2,2 MM
B3304039022
Unavailable
12
BEARING WASHER 2,4 MM
B3304039024
Unavailable
13
DUST SEAL G20X28X4
GP2040440000
Unavailable
14
BEARING RNA 6902
GP2040410000
Unavailable
15
COLLAR FLANGE SWING ARM PIVOT
B3304037000
Unavailable
16
CHAIN REGINA 415
M3210065000
Unavailable
17
CLOS. LINK F.REGINA 415-SPRING
M3210066000
Unavailable
17
CLOS. LINK F.REGINA 415-RIVET
M3210066100
Unavailable
19
NUT FOR SWING ARM PIVOT
B3303083000
Unavailable
21
PIVOT ADJUSTMENT +/- 0MM
B3303090000
Unavailable
22
SWING ARM AXLE
M3203081100
Unavailable
23
REAR FENDER 100GR.
M3204250000
Unavailable
24
BUTTON HEAD SCREW ISO7380 4X10
0738040103
Unavailable
25
REAR CALIPER BRACKET
B3304071200
Unavailable
27
CHAIN ADJUSTER L/S
GP3100220100
Unavailable
28
CHAIN ADJUSTER R/S
B3304072100
Unavailable
29
CHAIN ADJUSTER BOLT
B3310020000
Unavailable
30
CIRCLIP ST8
040679908
Unavailable
31
REAR FENDER ROOKIES
R3304050000
Unavailable
31
SWING ARM PROTECTION L/S 145GR
R3304050010
Unavailable
31
SWING ARM PROTECTION R/S 205GR
R3304050020
Unavailable
31
CABLE CLIP SELF ADHESIVE
GP3113030000
Unavailable
