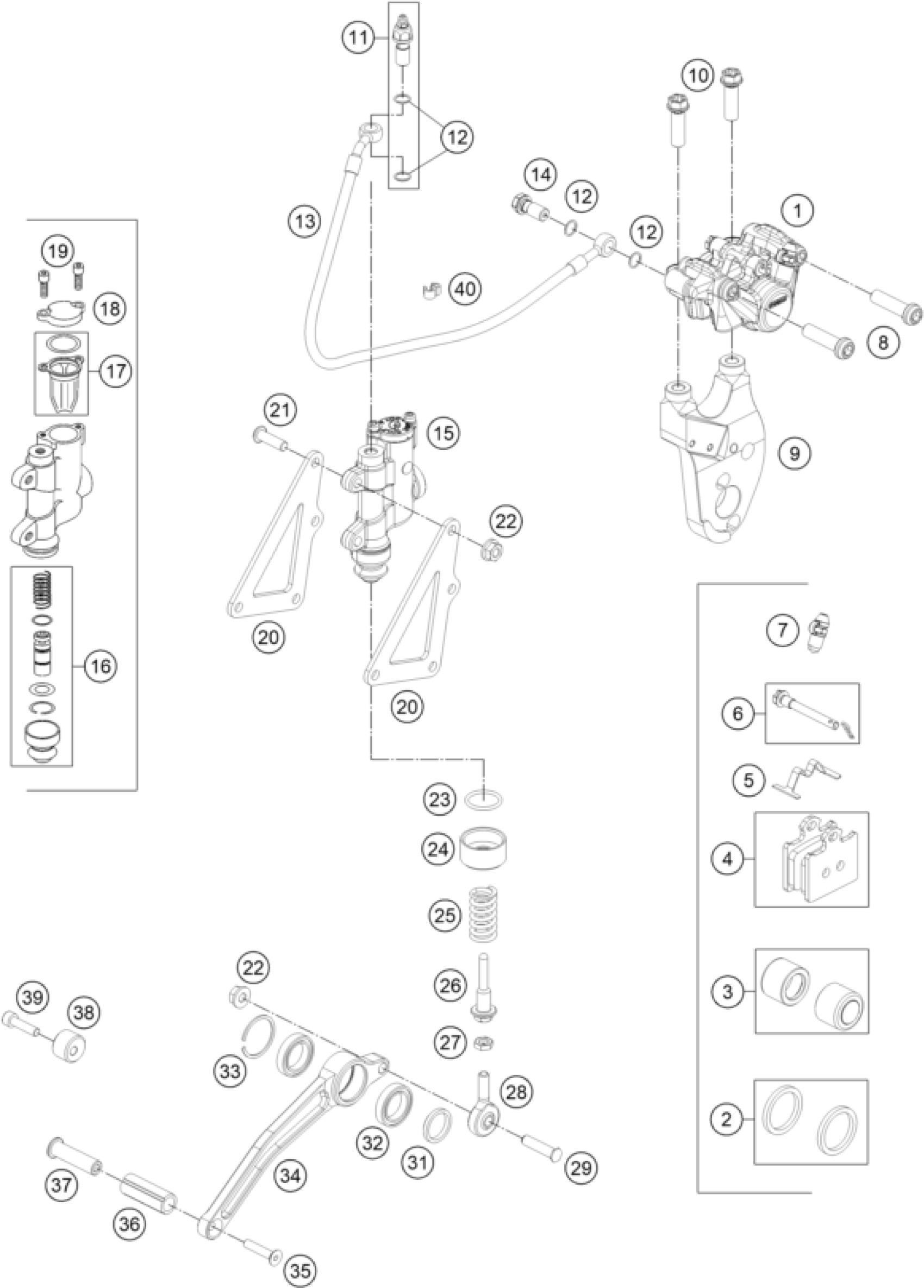

KTM RC 250 R 2013 REAR BRAKE CALIPER Diagram

#

Description
Price

1

BREAK CALIPER REAR CPL. 2011

47013080300

Unavailable

2

REP. KIT SEAL. RINGS REAR 2011

47013081100

Unavailable

3

REPAIR KIT BRAKEPISTON 2011

47013083200

Unavailable

4

BRAKE PADS REAR 85 SX 2011

47013090300

Unavailable

5

RETAINING SPRING 85 SX 2011

47013018000

Unavailable

6

SPECIAL SCREW WITH SPLINT PIN

47013092000

Unavailable

7

BLEEDER SCREW M8X1

47013085000

Unavailable

8

SPECIAL SCREW CALIPER M8X30

47013084000

Unavailable

9

REAR CALIPER BRACKET

B3304071200

Unavailable

10

HH collar screw M8x25

0025080256

Unavailable

11

BLEEDER SCREW CPL.

72032064000

Unavailable

12

SEAL RING CU DIN7603- 8X12X1

0603082121

Unavailable

13

REAR BRAKE HOSE

B3313002000

Unavailable

14

Hollow screw, brake cylinder 0

47013025000

Unavailable

15

FOOT BRAKE CYL.R. CPL. D=11 05

47013060200

Unavailable

17

GASKET CYLINDER COVER REAR 03

47013063000

Unavailable

18

CYLINDER COVER REAR 85 SX 03

47013062000

Unavailable

19

AH.SCREW DIN0912-M 4X10

0912040103

Unavailable

20

HOLDER BRACKET REAR MC

B3313051000

Unavailable

21

HH collar screw M6x25 TX30

0025060256

Unavailable

22

Self locking nut M6 - 10

56509064100

Unavailable

23

O-RING 17X2,5

0770017025

Unavailable

24

TOP BRAKE SPRING SUPPORT

B3313053000

Unavailable

25

REAR BRAKE SPRING

GP3320120100

Unavailable

26

PUSH ROD REAR BRAKE

B3313056000

Unavailable

27

Hex. nut DIN 934 M6

0934060003

Unavailable

28

SWIVEL HEAD KA6 03

54813055000

Unavailable

29

PIN

B3313055000

Unavailable

31

SPACER BRAKE LEVER

GP303211000

Unavailable

32

BEARING BRAKE LEVER

GP303204000

Unavailable

33

Circlip for shift

GP303207000

Unavailable

34

REAR BRAKE LEVER

B3313050000

Unavailable

35

FLAT HEAD SCREW DIN7991-M 5X25

0991050253

Unavailable

36

RUBBER PEDAL

GP303209000

Unavailable

37

BRAKE LEVER BUSHING

GP303208000

Unavailable

38

EXCENTRIC CAM REAR BRAKE LEVER

RC3130230000

Unavailable

39

AH SCREW DIN0912-M 5X12

0912050123

Unavailable

40

CLIP 5/7 MM 06

60111094000

Unavailable

16

REP. SET PISTON REAR D=11 2003

47013061000

Unavailable
