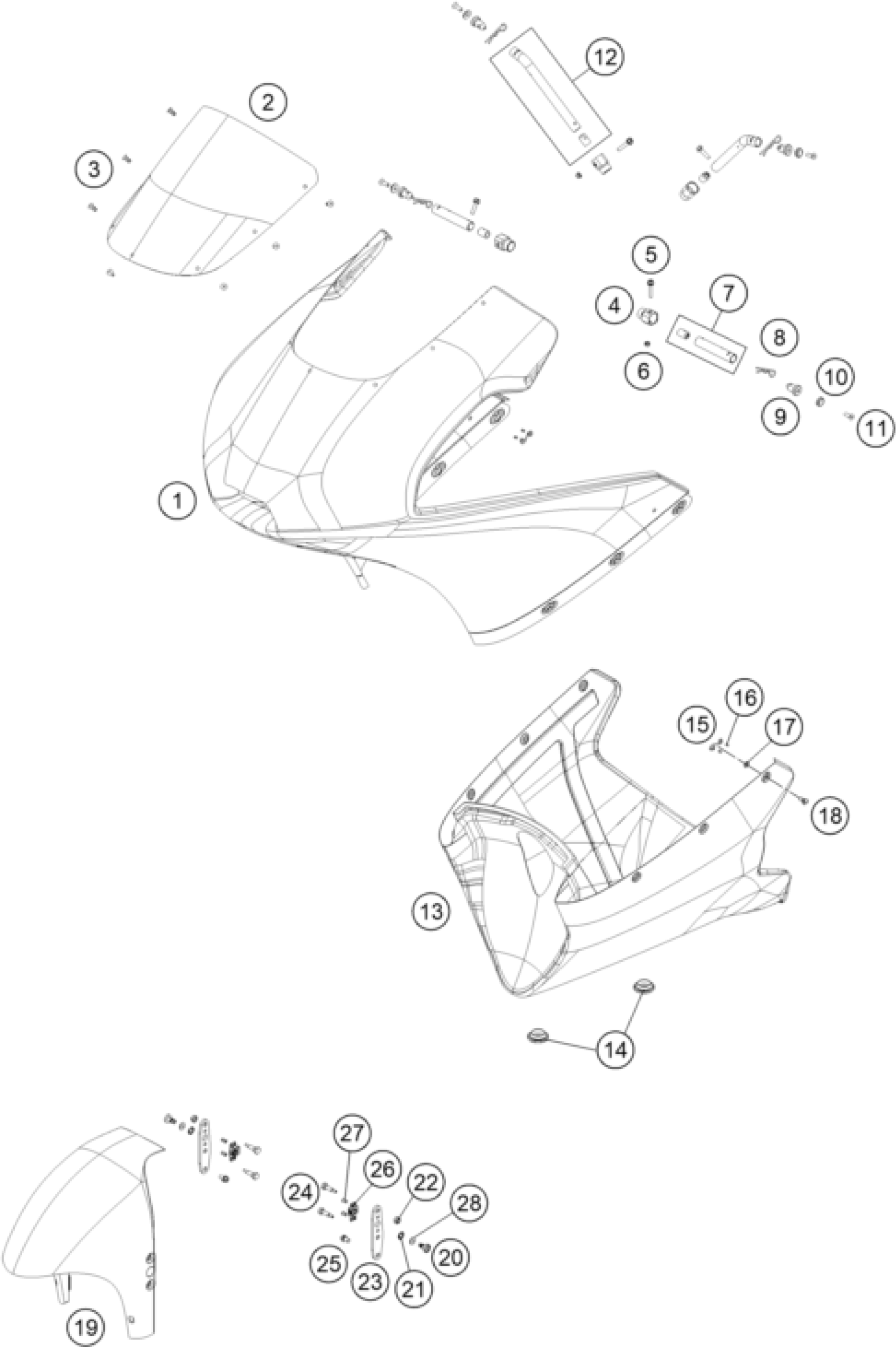

KTM RC 250 R 2013 MASK, FENDERS Diagram

#

Description
Price

4

SCREW SUPPORT

B3308010100

Unavailable

5

HH COLLAR SCREW M5X25 ISA30

0025050256

$1.49

6

Self locking nut DIN 985 M5

0985050003

$2.05

7

FAIRING SUPPORT BOTTOM

M3308008000

Unavailable

8

SPLINT 2MM GALVANIZED

GP3070150000

Unavailable

9

PIN

B3308007003

Unavailable

10

FAIRING WASHER

B3308005000

Unavailable

11

COUNTERSUNK SCREW M5X16 ISA25

0019050161

Unavailable

12

FAIRING SUPPORT TOP CPL.

B3308007000

Unavailable

13

BOTTOM FAIR. FACT.SPEC. 550GR.

B3308002000

Unavailable

16

POP RIVET 2,4X8MM

GP3070140000

Unavailable

17

RETAIN WASHER FASTENER 8MM

GP3070120000

Unavailable

18

QUICK FASTENER 8MM

GP3070110000

Unavailable

19

FRONT FENDER CPL.

B3301050000

Unavailable

20

QUICK RELEASE CONNECTOR

B3301053004

Unavailable

21

RETAINING WASHER

B3301053005

Unavailable

23

FRONT FENDER BRACKET

B3301051001

Unavailable

24

SPECIAL SCREW M6

B3301051003

Unavailable

25

HH collar screw M6x10 TX30

0025060106

$3.08

26

DZUS RIVET PLATE RECEPACLE

SB908081000

Unavailable

27

BLIND RIVET 3,3X9,7 GROOVED 04

54806108052

$2.05

1

TOP FAIRING FACT. SPEC. 650GR.

B3308001000

Unavailable

1

TOP FAIRING

R3308001000

Unavailable

13

BOTTOM FAIRING

R3308002000

Unavailable

22

Self lock. nut DIN985-M6-A2

0985060003

$2.05

28

DZUS SPACER BLACK PANEX

SB908084050

Unavailable

2

WIND SCREEN

B3308004000

Unavailable

3

PLASTIC CAP FOR M6 03

60003088000

$1.49

15

SPRING QUICK FASTENER 8MM

GP3070130000

Unavailable

14

PLUG FOR WATER DRAINAGE

SB908028055

Unavailable
