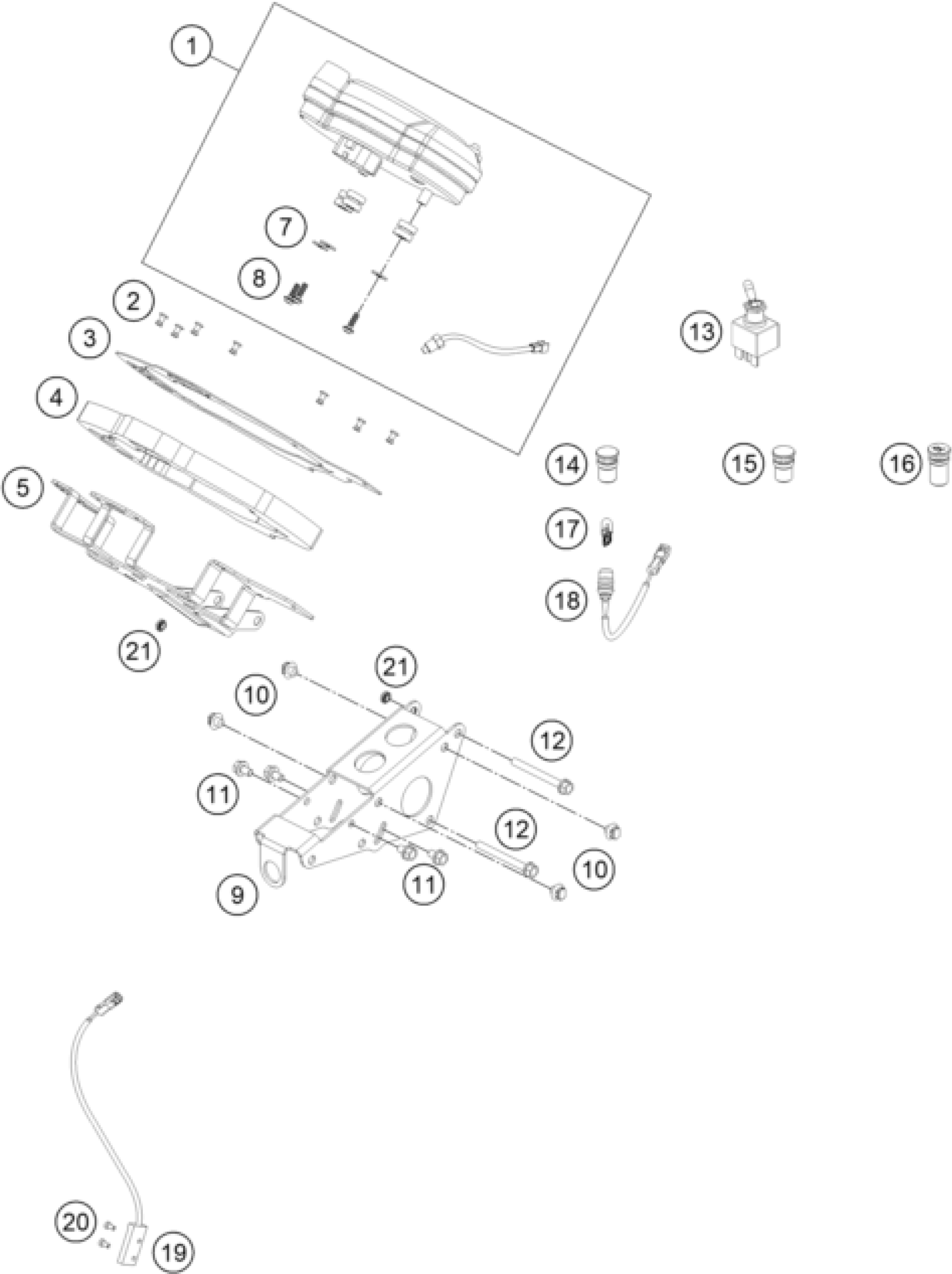

KTM RC 250 R 2013 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description
Price

1

DASHBOARD CPL.

B3314069000

Unavailable

2

BLIND RIVET 3,3X9,7 GROOVED 04

54806108052

Unavailable

3

STIFFENING PLATE

B3314004000

Unavailable

4

FOAM PLATE

B3314003000

Unavailable

5

DASH SUPPORT

B3314002001

Unavailable

7

WASHER DIN9021-A 4,3

0021040003

Unavailable

8

EJOT Delta PT K40x12

0081040121

Unavailable

9

CONSOLE

B3314001001

Unavailable

10

CABLE TIE CLAMP

B3311090000

Unavailable

11

HH COLLAR SCREW M 5X12 WS=6

0014050123

Unavailable

12

HH COLLAR SCREW M 5X50 WS=8

0015050503

Unavailable

13

SWITCH ON/OFF RALLYE 03

58511069100

Unavailable

14

FLASHER INDICAT.LIGHT GREEN'98

58011024300

Unavailable

15

INDICATOR LIGHT EFI

81214085000

Unavailable

16

OIL INDICATOR LIGHT RED

58011025000

Unavailable

17

BULB 12V 2,3W (W2X4,6D)

49111425200

Unavailable

18

CABLE INDICATOR LIGHT

72014096000

Unavailable

19

SPEEDOMETER SENSOR

90114068000

Unavailable

20

SOCKET HEAD SCREW M4X8 DIN0912

0912040083

Unavailable

21

PRESS NUT M5

54603055052

Unavailable
