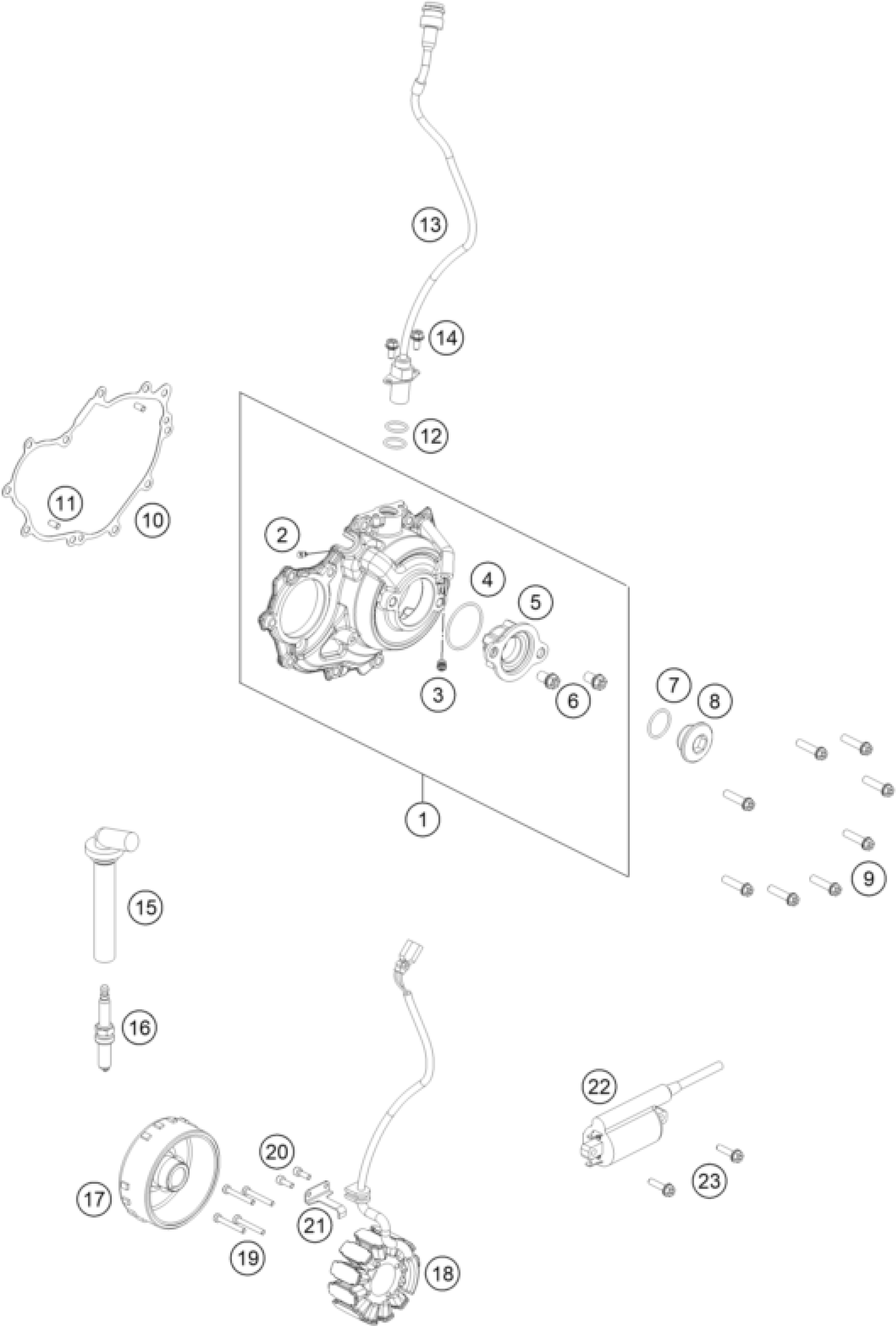

KTM RC 250 R 2013 IGNITION SYSTEM Diagram

#

Description
Price

23

HH collar screw M5x20 TX30

0025050206

Unavailable

1

IGNITION COVER CPL.

B3330202033

Unavailable

2

OIL JET ''60'' M4

80030058060

Unavailable

3

SCREW PLUG

59030296000

Unavailable

4

O-RING 38,00X2,00 NBR 70 SH

0770380020

Unavailable

5

HUB STATOR

M3230202101

Unavailable

6

HH collar screw M8x12 TX40

0025080126

Unavailable

7

o-ring 24.00x2.50 Viton

07700240251

Unavailable

8

FACTORY IGNITION COVER PLUG

7723000206030

Unavailable

9

HH collar screw M6x25 TX30

0025060256

Unavailable

10

IGNITION COVER GASKET

B3330040000

Unavailable

11

needle roller DIN 5402 5x9.8

0402050980

Unavailable

12

O-RING 15,00X2,00

0770015020

Unavailable

13

CRANKSHAFT SENSOR MM (SEN 8D)

M3239034000

Unavailable

14

HH collar screw M5x10 TX30

0025050106

Unavailable

15

SPARK PLUG

77339090000

Unavailable

16

PLUG NGK LMAR9AI - 8

77239093000

Unavailable

17

ROTOR EFI

B3339005000

Unavailable

18

STATOR

78939004000

Unavailable

19

HEX SOCKET SCREW DIN0912 M4X30

0912040303

Unavailable

20

AH SCREW DIN0912-M 5X12

0912050123

Unavailable

21

CABLE BRACKET

B3339004001

Unavailable

22

IGNITIONCOIL 07

75039006000

Unavailable
