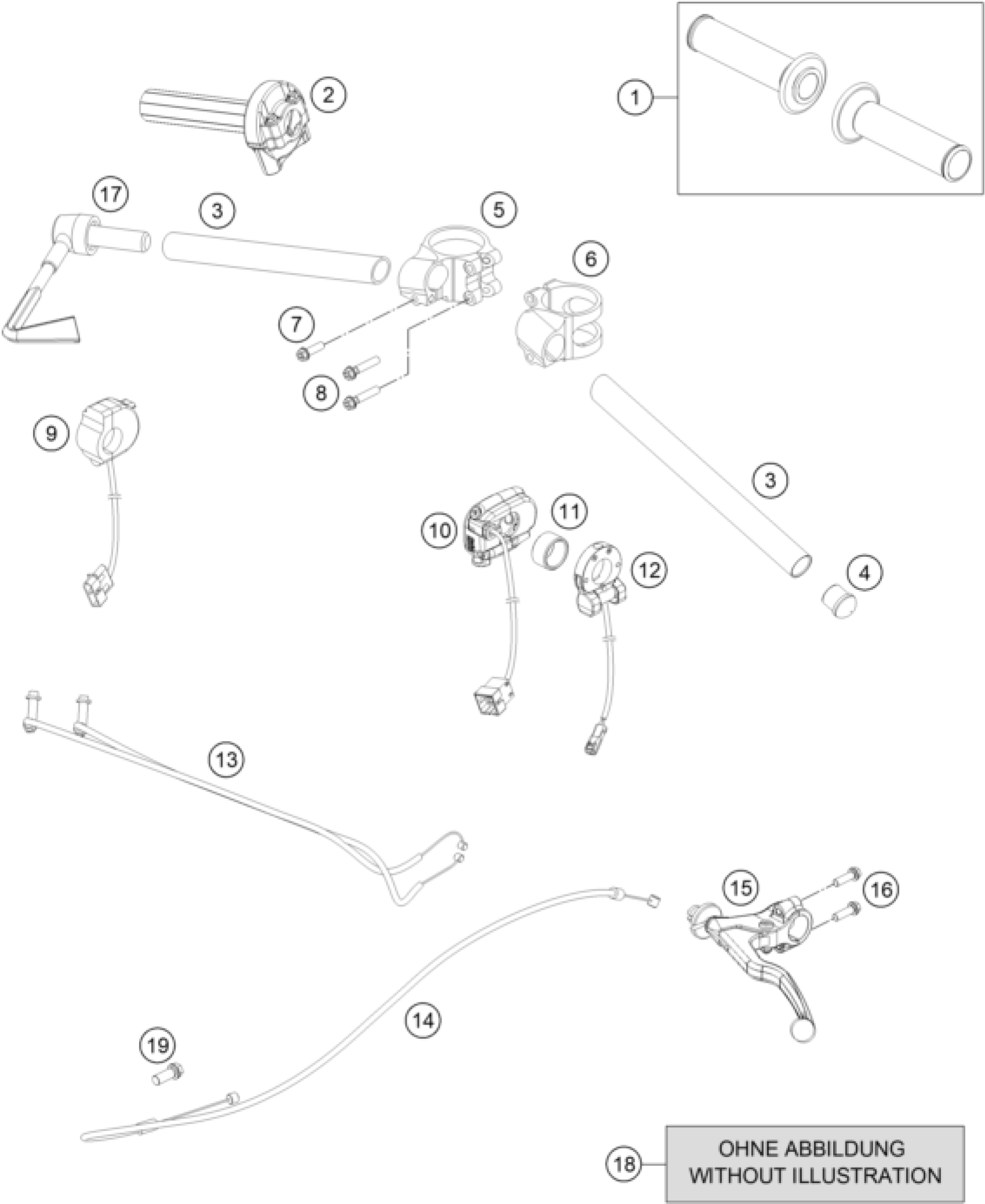

KTM RC 250 R 2013 HANDLEBAR, CONTROLS Diagram

#

Description
Price

16

HH collar screw M6x20 TX30

0025060206

$3.08

17

BRAKE LEVER PROTECTION

M3202004100

Unavailable

1

GRIP SET L/S + R/S

B3302021000

Unavailable

2

THROTTLE CPL.

B3302008000

Unavailable

3

HANDLE BAR TUBE

GP302003000

Unavailable

4

END-CAP HANDLEBAR

GP302004000

Unavailable

5

HANDLEBAR CLAMP R/S

B3302002100

Unavailable

6

HANDLEBAR CLAMP L/S

B3302001100

Unavailable

7

HH collar screw M6x20 TX30

0025060206

$3.08

8

HH collar screw M6x30 TX30

0025060306

$3.08

9

CONTROL SWITCH ON/OFF R/S CPL.

B3311200044

Unavailable

10

CONTROL SWITCH L/S

B3311100001

Unavailable

11

SPACER HANDLEBAR L/S

B3302003000

Unavailable

12

CONTROLLER F. INSTRUMENTS

69011071000

$90.28

13

THROTTLE CABLE SET

B3302093000

Unavailable

14

CLUTCH CABLE

M3402090000

Unavailable

15

CLUTCH LEVER CPL.

GP3020090000

Unavailable

18

SILIKON STICKER LC/PIT/QS

B3311099000

Unavailable

19

HH collar screw M8x20

0025080206

$2.05
