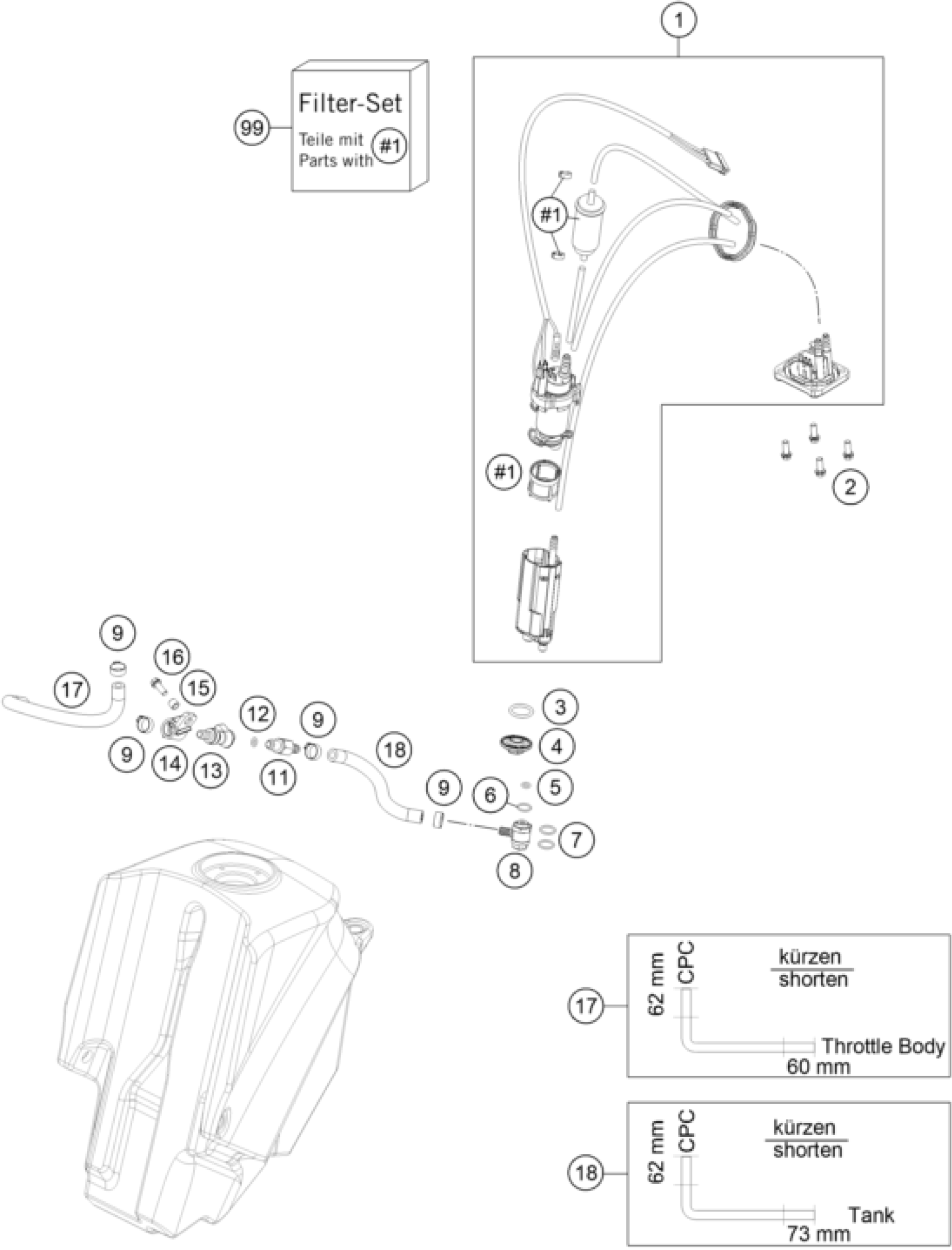

KTM RC 250 R 2013 FUEL PUMP Diagram

#

Description
Price

1

FUEL PUMP CPL. EXC

78107088000

Unavailable

2

HH collar screw M6x20 TX30

0025060206

Unavailable

3

O-RING 20,5X3X00 NBR 70

0770205030

Unavailable

4

NUT F. FUEL PUMP M12

78107088014

Unavailable

5

O-RING 6,00X2,00 NBR 70

0770060020

Unavailable

6

O-RING 12,5X3,00 NBR 70

0770125030

Unavailable

7

O-RING 14,00X1,78 NBR 70

0770140178

Unavailable

8

FUEL PUMP CONNECTOR CPL.

77707088017M01

Unavailable

9

VARIABLE ONE-EAR CLAMP 15,3MM

00050153706

Unavailable

11

Plug CPC black 05

5850701030030

Unavailable

12

O-ring VITON f. plug CPC 0

58507012000

Unavailable

13

Clutch CPC PLCD17005, black

5850701050030

Unavailable

14

HOSE HOLDER

69007017000

Unavailable

15

Bushing 6.1X9.2X7.5 08

69014014000

Unavailable

16

HH collar screw M5x16 TX30

0025050166

Unavailable

17

FUEL HOSE 90 ° 08

61007116000

Unavailable

99

FILTER KIT

81207090000

Unavailable

18

FUEL HOSE 90 ° 08

61007116000

Unavailable
