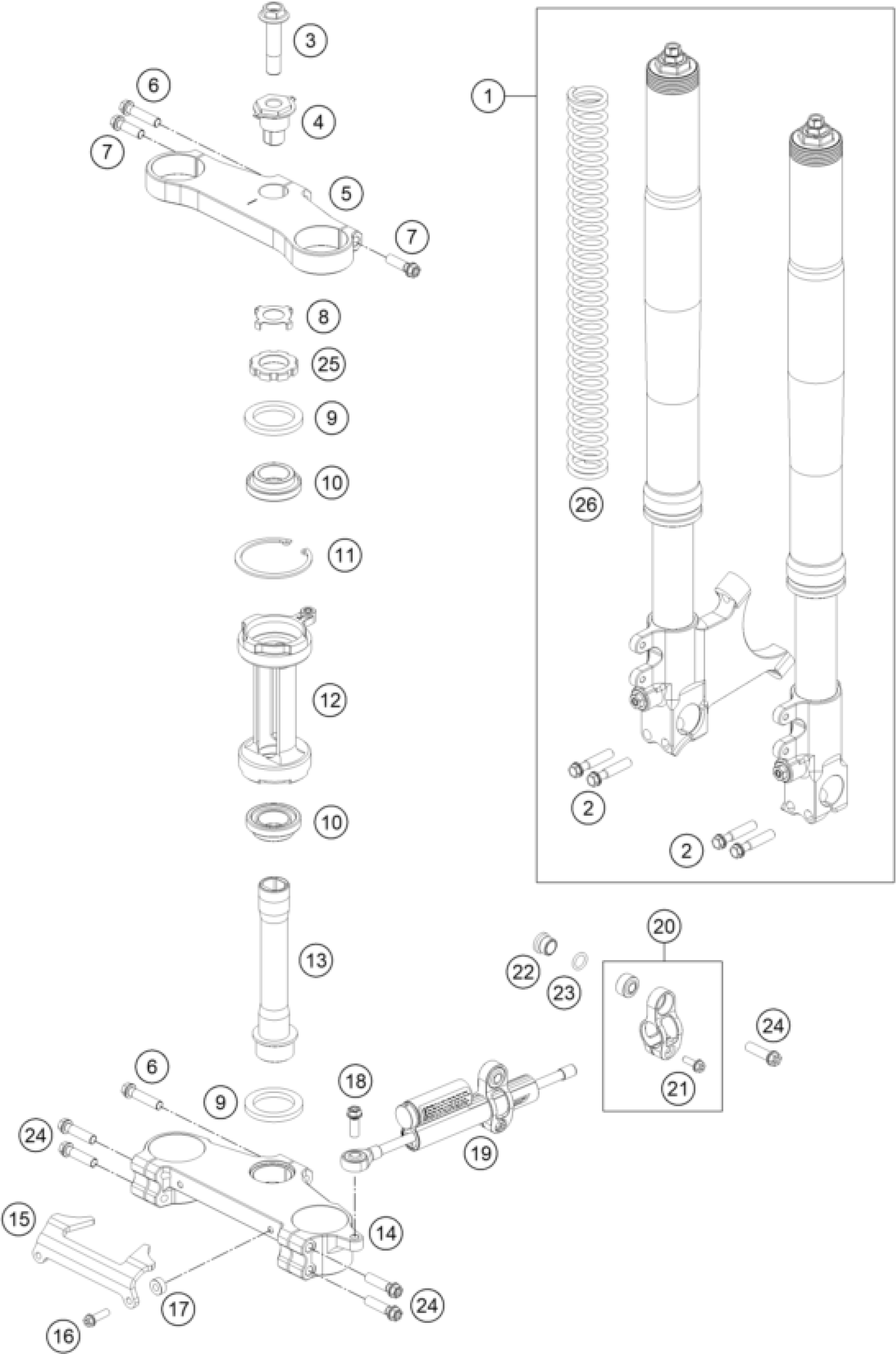

KTM RC 250 R 2013 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

26

FORK SPRING STIFFNESS K=5,5

70409002

Unavailable

1

FORK LEG SET WP RCMA 3548

07182M01

Unavailable

2

HH COLLAR SCREW M8X40 TX40

0025080406

$4.11

3

STEERING STEEM BOLT

B3301030000

Unavailable

4

STEERING STEEM INSERT

B3301002000

Unavailable

5

TRIPLE CLAMP TOP OFFSET 29

B3301017029

Unavailable

6

HH collar screw M8x35 TX40

0025080356

$4.11

7

HH collar screw M8x25

0025080256

$2.05

8

STOPPER STEERING NUT

GP301036000

Unavailable

9

STEERING DUST SEAL

M3301024000

Unavailable

10

BEARING SF05A26PX1 NTN

GP3010320200

Unavailable

11

Steering Insert Circlip

0472062200

$2.05

12

STEERING HEAD INSERT 0MM/0°

M3203020100

Unavailable

13

STEERING STEEM

B3301001100

Unavailable

14

TRIPLE CLAMP BOTTOM 29MM

B3301023029

Unavailable

15

STEERING STOP

B3301025000

Unavailable

16

HH collar screw M6x20 TX30

0025060206

$3.08

17

STEERING STOP SPACER

B3301026000

Unavailable

18

HH collar screw M8x20 TX40 SL

0025080206S

$2.05

19

STEERING DAMPER CPL.

16181M50S

Unavailable

20

CLAMP CPL. + SCREW 08

15080120S

$152.50

21

HH collar screw M5x16 TX30

0025050166

$2.05

22

STEERING DAMPER BUSH

B3301061000

Unavailable

23

O-RING 11,3 X2,4 SILICON

0770116241

$3.08

24

HH collar screw M8x30

0025080306

$3.08

25

CASTELLATED NUT

GP301035000

Unavailable

26

FORK SPRING STIFFNESS K=5,0

70409001

Unavailable

26

FORK SPRING STIFFNESS K=6,5

70409004

Unavailable

26

FORK SPRING STIFFNESS K=7

70409005

Unavailable

12

STEERING HEAD INSERT 0MM/0,5°

M3203020050

Unavailable

12

STEERING HEAD INSERT 0MM/1°

M3203020110

Unavailable

26

FORK SPRING STIFFNESS K=6

70409003

Unavailable
