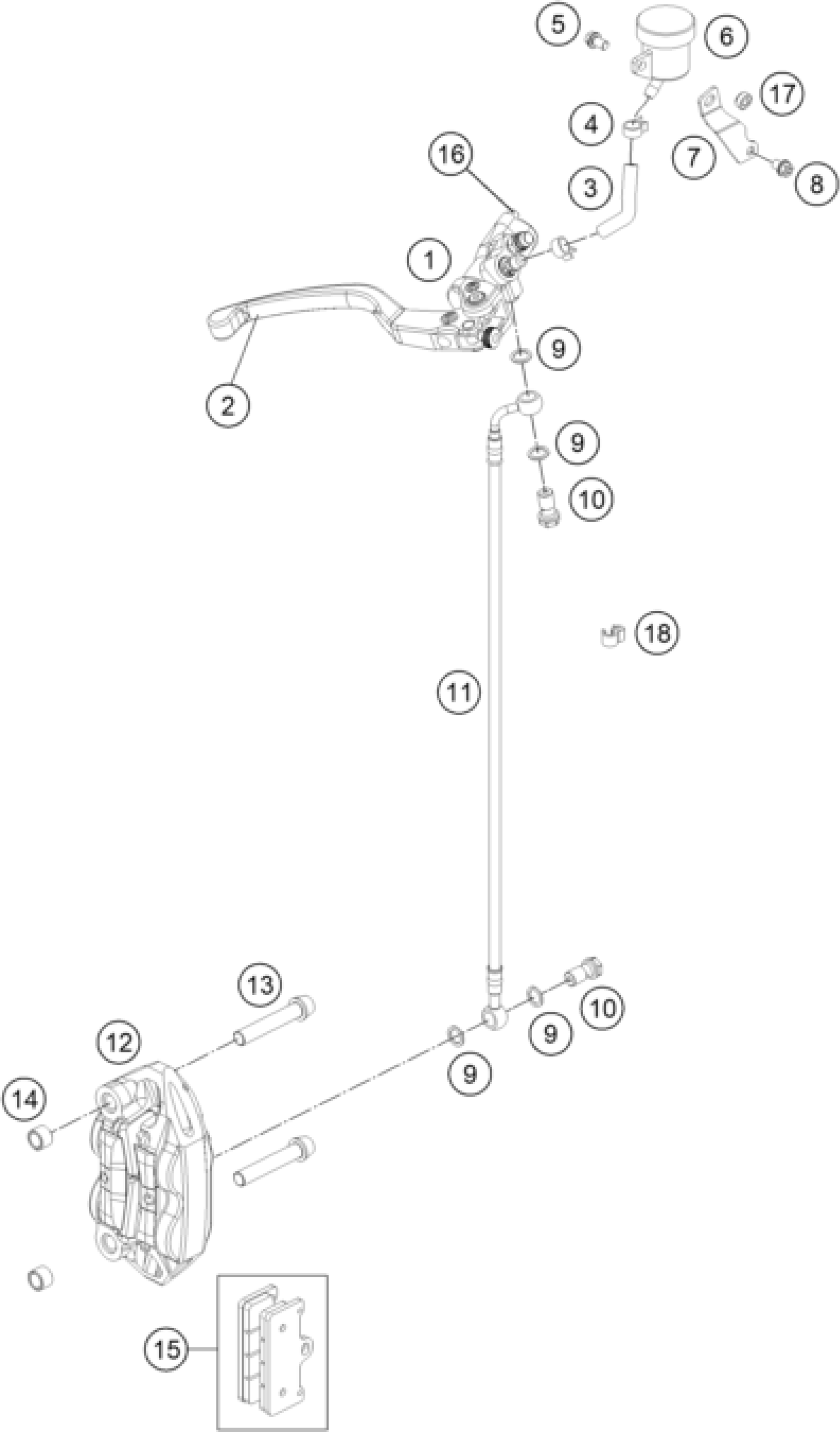

KTM RC 250 R 2013 FRONT BRAKE CALIPER Diagram

#

Description
Price

2

FRONT BRAKE LEVER

RC3130290050

Unavailable

3

HOSE FOR RESERVOIR 6X1,5

69013069001

$16.35

4

YDNAC-clamp 10101 (10.4MM)

58007017000

$3.08

5

HH collar screw M6x10 TX30

0025060106

$3.08

6

reservoir, rear cpl.

61013069000

$16.07

7

SUPPORT F. BRAKE FLUID RESERV.

B3313070001

Unavailable

8

HH collar screw M6x8 TX30

0025060086

$2.05

9

ALU SEAL 10X14X1

GP3130310000

Unavailable

10

banjo bolt M10x1x19 black

54813020100

$9.90

11

FRONT BRAKE TUBE

RC3130250000

Unavailable

13

AH collar screw M10x1.25x65 s-

0035100659

$5.23

14

CENTERING SLEEVE FRONT CALIPER

B3301054000

Unavailable

15

FRONT BRAKE PADS

RC3130400000

Unavailable

12

FRONT CALIPER BREMBO P4 32/36

RC3130280000

Unavailable

1

FRONT MASTER CYLINDER BREMBO

RC3130290000

Unavailable

16

HH collar screw M6x20 TX30

0025060206

$3.08

17

PRESS IN NUT M6 STEEL ZINC

54603055051

$2.05

18

CLIP 5/7 MM 06

60111094000

$3.08
