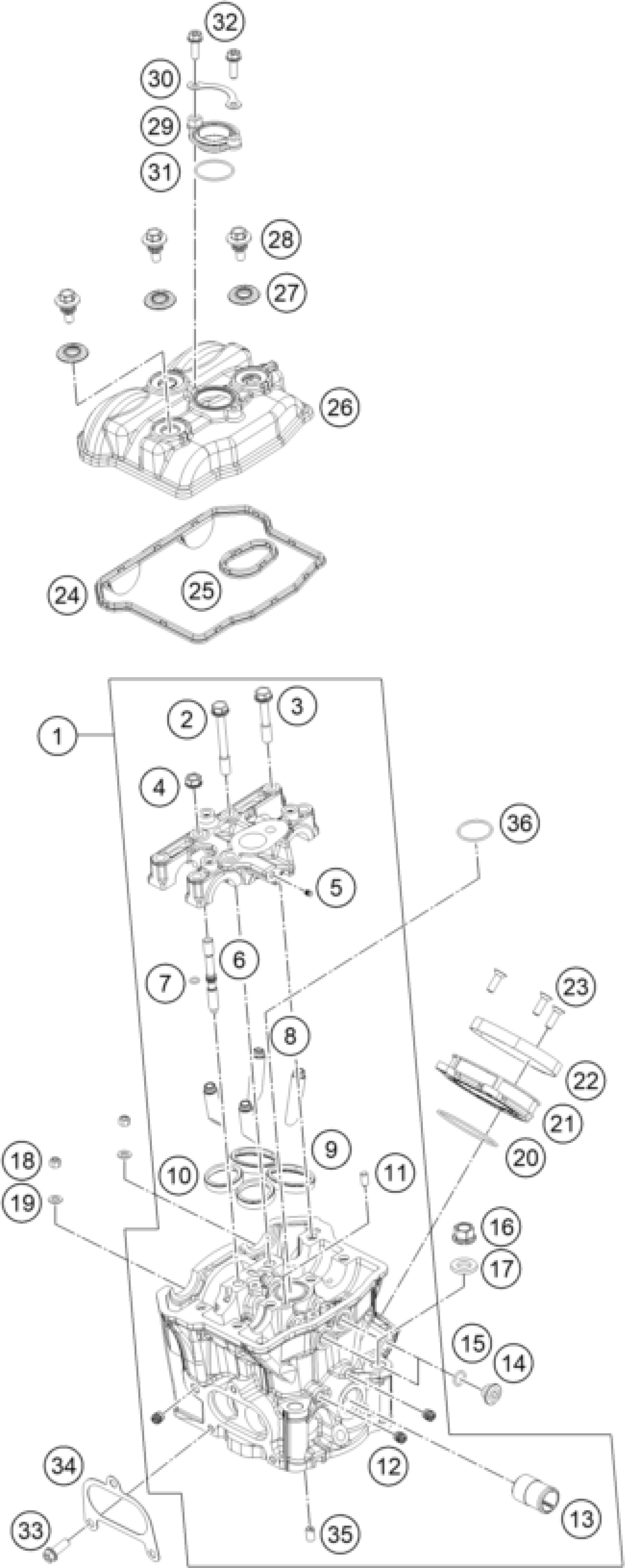

KTM RC 250 R 2013 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDERHEAD ASSY

B3336020000

Unavailable

2

FLANGED BOLT M7X1X54

77330067154

Unavailable

3

SCRW M7-1,0X38

77330067138

Unavailable

4

COLLAR NUT 7X1 05

77036024000

Unavailable

5

PLUG KVTLK950040

M3241070000

Unavailable

6

STUD M7X1X54

M3230067154

Unavailable

7

O-RING 5,0X1,2 NBR 70

0770050012

Unavailable

8

VALVE GUIDE INTAKE

M3236025000

Unavailable

9

VALVE SEAT RING EXHAUST

M3236022000

Unavailable

10

VALVE SEAT RING INTAKE

M3236021000

Unavailable

11

needle roller DIN 5402 5x9.8

0402050980

Unavailable

12

SCREW PLUG

59030296000

Unavailable

13

SCREW IN NOZZLE M20X1,5

58030010200

Unavailable

14

SCREW PLUG

77236080000

Unavailable

15

O-RING 9X1,5 NBR

0770090015

Unavailable

16

COLLAR NUT M10X1,25 SW13

77336088210

Unavailable

17

washer 19x10.5x2.5

77336089010

Unavailable

18

Self locking nut DIN 985 M5

0985050003

Unavailable

19

WASHER DIN0125-A 5,3

0125050003

Unavailable

20

O-RING 50X1,5 NBR70

0770500015

Unavailable

21

INTAKE FLANGE

M3336042000

Unavailable

22

HOSE CLAMP

M3236042044

Unavailable

23

INT. TORX FLAT HEAD M5X16 8.8

0019050163S

Unavailable

24

VALVE COVER GASKET

M3236053000

Unavailable

25

GASKET

M3236075000

Unavailable

26

VALVE COVER

B3336052000

Unavailable

27

RUBBER GASKET FOR SCREW 05

77036054050

Unavailable

28

VALVE COVER SCREW

77336054150

Unavailable

29

BOTTOM HOLDER PLATE IGN. COIL

B3339007101

Unavailable

30

HOLDER PLATE IGNITION COIL

B3339007100

Unavailable

31

O-ring 30x1.5 NBR 70

0770300015

Unavailable

32

HH collar screw M5x16 TX30

0025050166

Unavailable

33

HH collar screw M6x16 TX30

0025060166

Unavailable

34

GASKET EXHAUST FLANGE

M3236041000

Unavailable

35

THROTTLE VALVE M6X10X1,5

99038029009

Unavailable

36

O-RING 23,00X1,50 NBR 70

0770023015

Unavailable
