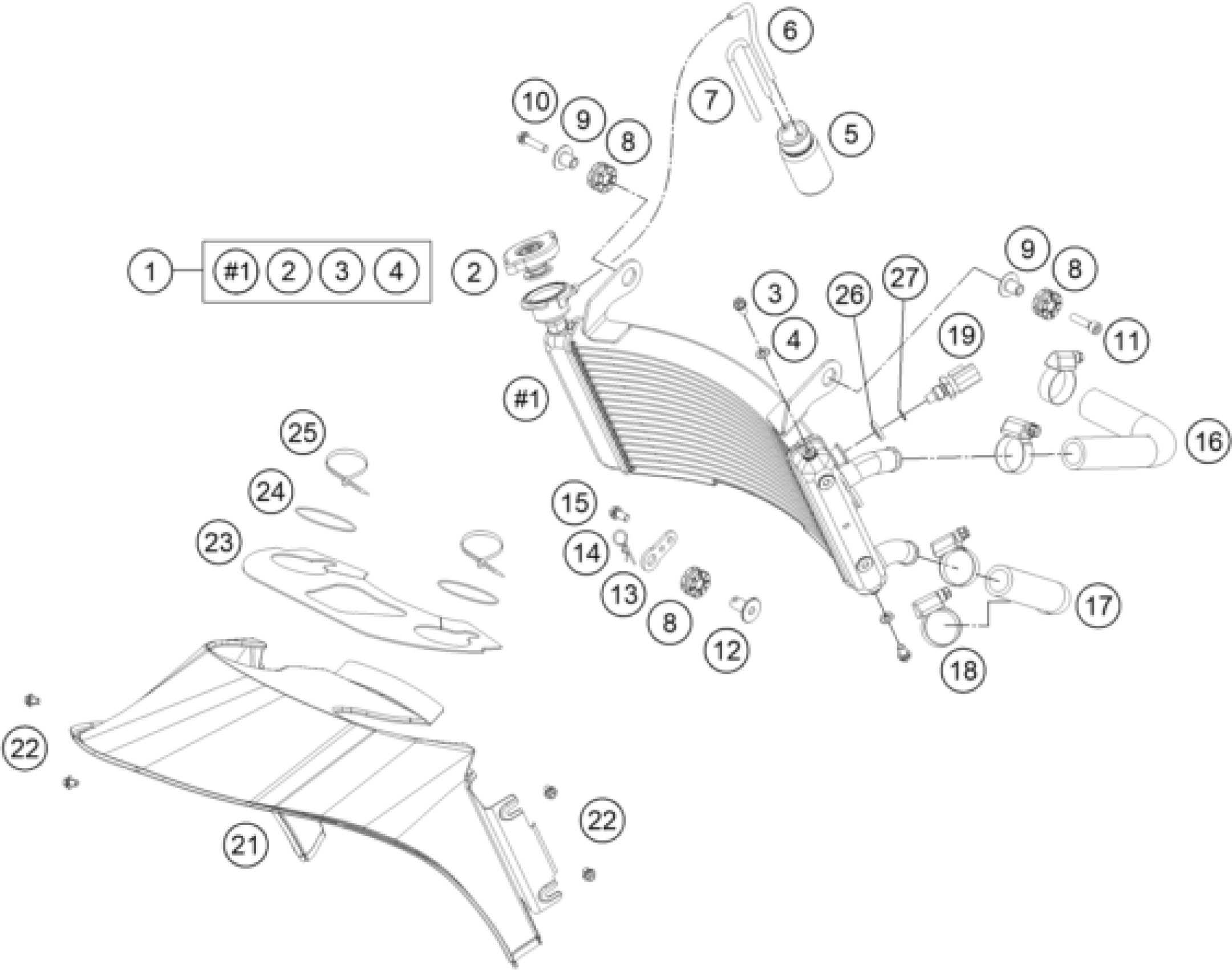

KTM RC 250 R 2013 COOLING SYSTEM Diagram

#

Description
Price

1

RADIATOR

B3335010000

Unavailable

2

RADIATOR CAP SMALL 20,3 PSI

58035016000

Unavailable

3

HH collar screw M6x10 TX30

0025060106

Unavailable

4

COPPER GASKET 6X12X2

0603061202

Unavailable

5

EXPANSION TANK

B3335065000

Unavailable

6

VENTILATION HOSE 160MM

B3335090050

Unavailable

7

VENTILATION HOSE 220MM

B3335090070

Unavailable

8

RUBBER DAMPER

GP3350120100

Unavailable

9

BUSH F. RADIATOR MOUNTING

B3335003000

Unavailable

10

HH collar screw M6x25 TX30

0025060256

Unavailable

11

AH SCREW DIN0912-M 6X25

0912060253

Unavailable

12

LOCATOR PIN

M3235012000

Unavailable

13

LOWER RADIATOR BRACKET

B3335013000

Unavailable

14

R-CLIP SMALL

B3306016000

Unavailable

15

HH collar screw M5x12 TX30

0025050126

Unavailable

16

WATER HOSE D19 / 90°

B3335014000

Unavailable

17

WATER HOSE D19 / 45°

B3335015000

Unavailable

18

Hose clamp GEMI 20-32

76235028000

Unavailable

19

TEMPERAT.-SENSOR WATER LC8 02

60011252000

Unavailable

21

RADIATOR DUCT

B3335100000

Unavailable

22

COLLAR SCREW M6X12 TX

0024060123

Unavailable

23

RADIATOR DUCT SEAL PLATE

B3335101000

Unavailable

26

O-RING 10X1,25 VITON

0770010125

Unavailable

27

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

25

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

24

O-RING 78,00X4,00 VITON

0770078040

Unavailable
