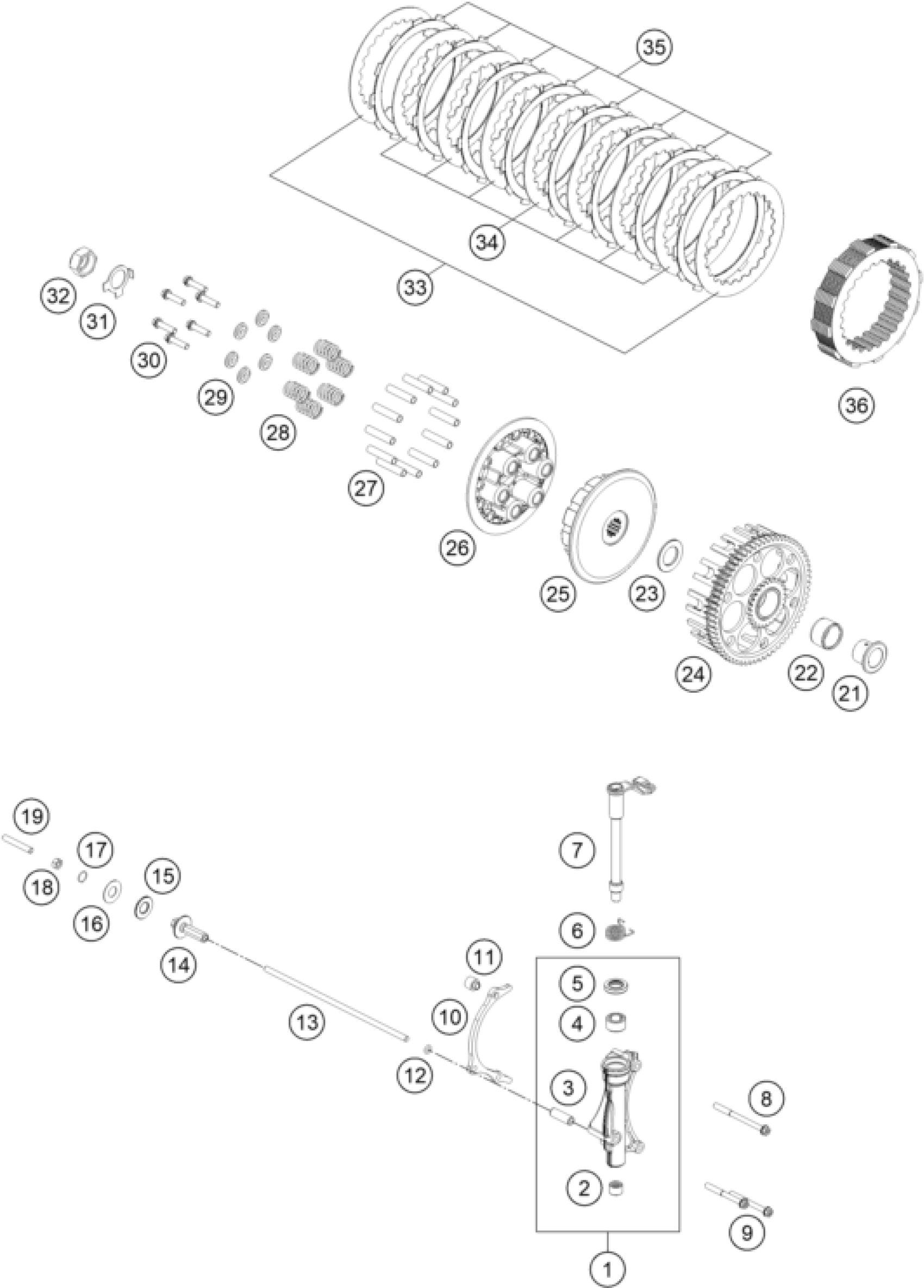

KTM RC 250 R 2013 CLUTCH Diagram
#
1
DISENGAGING CASE CPL.
M3232041033
Unavailable
2
NEEDLE SLEEVE HK 1010
54637096000
Unavailable
3
GUIDE SLEEVE
M3232041001
Unavailable
4
NEEDLE SLEEVE INA HK1512
0618152112
Unavailable
5
SHAFT SEAL RING 15X25X5
0760152505
Unavailable
6
RETURN SPRING
M3232046000
Unavailable
7
DISENGAGING SHAFT CPL.
B3332044033
Unavailable
8
HH COLLAR SCREW M6X75 TX30
0025060756
Unavailable
9
HH collar screw M6x55 TX30
0025060556
Unavailable
10
CHAIN FAIL. PROTECTION
M3236018100
Unavailable
11
DISTANCE SLEEVE
M3236018050
Unavailable
12
O-RING 6,00X2,00 NBR 70
0770060020
Unavailable
13
PUSH ROD
M3232058000
Unavailable
14
PRESSURE PIECE
M3232057000
Unavailable
15
AXIAL NEEDLE BEARING AXK 1226
54637097200
Unavailable
16
AXIAL WASHER AS1226 12X26X1
54637098200
Unavailable
17
CIRCLIP DIN7993-RW12
0993012000
Unavailable
18
Hex. nut DIN 934 M6
0934060003
Unavailable
19
THREADED PIN M6X42
M3232042000
Unavailable
21
BEARING SLEEVE
M3232096000
Unavailable
22
NEEDLE BEARING
50032095000
Unavailable
23
WASHER PRIMARY DRIVE
M3232097000
Unavailable
24
CLUTCH HUB W. PRIM.WHEEL T64
M3232001001
Unavailable
25
INNER CLUTCH HUB
77232002000
Unavailable
26
PRESSURE PLATE
77232003000
Unavailable
27
DRIVING SLEEVE D=7,95 L=38
77232004000
Unavailable
28
CLUTCH SPRING 200 07
52332005100
Unavailable
29
SPRING RETAINER 6,2X12X18X3,6
59032006000
Unavailable
30
HH collar screw M6x25 TX30
0025060256
Unavailable
31
SHEET METAL LOCK
77232018000
Unavailable
32
HEX-NUT M18X1,5
M3232019000
Unavailable
33
INTERMEDIATE DISC 1MM 2002
59032010100
Unavailable
34
INTERMEDIATE DISC 1,4MM 2002
59032010200
Unavailable
35
LINING DISC 2MM 04
59032011100
Unavailable
36
CLUTCH DISC PACKAGE
78132010033
Unavailable
